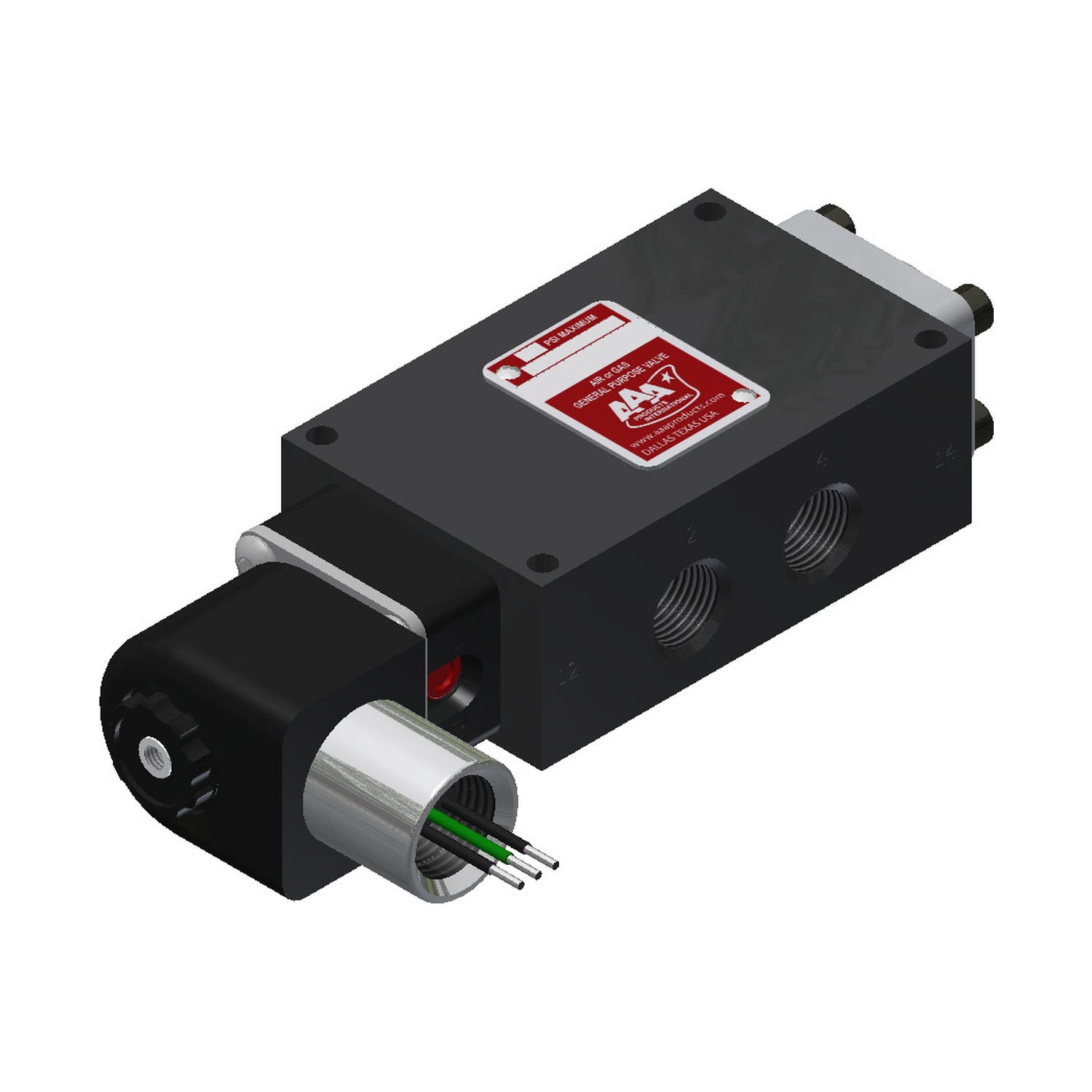

AAA Products ESO3X Explosion-Proof Solenoid Air Valve (3/8 in. NPTF, 2-Position Spring Return)
AAA Products ESO3X Explosion-Proof Solenoid Air Valve (3/8 in. NPTF, 2-Position Spring Return)
Description
The AAA Products ESO3X is a 3/8 in. NPTF side-ported, 2-position, spring-return solenoid air valve with an explosion-proof coil. It is supplied as a 4-way valve and can be converted to 3-way or 5-way service. The valve is internally piloted from port 1 and needs 50 to 150 psi supply; an external pilot option is available for lower pressure or vacuum work. The body is black anodized 6061-T6 aluminum with a hard-anodized spool and Viton seals.
- Port size: 3/8 in. NPTF, side ported
- Configuration: 4-way, 2-position, spring return
- Flow: 2.4 Cv (97.1 SCFM)
- Operating pressure: 50 to 150 psi (internal pilot)
- Coil: 30 mm explosion-proof; 120 V 60 Hz standard, 12 V DC, 24 V DC and 240 V 60 Hz available
- Approvals: FM and CSA, Class I Div. 1 Groups A-D, Class II Groups E-G, Class III
- Ambient temperature: -20 to 120 degrees F
- Materials: 6061-T6 anodized aluminum body, A380 aluminum end caps, Viton seals and seat
- Weight: 1.8 lb
Specifications
| Distributed By | JHFOSTER |
|---|---|
| Brand | AAA Products International |
| Series | ESO |
| Manufacturer Part Number | ESO3X |
| Selling Unit | Each |
| Country of Origin | United States |
