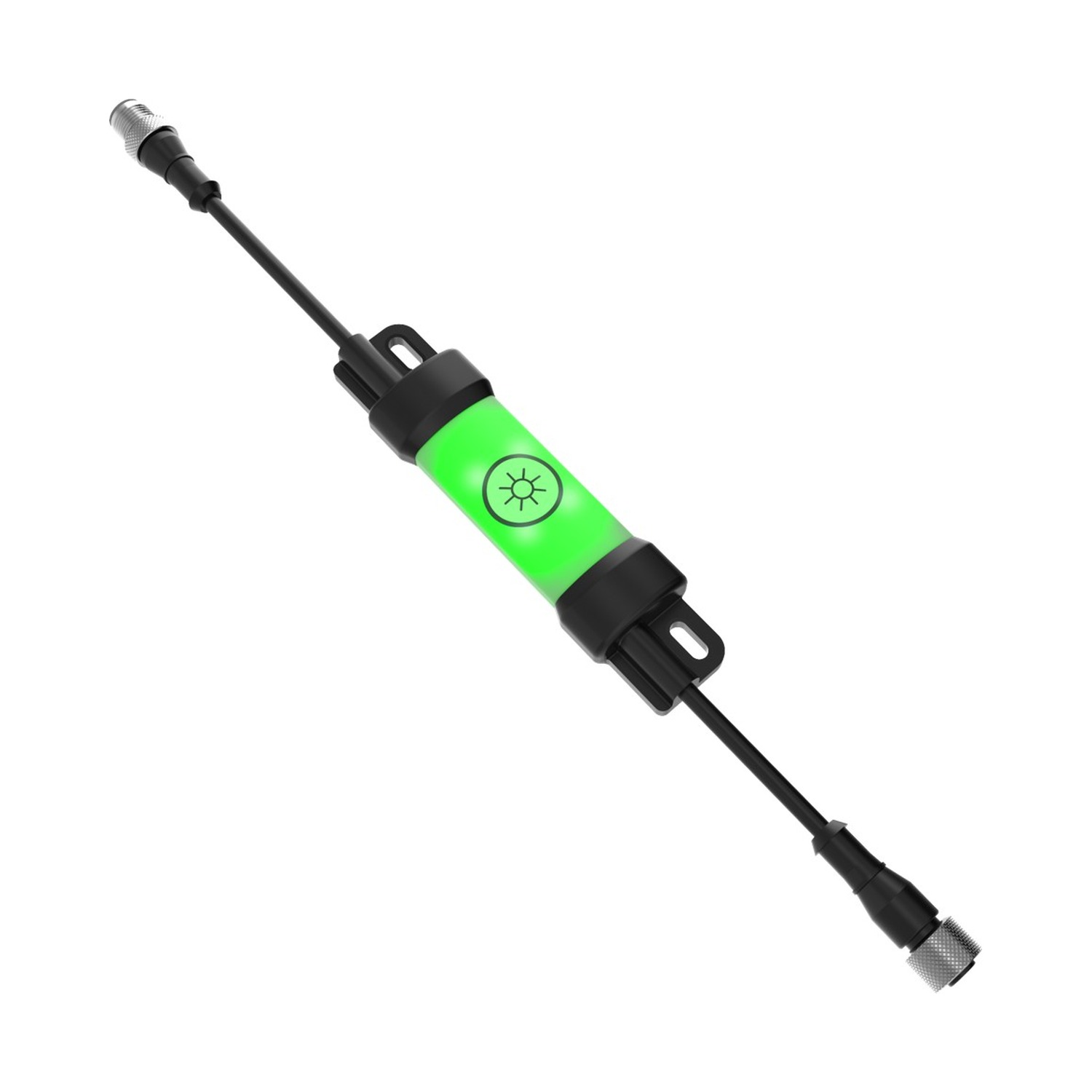

Banner Engineering LC15T In-Line Touch Switch
Banner Engineering LC15T In-Line Touch Switch
Description
The Banner Engineering LC15T is a sealed capacitive touch switch that wires in-line with DC-powered lights, indicators or other devices for on/off and PWM dimming control. A touch of the sensor’s face switches the connected load, and the switch’s own LED mirrors the load’s status. It is offered in red, green and blue versions and is built for washdown duty.
- Function: in-line capacitive touch switch, on/off and PWM control
- Supply voltage: 10 to 30 V DC
- Output current: 4 A maximum
- Indicator colors: red, green, blue
- Connection: 4-pin Euro/M12 quick disconnect or 150 mm pigtail
- Housing rating: IP66, IP67, IP68
Specifications
| Distributed By | Seltrol, Sensors Incorporated |
|---|---|
| Brand | Banner Engineering |
| Series | LC15T |
| Selling Unit | Each |
