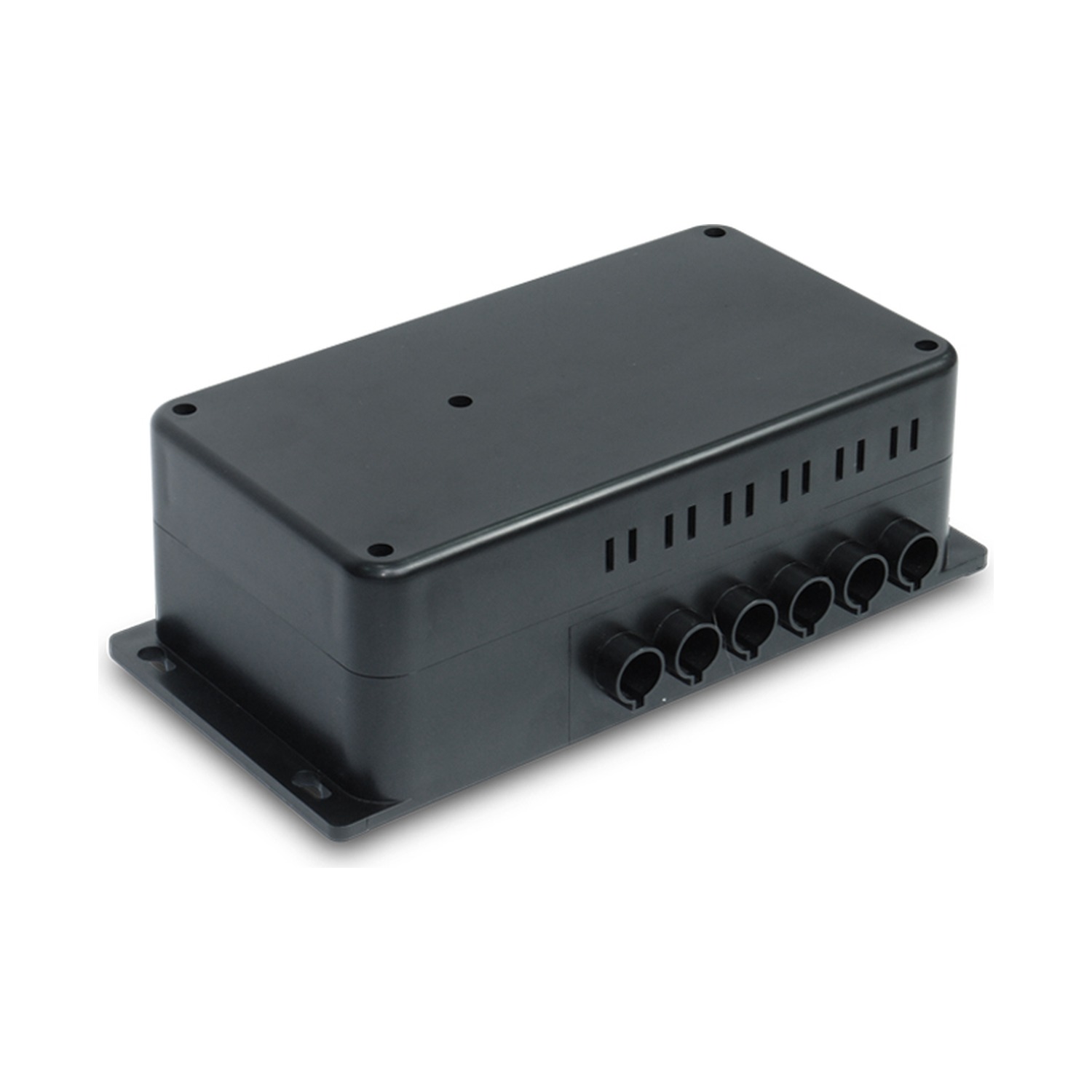

Moteck CB4M Series Control Box
Moteck CB4M Series Control Box
Description
Also designed for home bed, care bed and various furniture applications, the CB4M is able to drive up to four actuators at a time.
- Can operate w/ rechargeable batteries
- Input Voltage: 230/120 V AC & 50/60 Hz
- Control four actuators at a time
- Two maximum handset at a time
- Protection Level: IP 20
Made by Moteck, the CB4M is a powerful compact control box designed for care bed, home bed and other various furniture applications. Per one unit, this control box has the capability to drive up to four actuators simultaneously. Rechargeable batteries can be used to power this control box when AC voltage is not directly supplied.
Main Applications:
- Home Care
- Furniture
- 230 VAC/50 Hz or 120 VAC/60 Hz
- Handsets – HA, HC, HD, HF, HJ, H2N, HT, H3T
- Actuators – FD60
Certified:
- CISPR14-1, EN50366, EN55014-1, EN55014-2, EN60335-1, EN61000-3
Option:
CB4M (Standard type): No positioning function. Built-in charger function with 1.3Ah lead-acid batteries included.
CB4M-S (Synchronous type – Advanced): Synchronous movement for all 4 actuators. Support position display and memory function through hand control.
CB4M-B (Synchronous type – Basic): Synchronous movement for all 3 or 4 actuators. No support to position display and memory function.
Specifications
| Distributed By | Accu Tech USA |
|---|---|
| Manufacturer Name | Moteck |
| Series | CB4M |
| Selling Unit | Each |
| Country of Origin | Taiwan |
| Color | Black |
| Material | ABS Plastic |
| Subtype | Control Box |
| Input Voltage | 120/230 VAC |
| Supported Motor Type | Brushed DC |
| Communication Protocol | Wired |
