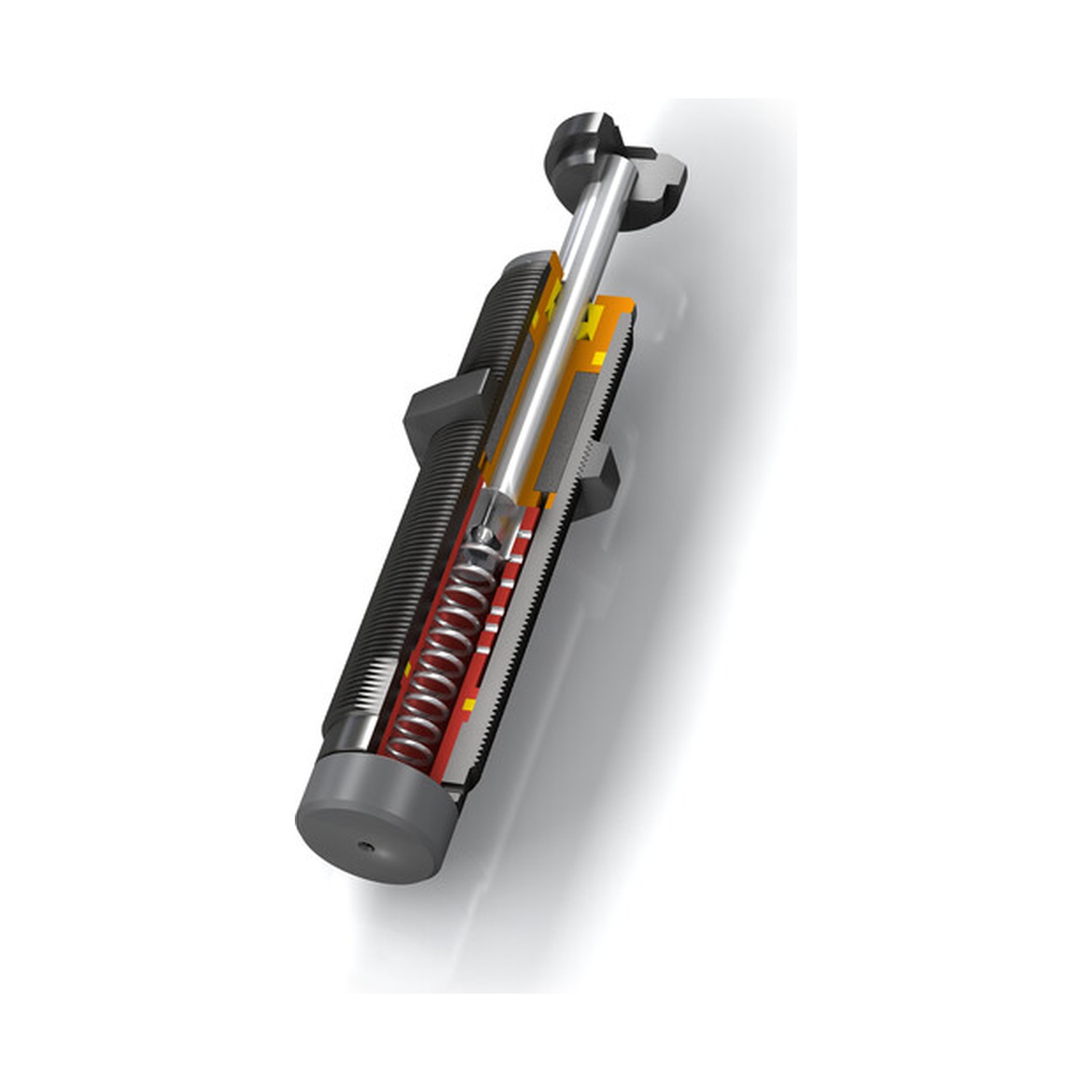

ACE Controls MA600 Adjustable Miniature Shock Absorber
ACE Controls MA600 Adjustable Miniature Shock Absorber
Description
The ACE Controls MA600 is an adjustable miniature industrial shock absorber that decelerates a moving load over a 1 in. stroke and brings it to a controlled stop. Damping is set with a stepless adjustment ring, so one unit covers a range of effective weights and impact speeds; the absorber ships pre-set in a neutral position. It uses a temperature-stable oil damping medium, has an integrated positive stop, and can be mounted in any position.
- Type: Adjustable, stepless
- Stroke: 1 in.
- Energy capacity: 600 in.-lb per cycle
- Effective weight range: 20 to 3,000 lb
- Impact velocity: 0.5 to 12 ft/s
- Operating temperature: 32 to 150 degrees F
- Body: Steel with corrosion-resistant coating
- Mounting position: Any
Specifications
| Distributed By | JHFOSTER |
|---|---|
| Brand | ACE Controls Inc. |
| Series | MA |
| Manufacturer Part Number | MA600 |
| Selling Unit | Each |
Resources
No resources available.
