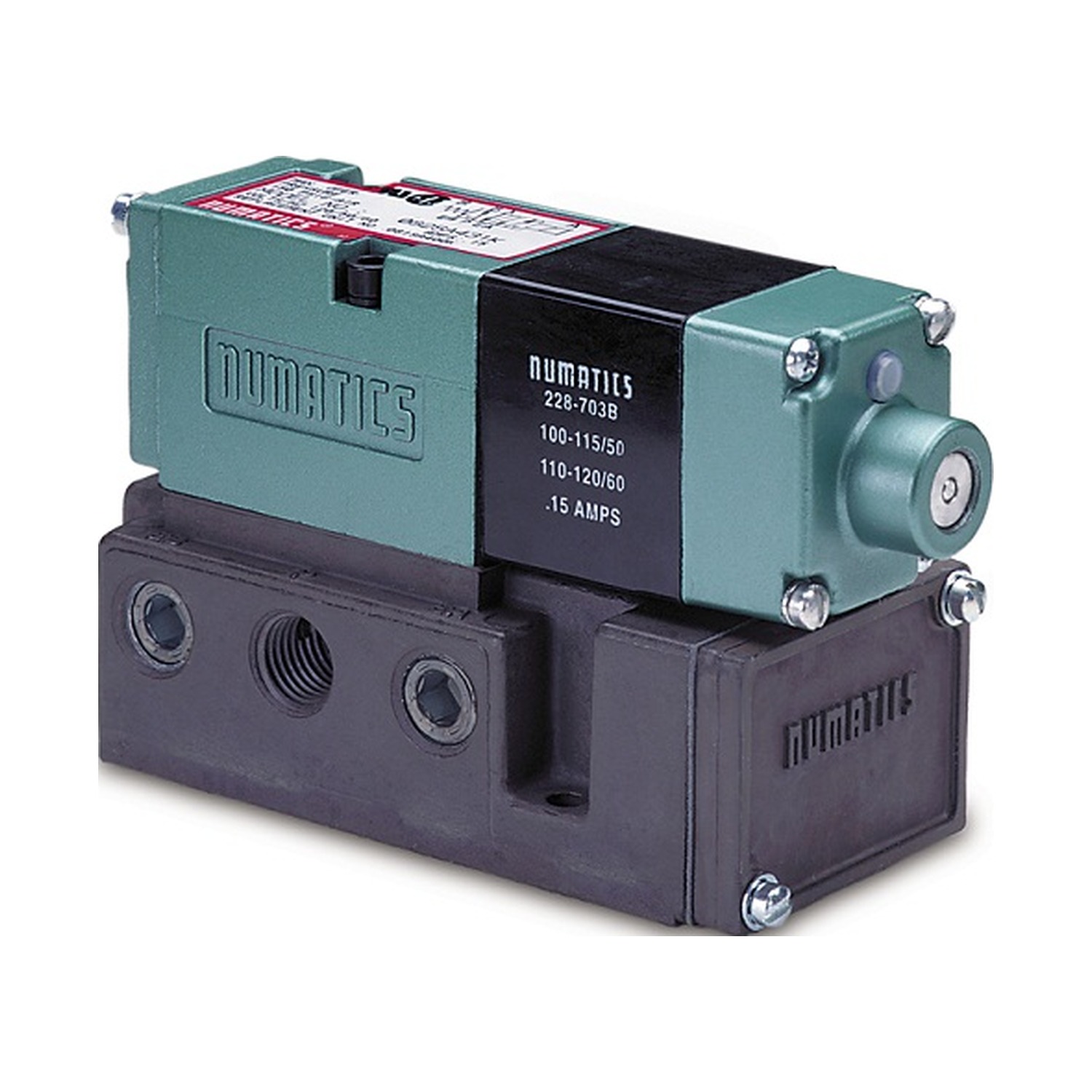

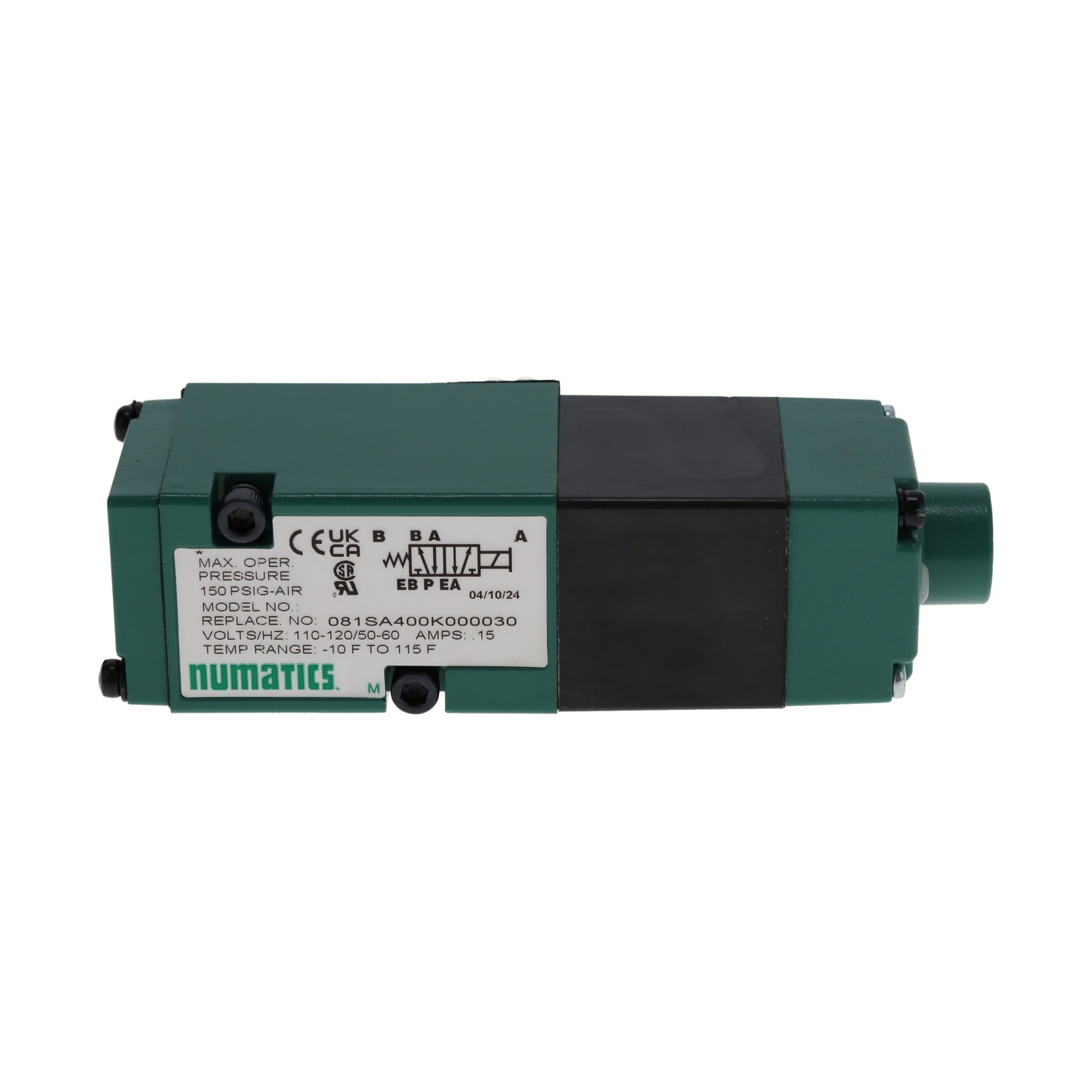

AVENTICS 081SA400K000030 Mark 8 Solenoid Valve, 5/2 Spring Return, 120 V AC
AVENTICS 081SA400K000030 Mark 8 Solenoid Valve, 5/2 Spring Return, 120 V AC
Notice: This product is subject to geographic restrictions and can only be sold within the following regions: MN, ND, SD, IA, NE, and select counties in WI. Have questions about availability in your area? Fill out our contact form to connect with an agent today.
Description
The Numatics Mark series are body-to-base plug-in solenoid valves: the valve unit lifts off its base or manifold without disturbing piping or wiring, which is why they are specified where downtime on a valve change matters. This is the Mark 8 unit in a 1/8 in. NPTF port, spring return. The solenoid plugs in and carries an indicator light, and the assembly is rated NEMA 4 / IP65. Both lubricated and unlubricated air are acceptable.
- Series: Mark 8
- Function: 4-way, 2-position (5/2), spring return
- Actuation: Direct solenoid, plug-in solenoid with indicator light
- Coil: 120 V AC
- Port size: 1/8 in. NPTF
- Flow: 37 SCFM at 80 psig (0.80 Cv)
- Operating pressure: 28 in. Hg vacuum to 150 psig
- Mounting: Body-to-base plug-in (base or manifold ordered separately)
- Protection: NEMA 4 / IP65
Specifications
| Distributed By | Doig Corporation, JHFOSTER |
|---|---|
| Brand | AVENTICS |
| Series | Mark 8 |
| Manufacturer Part Number | 081SA400K000030 |
| Selling Unit | Each |
