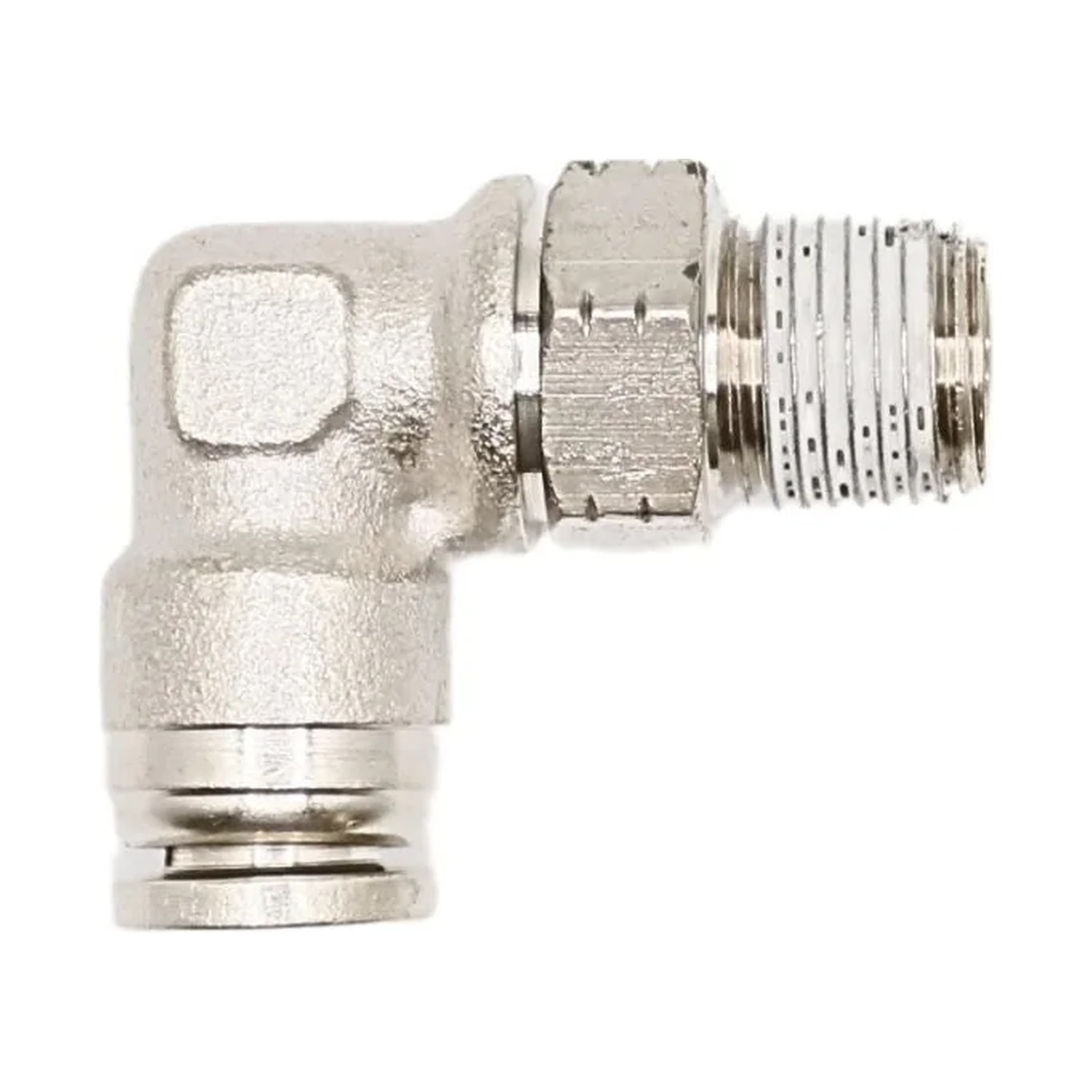

AVENTICS INB109-104-020 Push-In Swivel Male Elbow, 1/4 in. Tube x 1/8 in. NPT
AVENTICS INB109-104-020 Push-In Swivel Male Elbow, 1/4 in. Tube x 1/8 in. NPT
Notice: This product is subject to geographic restrictions and can only be sold within the following regions: MN, ND, SD, IA, NE, and select counties in WI. Have questions about availability in your area? Fill out our contact form to connect with an agent today.
Description
Numatics IN series push-in fittings connect plastic tube to a threaded port without tools: the tube pushes past a stainless steel locking ring and seals on an O-ring, and pressing the release ring frees it again. The body is nickel-plated brass rather than resin, which is what separates this line from the plastic push-in fittings and is why it carries a 265 psi rating. This is the swivel male elbow in 1/4 in. tube on a 1/8 in. NPT port.
- Type: S, push-inwivel male elbow
- Tube outside diameter: 1/4 in.
- Thread: 1/8 in. NPT NPTF
- Maximum pressure: 265 psi
- Vacuum: to 29 in. Hg
- Operating temperature: -20 to 176 degrees F (Buna-N O-ring)
- Compatible tubing: Nylon, polyurethane, polyethylene
- Materials: Nickel-plated brass body, stainless steel locking ring, polyacetal release ring, Buna-N O-ring
Specifications
| Distributed By | Doig Corporation, JHFOSTER |
|---|---|
| Brand | AVENTICS |
| Series | IN |
| Manufacturer Part Number | INB109-104-020 |
| Selling Unit | Each |
