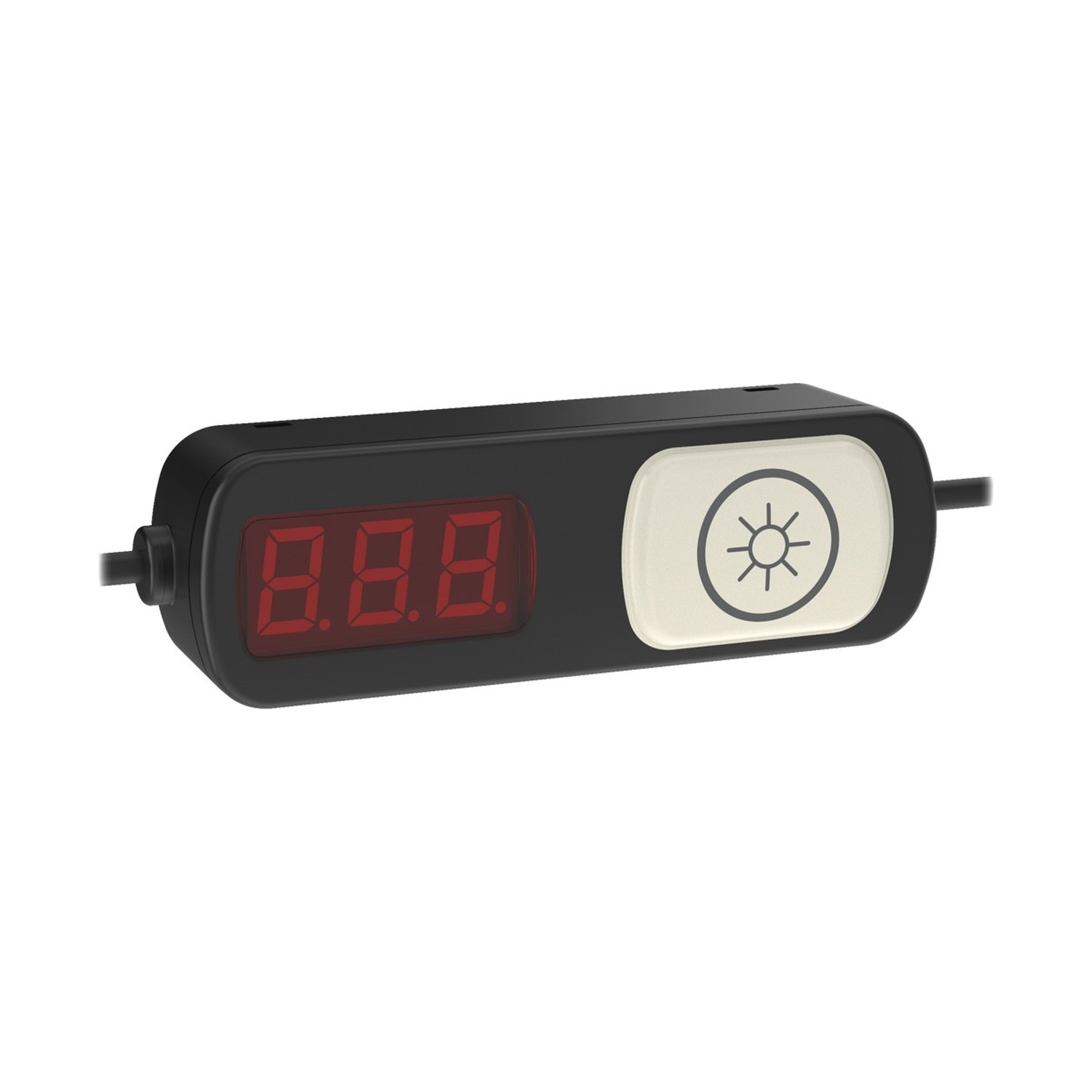

Banner Engineering PTL110 Pick-to-Light Device
Banner Engineering PTL110 Pick-to-Light Device
Description
The Banner Engineering PTL110 is a scalable pick-to-light device that combines a touch button or optical sensor with an LED indicator ring and an optional 3-digit, 7-segment display, daisy-chained over M12 connectors to build a multi-position picking or kitting system. Units run on Banner’s PICK-IQ Modbus-compatible serial protocol and are available with a 100 mm or 200 mm fixed sensing field, letting a line be built from identical, individually addressable nodes without a separate controller for each position.
- Function: pick-to-light touch/optical node with numeric display
- Sensing field: 100 mm or 200 mm fixed field (touch or optical sensor models)
- Display: optional 3-digit, 7-segment LED
- Communication: PICK-IQ (Modbus-compatible serial bus)
- Supply voltage: 10 to 30 V DC
- Connection: 150 mm PVC Euro pigtail, M12
- Housing rating: IP54
Specifications
| Distributed By | Seltrol, Sensors Incorporated |
|---|---|
| Brand | Banner Engineering |
| Series | PTL110 |
| Selling Unit | Each |
