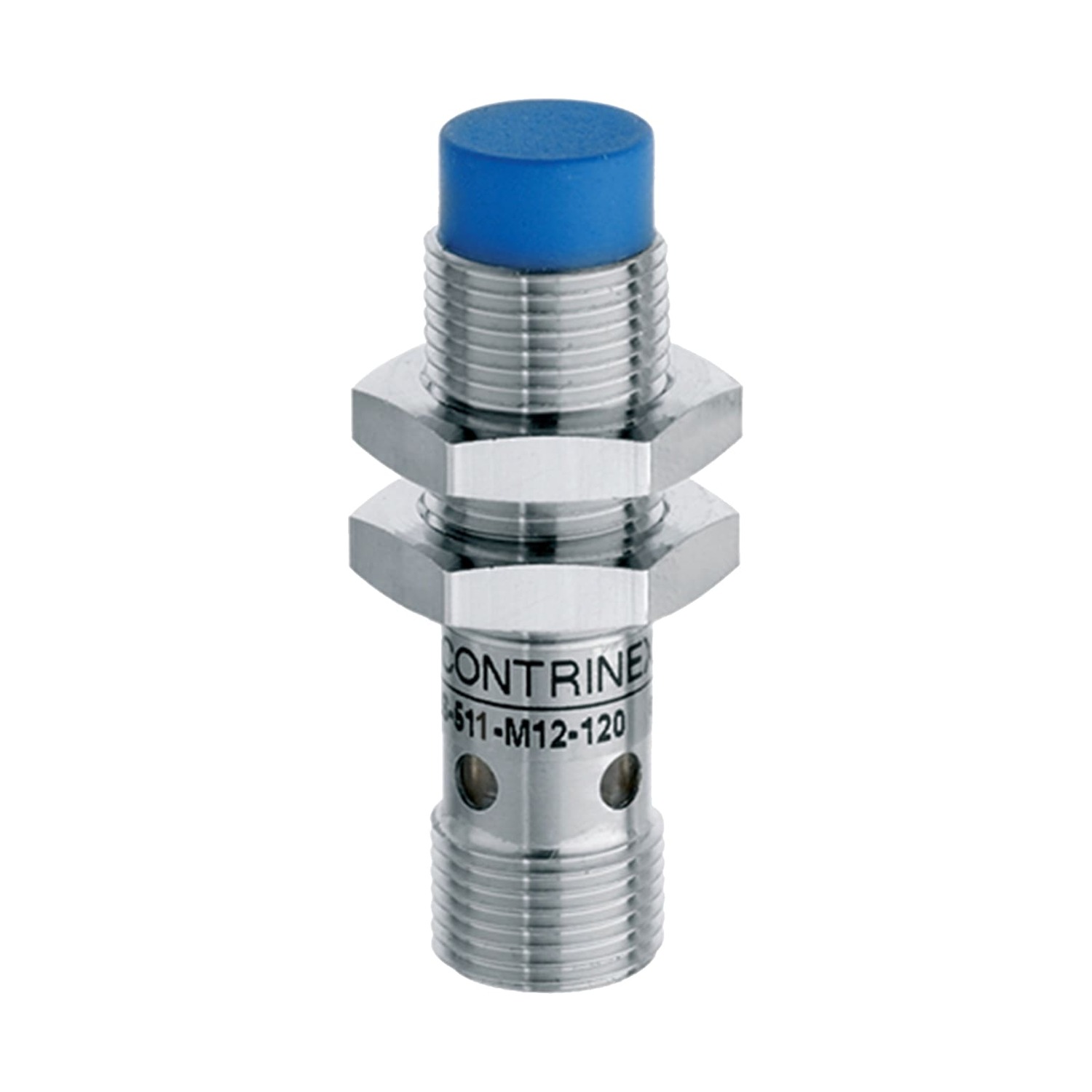

Contrinex DW-AS-513-M12-120 Inductive Proximity Sensor
Contrinex DW-AS-513-M12-120 Inductive Proximity Sensor
Description
The Contrinex DW-AS-513-M12-120 is a 12 mm tubular inductive proximity sensor from the Extra Distance 500 series with an extended, non-flush sensing range. It detects metal targets and switches a PNP normally-open output over an IO-Link interface for longer-range part and position detection in a compact 12 mm barrel. The chrome-plated brass housing is rated IP67 for standard industrial duty.
- Sensing mode: inductive, extended range, non-flush mounting
- Sensing distance: 10 mm
- Supply voltage: 10 to 30 V DC
- Switching frequency: 400 Hz
- Output: PNP, normally open (NO)
- Communication: IO-Link
- Connection: 4-pin M12 quick-disconnect
- Enclosure rating: IP67
Specifications
| Distributed By | Seltrol, Sensors Incorporated |
|---|---|
| Brand | Contrinex |
| Manufacturer Part Number | DW-AS-513-M12-120 |
| Selling Unit | Each |
