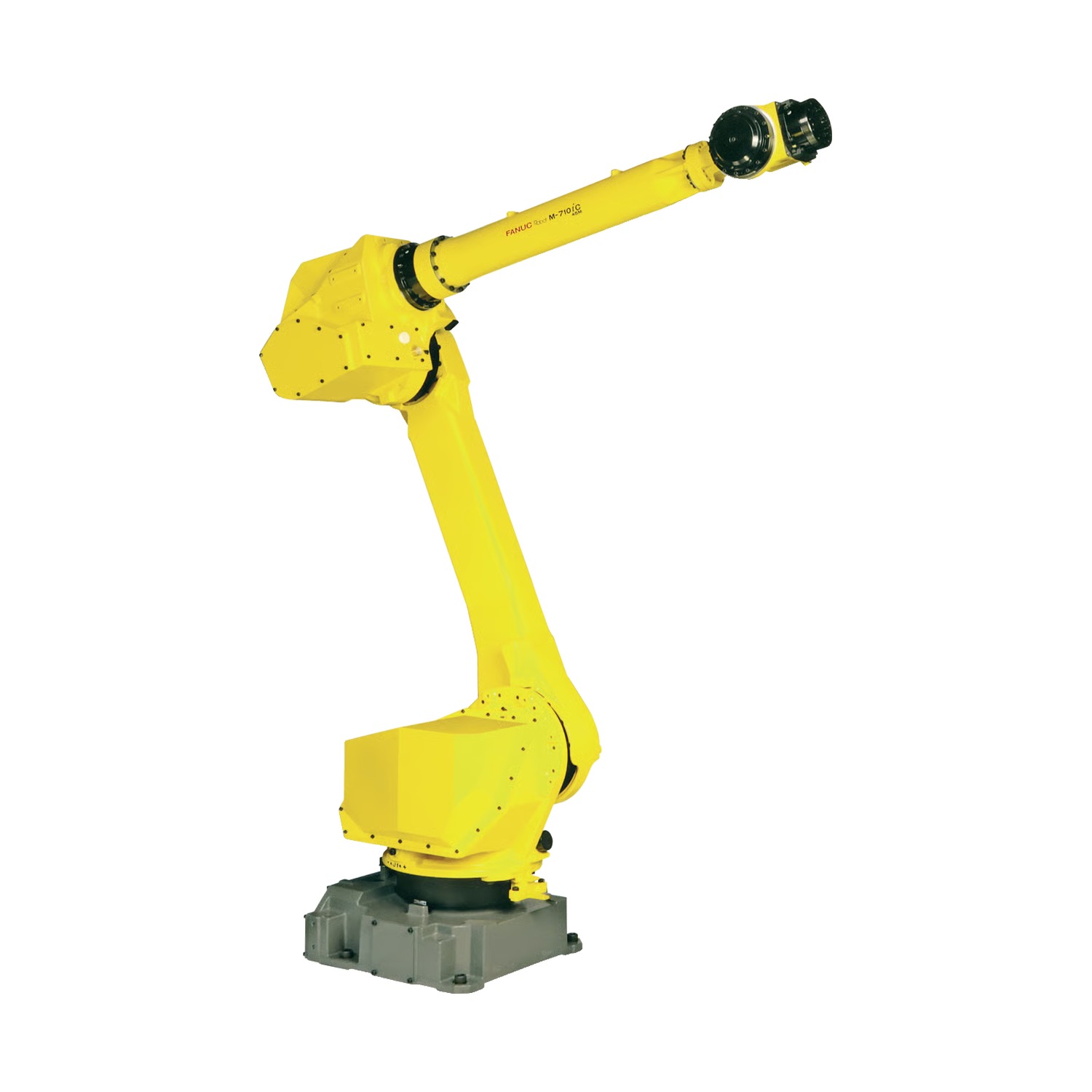

FANUC M-710iC/45M 6-Axis Industrial Robot
FANUC M-710iC/45M 6-Axis Industrial Robot
Description
The FANUC M-710iC/45M is a six-axis industrial robot built for high-speed material handling. It carries 45 kg at the wrist over a 2606 mm reach with ±0.06 mm repeatability, and can be floor, angle or inverted mounted. The M variant extends the motion range for wide-envelope handling and runs on the R-30iB Plus controller.
- Payload: 45 kg
- Reach: 2606 mm
- Repeatability: ±0.06 mm per ISO 9283
- Controlled axes: 6
- Motion range: J1 360°, J2 225°, J3 440°, J4 800°, J5 250°, J6 800°
- Motion speed: J1 to J3 180°/s, J4 to J5 250°/s, J6 360°/s
- Mounting: floor, angle or inverted; mechanical weight 570 kg
- Protection rating: body IP54 standard with IP67 optional; wrist and J3 arm IP67 standard
Specifications
| Distributed By | DevLinks |
|---|---|
| Brand | FANUC |
| Series | M-710iC |
| Manufacturer Part Number | M-710iC/45M |
| Selling Unit | Each |
| Maximum Payload (kg) | 45.00 |
| Maximum Reach (mm) | 2,606.00 |
| Degrees of Freedom | 6-Axis |
| Weight | 1256.63 lbs |
