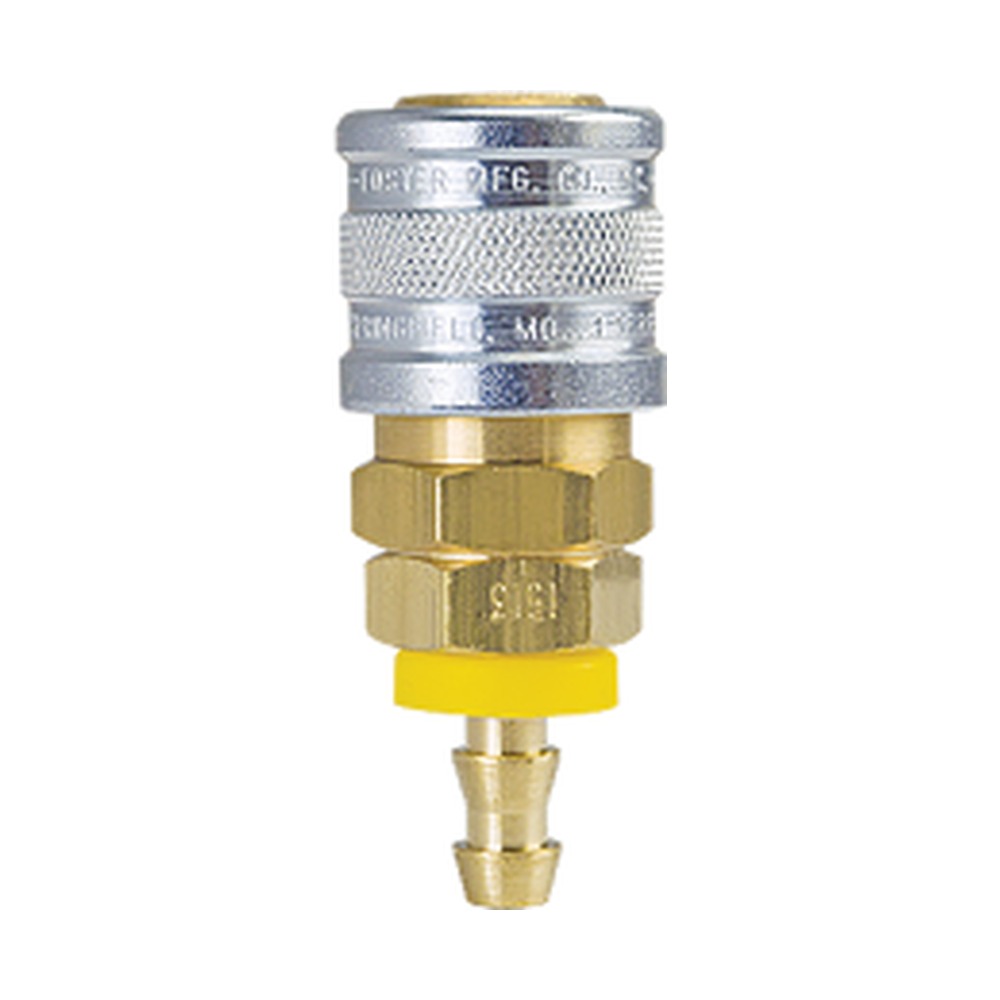

Foster 1713W 1/4 in. Industrial Manual Quick Coupler, 3/8 in. Push-On Hose Barb
Foster 1713W 1/4 in. Industrial Manual Quick Coupler, 3/8 in. Push-On Hose Barb
Description
ZSi-Foster 3 Series 1/4″ x 3/8″ I.D. Brass/Stainless Steel Buna-N-Seal Push-On Hose Stem Plug couplers for water are designed for rigid mounting that allows a simple push-to-connect operation, constructed of a solid brass body and a steel valve. The 3 Series are mechanically interchangeable with similar industrial interchange couplings made by other manufacturers. FM Series 3 and 5 couplers comply with A-A-59439.
Rated Pressure: 300 psig; vacuum to 27″ Hg
Temp Range: -40° to 250°F
Locking Device: 3 pins
Hose clamps not required when used with “Push-On” hose.
Sleeve-Lock Option: Sleeve-Lock feature locks automatic sockets against accidental disconnect. To connect, align ball with slot. After connection, rotate sleeve to lock. To disconnect, realign ball with slot and retract sleeve. Sizes available with sleeve lock are shown in the tables in the catalog.
Specifications
| Distributed By | JHFOSTER |
|---|---|
| Brand | Foster Manufacturing |
| Series | 3 |
| Manufacturer Part Number | 1713W |
| Selling Unit | Each |
| Country of Origin | United States |
| Material | Brass/Stainless Steel |
| Component Type | Socket/Female |
| Weight | 0.24 lbs |
