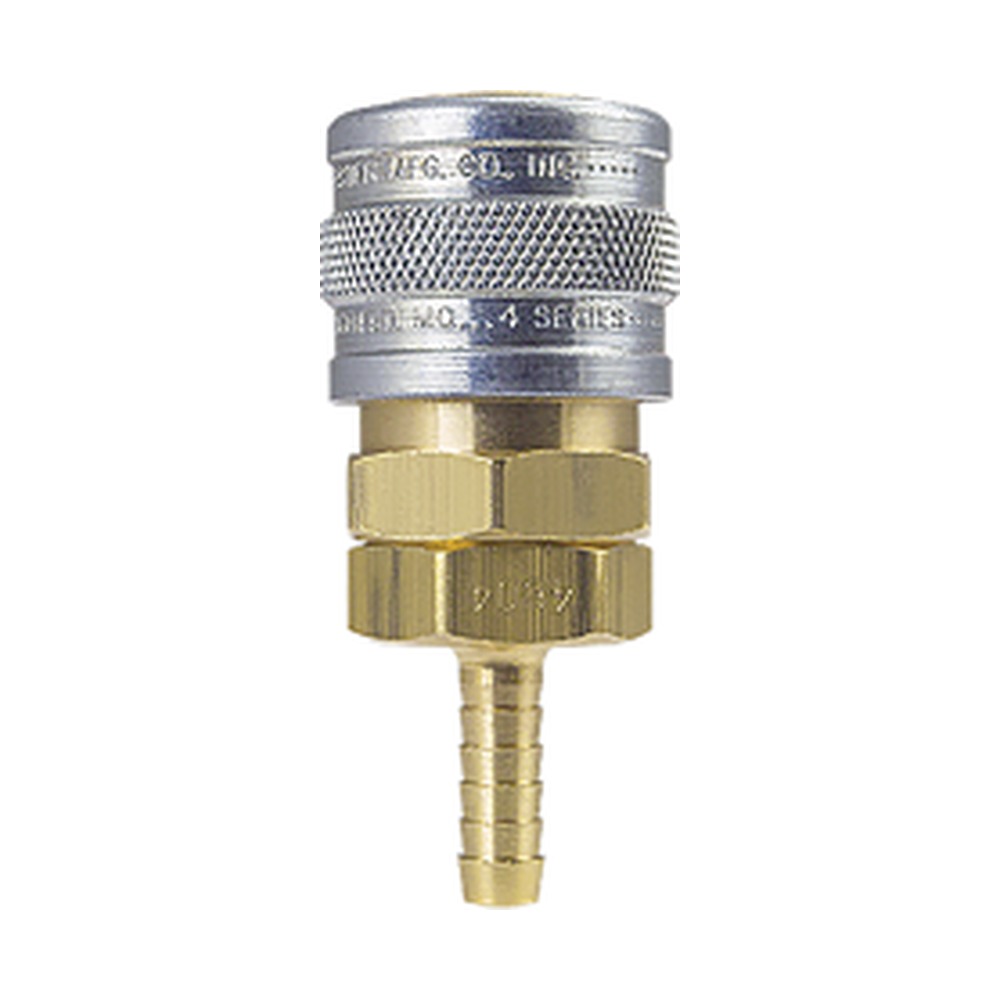

Foster 4604W 3/8 in. Industrial Manual Quick Coupler, 1/4 in. Hose Barb
Foster 4604W 3/8 in. Industrial Manual Quick Coupler, 1/4 in. Hose Barb
Description
ZSi-Foster 4 Series 3/8″ x 1/4″ I.D. Brass/Stainless Steel Buna-N-Seal 1-Way Manual Hose Stem Socket sleeve type couplings for water are widely used to connect air and low pressure fluid lines. Their compact and economical design uses a ball locking mechanism consisting of captive stainless steel balls that engage the locking groove on the mating plug. The sliding spring loaded sleeve on the socket must be manually retracted in order to connect or disconnect the plug. Interchangeable with ANSI/NFPA T3.20.14-1990 & ISO 6150-B.
Requires Hose Clamp.
Working Pressure: 300 psig, vacuum to 27″ Hg
Temp Range: -40° to 250°F
Locking Device: Stainless Steel Balls
High flow metal valves.
Wide range of body sizes, materials, options and end terminations are available to meet specific needs.
Specifications
| Distributed By | JHFOSTER |
|---|---|
| Brand | Foster Manufacturing |
| Series | 4 |
| Manufacturer Part Number | 4604W |
| Selling Unit | Each |
| Country of Origin | United States |
| Material | Brass/Stainless Steel |
| Component Type | Socket/Female |
| Weight | 0.35 lbs |
