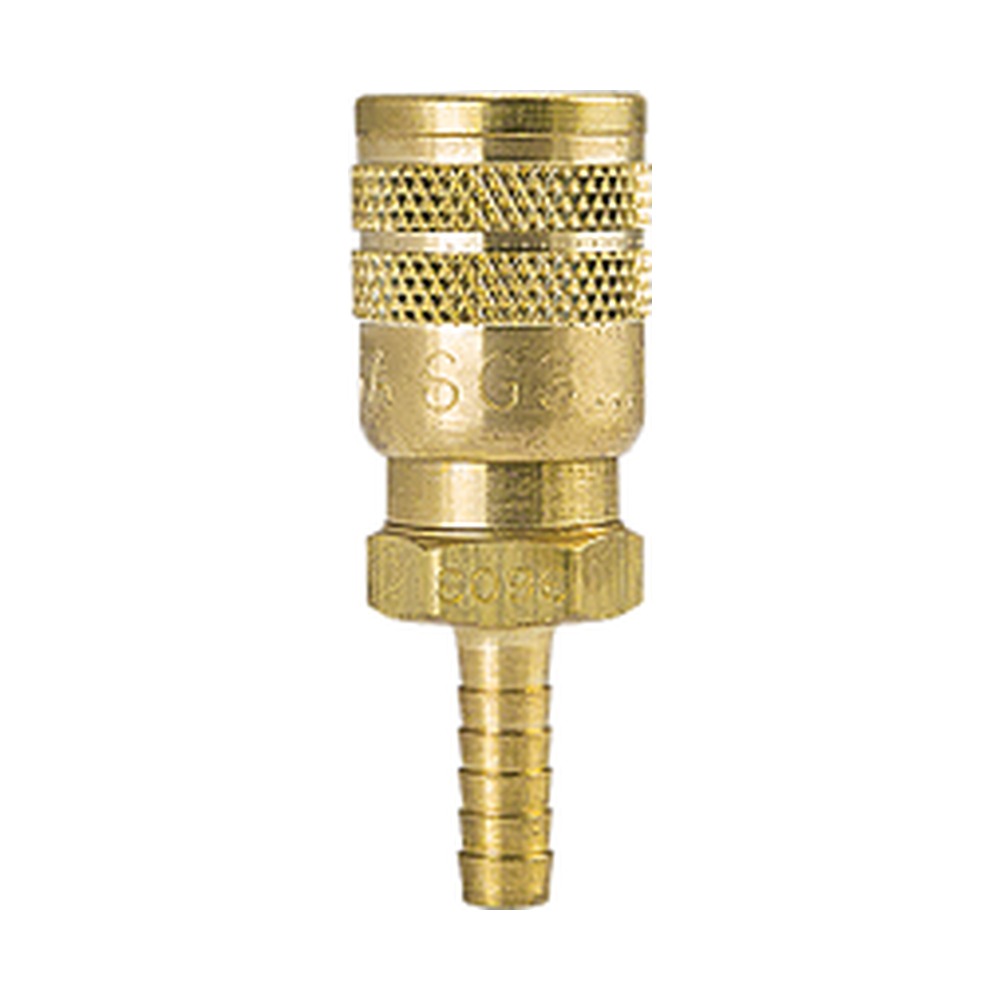

Foster B-2CS3-B 1/4 in. Industrial Sleeve Guard Quick Coupler, 3/8 in. Hose Barb
Foster B-2CS3-B 1/4 in. Industrial Sleeve Guard Quick Coupler, 3/8 in. Hose Barb
Description
Breco C Series 1/4″ x 3/8″ I.D. Brass Manual Sleeve Guard Hose Stem Socket couplers are designed for rigid mounting that allows a simple push-to-connect operation, constructed of a solid brass body and a steel valve. The “FM” 3 thru 6 Series are mechanically interchangeable with similar industrial interchange couplings made by other manufacturers and accept plugs that conform to MIL-C4109-F. Plugs used with the “FM” Series are the Industrial Interchange plugs. FM Series 3 and 5 couplers comply with A-A-59439.
Working Pressure: 300 psig, vacuum to 27″ Hg
Temp Range: -40° to 250°F
Specifications
| Distributed By | JHFOSTER |
|---|---|
| Brand | Foster Manufacturing |
| Series | C |
| Manufacturer Part Number | B-2CS3-B |
| Selling Unit | Each |
| Country of Origin | China |
| Material | Brass |
| Component Type | Socket/Female |
| Weight | 0.19 lbs |
