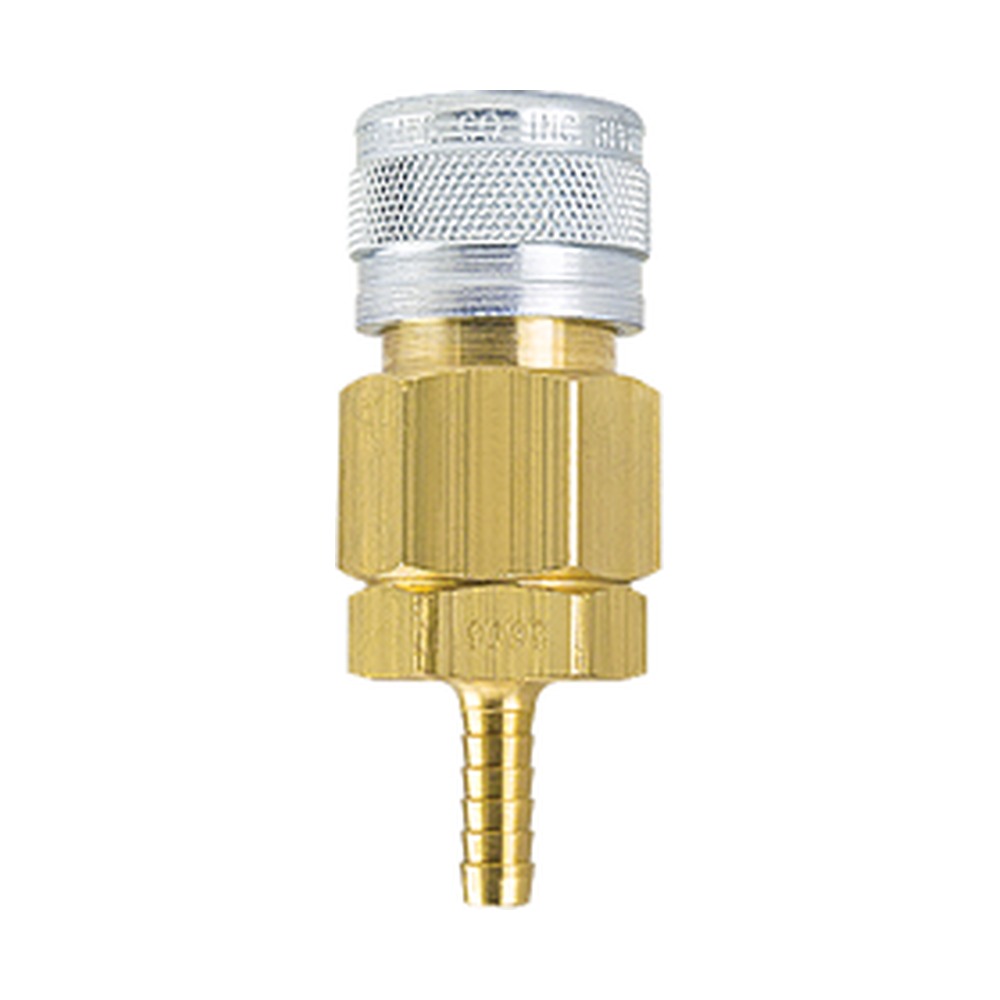

Foster D562BL 1/2 in. Industrial Ball Lock Quick Coupler, 3/8 in. Hose Barb
Foster D562BL 1/2 in. Industrial Ball Lock Quick Coupler, 3/8 in. Hose Barb
Description
Breco D Series 1/2″ x 3/8″ I.D. Ball Lock, Brass/Steel 1-Way Shut-Off Hose Stem Socket sleeve type couplings are designed for rigid mounting that allows a simple push-to-connect operation, constructed of a solid brass body and a steel valve. The “FM” Series are mechanically interchangeable with similar industrial interchange couplings made by other manufacturers and accept plugs that conform to MIL-C4109-F. FM Series 3 and 5 couplers comply with A-A-59439.
Requires Hose Clamp.
Working Pressure: 300 psig, vacuum to 27″ Hg
Temp Range: -40° to 250°F
Locking Device: Stainless Steel Balls
High flow metal valves.
Wide range of body sizes, materials, options and end terminations are available to meet specific needs.
Specifications
| Distributed By | JHFOSTER |
|---|---|
| Brand | Foster Manufacturing |
| Series | D |
| Manufacturer Part Number | D562BL |
| Selling Unit | Each |
| Country of Origin | China |
| Material | Brass/Steel |
| Component Type | Socket/Female |
| Weight | 0.43 lbs |
