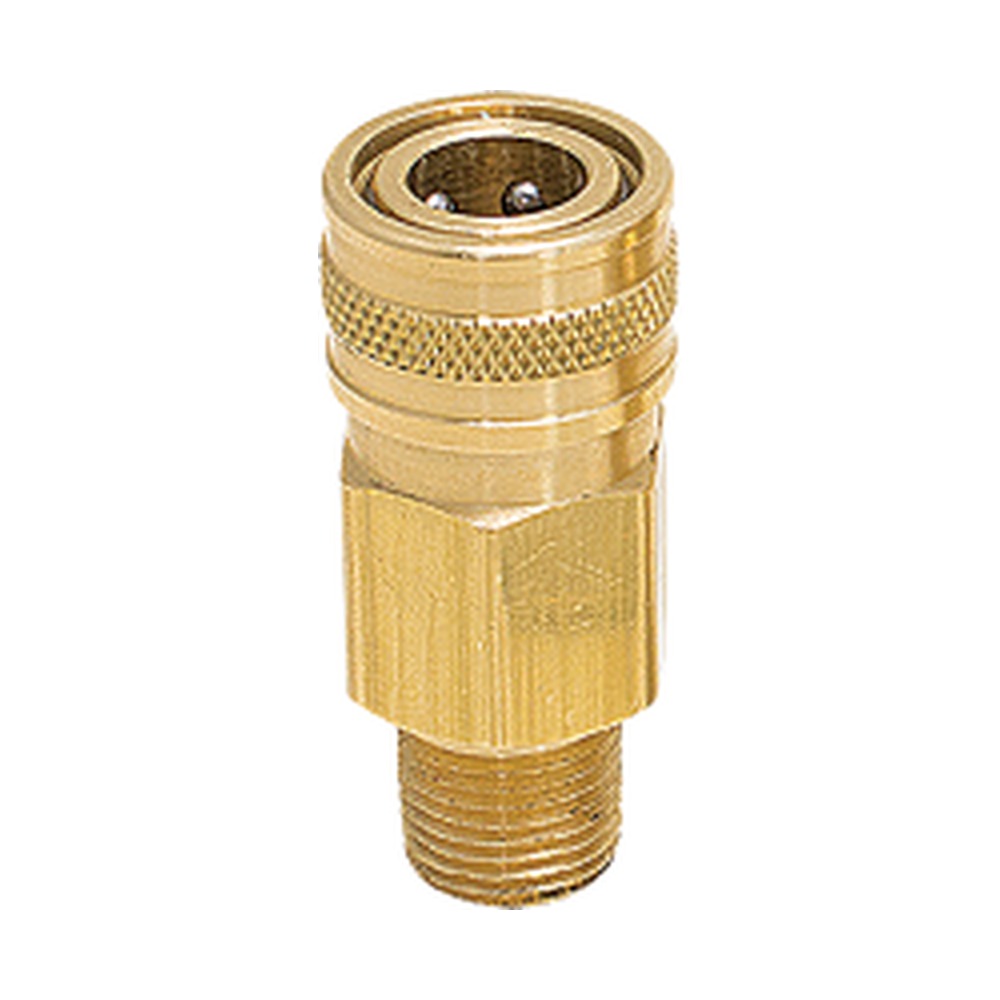

Foster F180 1/8 in. Hansen 180 Quick Coupler, 1/8 in. NPT Male
Foster F180 1/8 in. Hansen 180 Quick Coupler, 1/8 in. NPT Male
Description
The F180 Series 1/8″ x 1/8″ Male Thread Socket miniature ball-lock quick disconnect coupling/plug offers great performance in a very small size with high flow and minimal pressure drop. Designed for use with compressed air, gases, and liquids. It’s perfect for breathable air, lab, medical, and pharmaceutical applications. It’s a preferred choice anywhere high flow is required within a very tight space, such as boat lifts. The F180 Series interchanges with the Hanson 180 Series.
Temp Range: -40° to +250°
Max. Operating Pressure: 700 psig (48) bar
Min. Burst Pressure: 2,800 psig (193 bar)
Flow Rate: 2.5 scfm (71 Ipm)
Features:
• Miniature Ball-Lock Quick Disconnect Coupling
• Designed for use with Compressed Air, Gasses, and Liquids
• Hansen 180 Series Interchange
• Standard Brass Body, Optional Plating Available
• F180 Series Utilizes a Tire Valve
• Can Be Used in Laboratory, Medical, Pharmaceutical, Food, and Beverage
• Offered with 1/8″ Male NPT or 3/16″ I.D. Hose Barb
• Standard Buna-N, Flexible Seal
Specifications
| Distributed By | JHFOSTER |
|---|---|
| Brand | Foster Manufacturing |
| Series | F180 |
| Manufacturer Part Number | F180 |
| Selling Unit | Each |
| Country of Origin | China |
| Material | Brass |
| Component Type | Socket/Female |
| Weight | 1.00 lbs |
