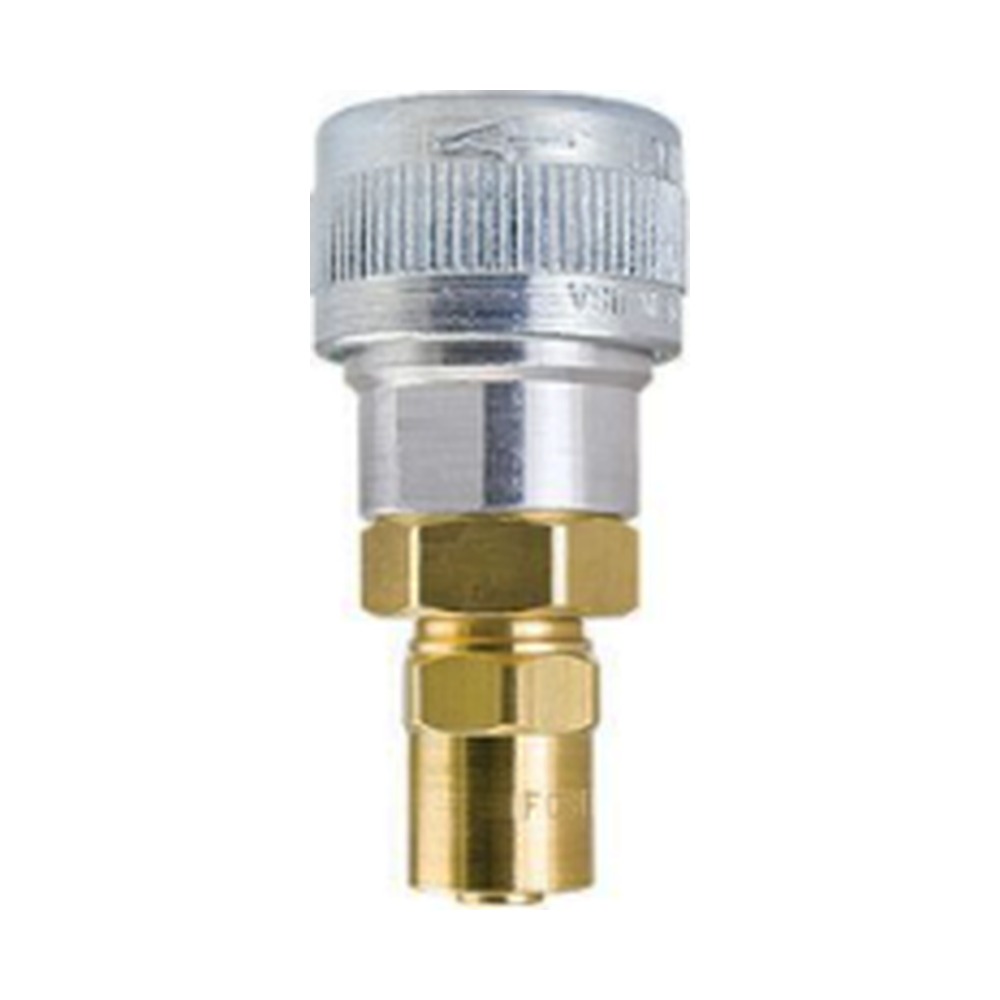

Foster SHDSD73 1/4 in. Schrader Automatic Quick Coupler, 3/8 in. ID x 5/8 in. OD Hose Clamp
Foster SHDSD73 1/4 in. Schrader Automatic Quick Coupler, 3/8 in. ID x 5/8 in. OD Hose Clamp
Description
ZSi-Foster SHD Series 1/4″ x 3/8″ I.D. Hose Stem Plug couplers are engineered for quick coupling and uncoupling. The SHD and TL Series couplers protect against accidental uncoupling and are offered in a variety of sizes to meet specific needs. Standard Twist-Lock (TL) couplings are ideal for low to medium air flows, such as air tools. Requires Hose Clamp.
- Temp Range: -40°F to 250°F
- Locking Device: Twist Lock
- One-Way Shut-Off
- Rated Pressure: 300 psig
- Operation: Automatic Push to Connect; Twist to release
- Materials: Aluminum bodies and zinc plated steel sleeves. Buna-N-Seals. Brass adapters.
Specifications
| Distributed By | JHFOSTER |
|---|---|
| Brand | Foster Manufacturing |
| Series | SHD |
| Manufacturer Part Number | SHDSD73 |
| Selling Unit | Each |
| Country of Origin | China |
| Material | Aluminum/Brass/Steel |
| Component Type | Socket/Female |
| Weight | 0.29 lbs |
