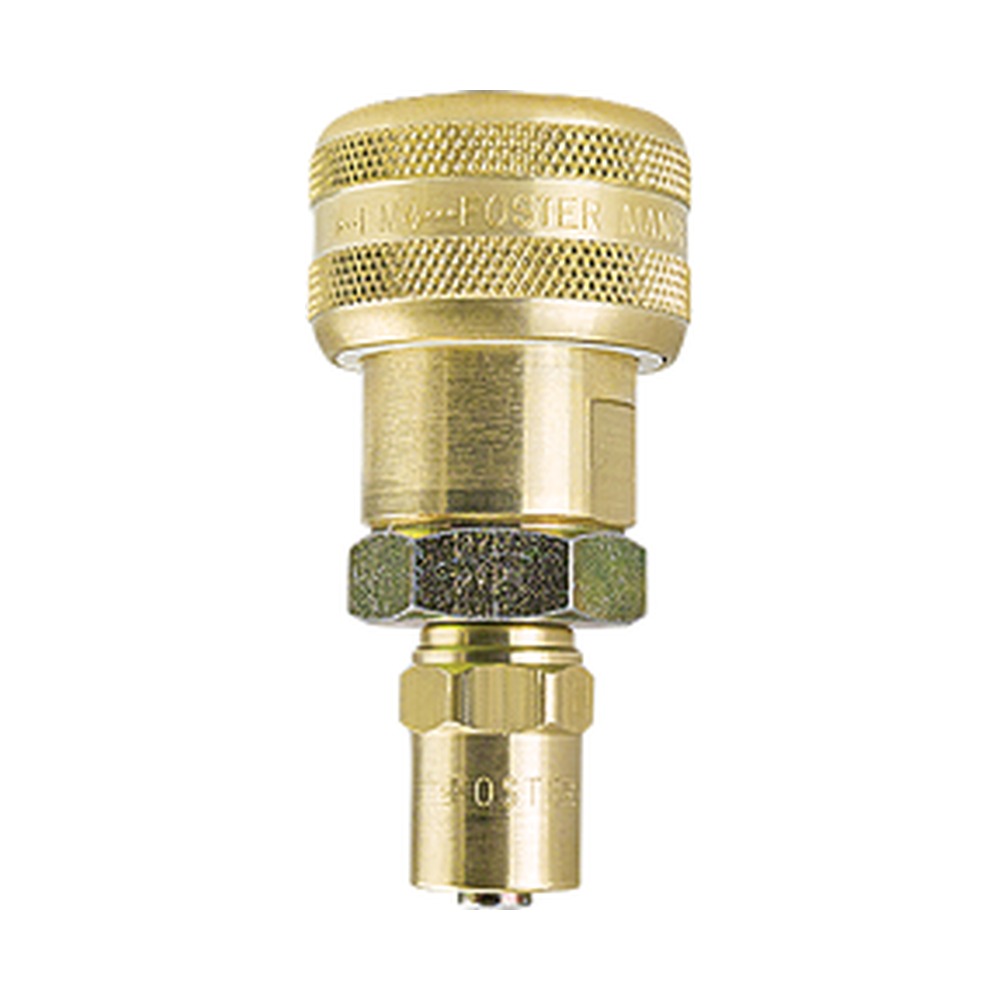

Foster SLSD7-4 3/8 in. Industrial Sleeve Lock Automatic Quick Coupler, 3/8 in. ID x 5/8 in. OD Hose Clamp
Foster SLSD7-4 3/8 in. Industrial Sleeve Lock Automatic Quick Coupler, 3/8 in. ID x 5/8 in. OD Hose Clamp
Description
ZSi-Foster 4 Series 3/8″ x 3/8″ I.D. x 5/8″ O.D. Sleeve Lock, Brass Automatic Reusable Hose Clamp Socket sleeve type couplings are widely used to connect air and low pressure fluid lines. Their compact and economical design uses a ball locking mechanism consisting of captive stainless steel balls that engage the locking groove on the mating plug. Interchangeable with ANSI/NFPA T3.20.14-1990 & ISO 6150-B.
Working Pressure: 300 psig, vacuum to 27″ Hg
Temp Range: -40° to 250°F
Locking Device: Stainless Steel Balls
High flow metal valves.
Wide range of body sizes, materials, options and end terminations are available to meet specific needs.
Specifications
| Distributed By | JHFOSTER |
|---|---|
| Brand | Foster Manufacturing |
| Series | 4 |
| Manufacturer Part Number | SLSD7-4 |
| Selling Unit | Each |
| Country of Origin | United States |
| Material | Brass |
| Component Type | Socket/Female |
| Weight | 0.46 lbs |
