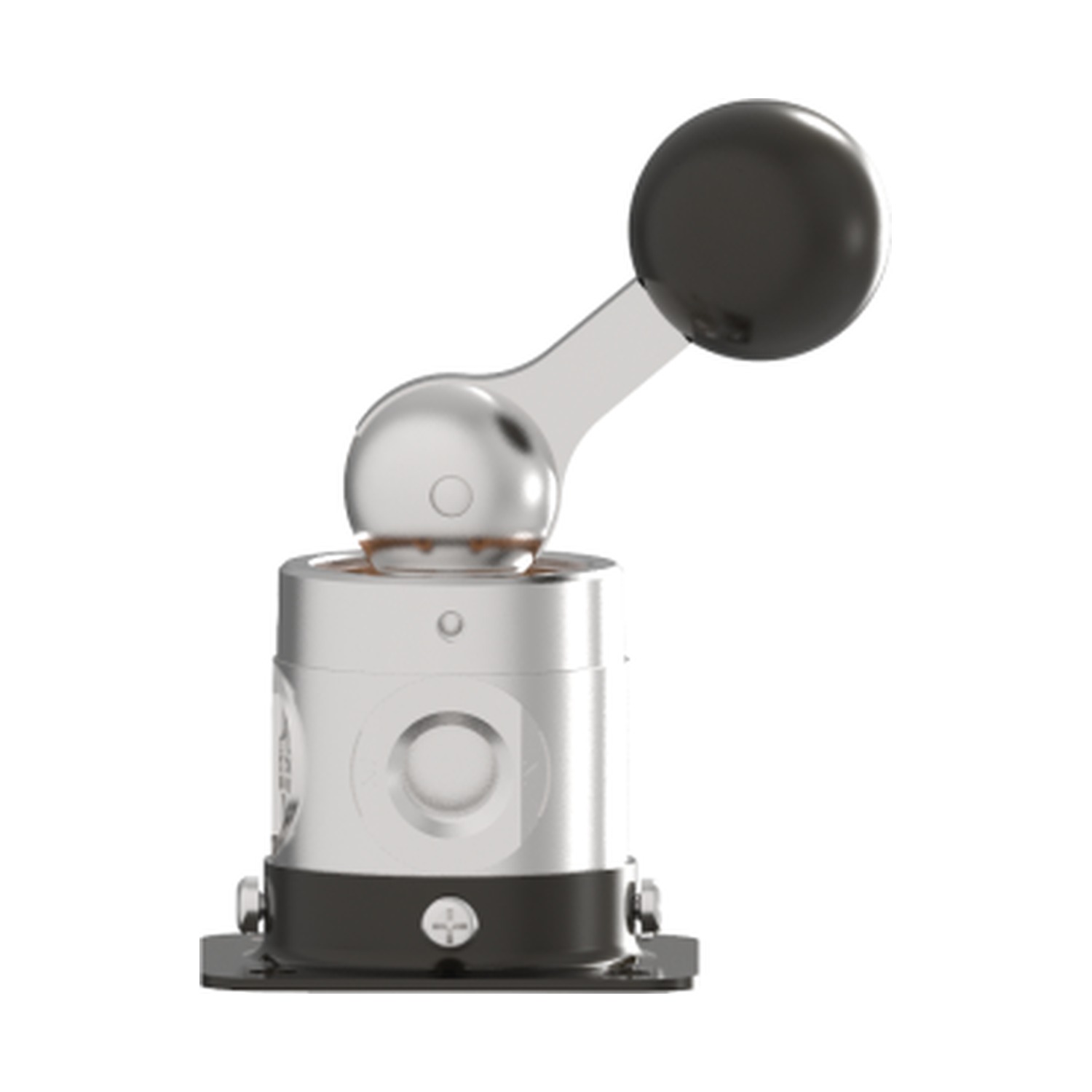

Humphrey 250V-3-10-21 Diaphragm Poppet Toggle Valve, Detented, 1/4 in.
Humphrey 250V-3-10-21 Diaphragm Poppet Toggle Valve, Detented, 1/4 in.
Description
The Humphrey 250V is the manually operated version of the 250 Series diaphragm poppet valve, actuated by a toggle lever. This configuration is detented, so the lever stays where it is put and the valve holds its state without being held – the usual choice for a hand-set circuit rather than a momentary one.
- Series: 250, diaphragm poppet
- Function: 2-way, 3 port, detented
- Actuation: Toggle lever, manual
- Port size: 1/4 NPSF
- Flow: 0.83 Cv, 60 SCFM at 100 psig
- Pressure range: 0 to 125 psi
- Operating temperature: -20 to 225 degrees F
- Wetted materials: Zinc diecast, brass, Buna-N
- Weight: 10.0 oz
Specifications
| Distributed By | JHFOSTER |
|---|---|
| Brand | Humphrey Products |
| Series | 250 |
| Manufacturer Part Number | 250V-3-10-21 |
| Selling Unit | Each |
| Country of Origin | United States |
