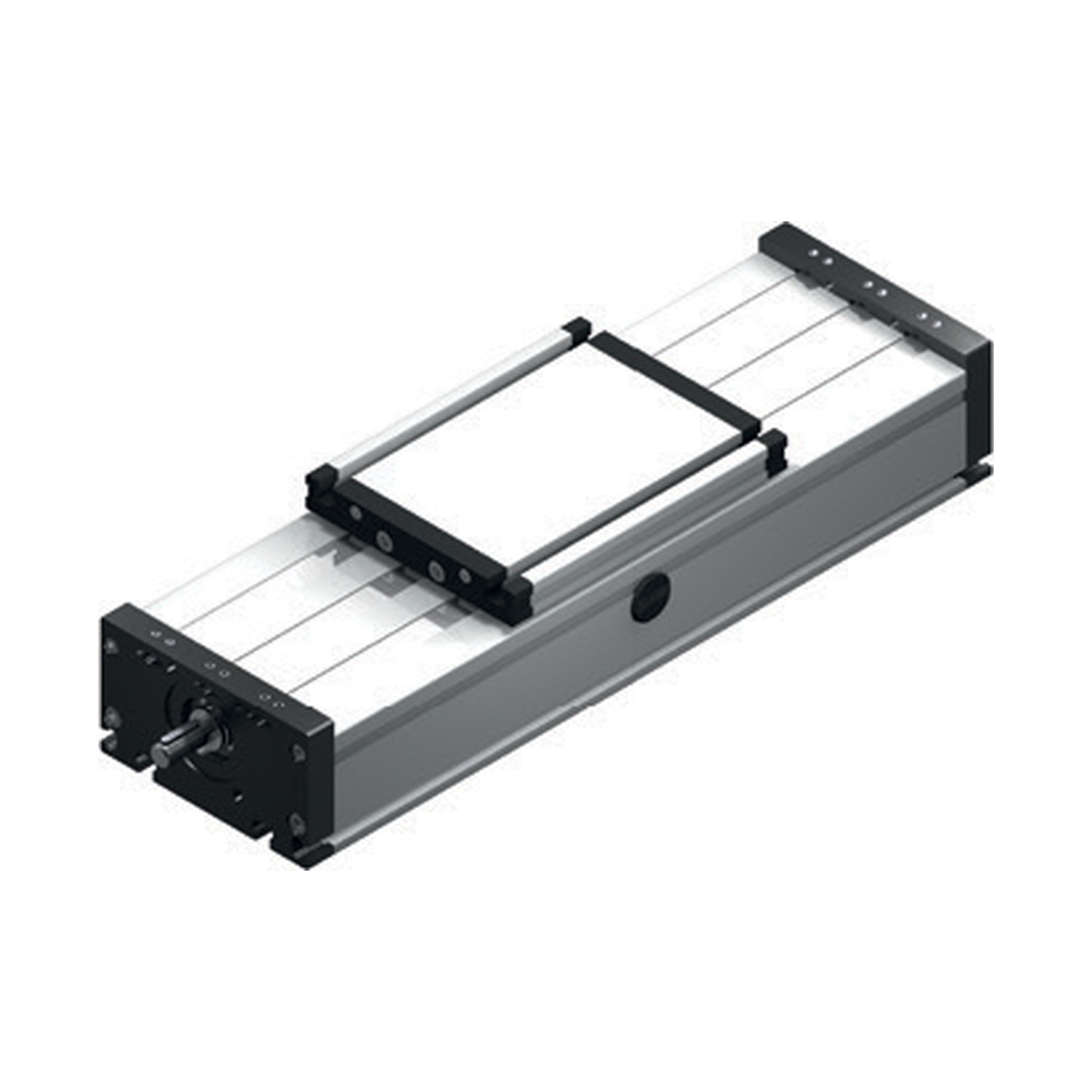

IMI Norgren DLT/DLK Series Linear Axis Actuator
IMI Norgren DLT/DLK Series Linear Axis Actuator
Notice: This product is subject to geographic restrictions and can only be sold within the following regions: MN, ND, SD, and select counties in WI and IA. Have questions about availability in your area? Fill out our contact form to connect with an agent today.
Description
Spindle driven Linear Axis range with a rectangular, Aluminum profile.
- Twin integrated rail guides ensure this range is suitable for applications handling exceptionally heavy loads
- The carriage is driven by means of a rotating spindle with leading nut
- The leading-nut receiver can be used to adjust the symmetry of the carriages where two linear units are used in parallel or where twin carriages are mounted
- Openings in the guide body are sealed with stainless steel cover bands providing protection against splash water and dust ingress
For Standard Industrial Applications
This unit consists of a rectangular aluminum profile with 2 integrated roller guides. The carriage is driven by means of a rotating spindle with leading nut. Where two parallel linear units are used or where two carriages are mounted on one unit, the leading-nut receiver can be used to adjust the symmetry of the carriages. The openings of the guide body are sealed with 3 stainless steel cover bands to protect the drive from splash water and dust.
- Frame Sizes: 120 – 160 – 200 mm
- Max Length: 3000 mm
- Speed: ± 1 m/s (K); ± 0.4 m/s (T)
- Max Payload: 8000 N
- Accuracy: ± 0.025 mm (K); ± 0.2 mm (T)
Specifications
| Distributed By | Accu Tech USA, JHFOSTER |
|---|---|
| Brand | IMI Norgren |
| Series | DLT/DLK |
| Selling Unit | Each |
| Country of Origin | Germany |
| Color | Silver |
| Material | Aluminum |
| Drive Mechanism | Ball Screw |
