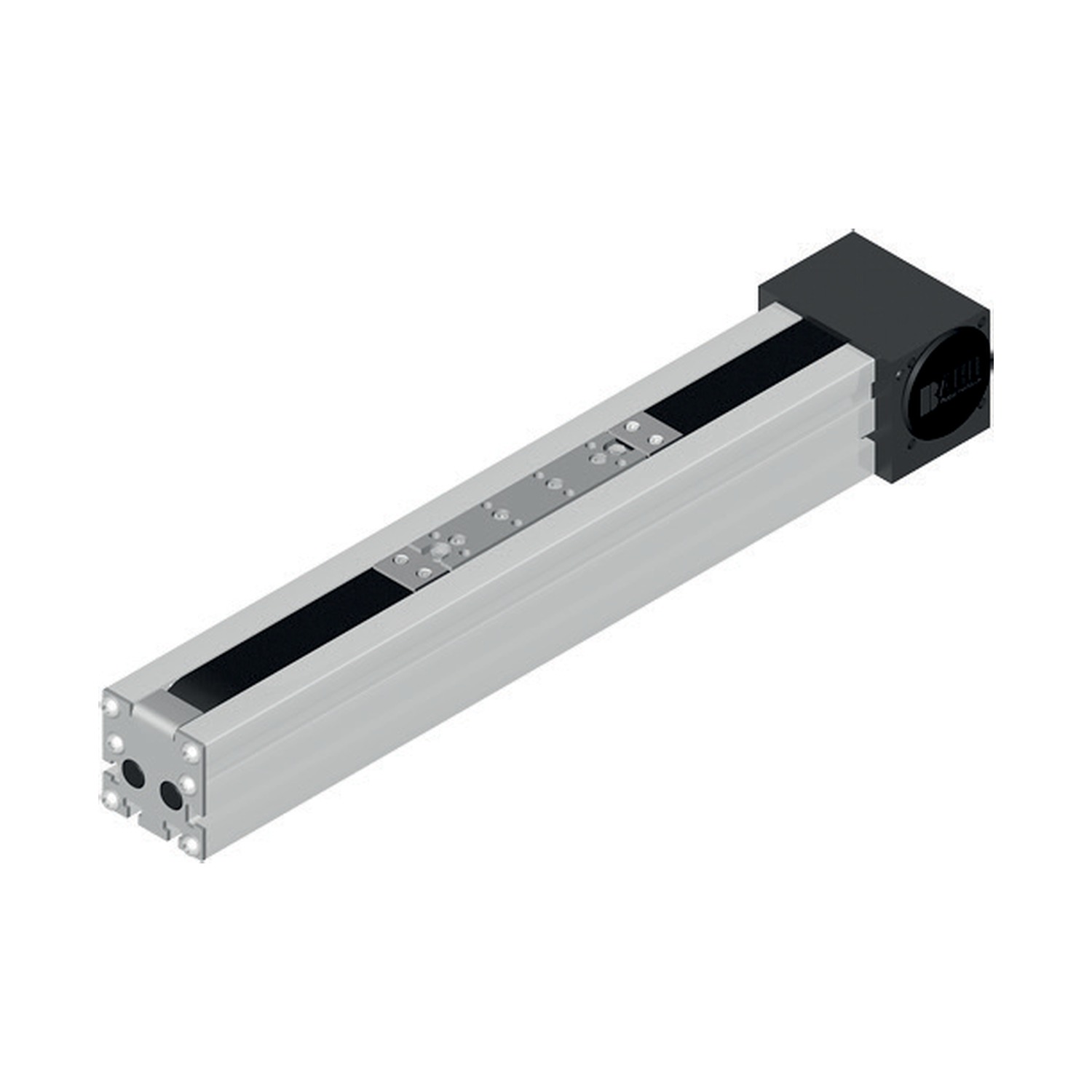

IMI Norgren LSZ Series Linear Axis Actuator
IMI Norgren LSZ Series Linear Axis Actuator
Notice: This product is subject to geographic restrictions and can only be sold within the following regions: MN, ND, SD, and select counties in WI and IA. Have questions about availability in your area? Fill out our contact form to connect with an agent today.
Description
Tooth belt driven Linear Axis range with a square, Aluminum profile.
- The carriage is moved by means of an internal rotating tooth belt on an integrated rail guide
- Includes timing belt deflection unit with integrated coupling claws integrated on two sides
- Re-tensioning device for the tooth belt integrated into end cap
- Independent installation position
- Multiple units can be assembled in series to achieve extended strokes
- Certified for use in Clean room applications (ISO-1)
For Light Duty Industrial Applications
The guide body consists of an aluminum square profile with an integrated rail guide. The carriage is moved by means of a revolving interior timing belt. At the front face there is a timing belt deflection unit with integrated coupling claws integrated on two sides. The opposite front face is provided with a plate containing a tensioning device for the timing belt. With this series, multi-part assembled units with long strokes can be realized.
- Frame Sizes: 60 – 80 – 100 mm
- Max Length: Up to 6 m (standard)
- Speed: 5 m/s
- Max Payload: 3800 N
- Accuracy: ± 0.1 mm
Specifications
| Distributed By | Accu Tech USA, JHFOSTER |
|---|---|
| Brand | IMI Norgren |
| Series | LSZ |
| Selling Unit | Each |
| Country of Origin | Germany |
| Color | Silver |
| Material | Aluminum |
| Drive Mechanism | Belt Drive |
