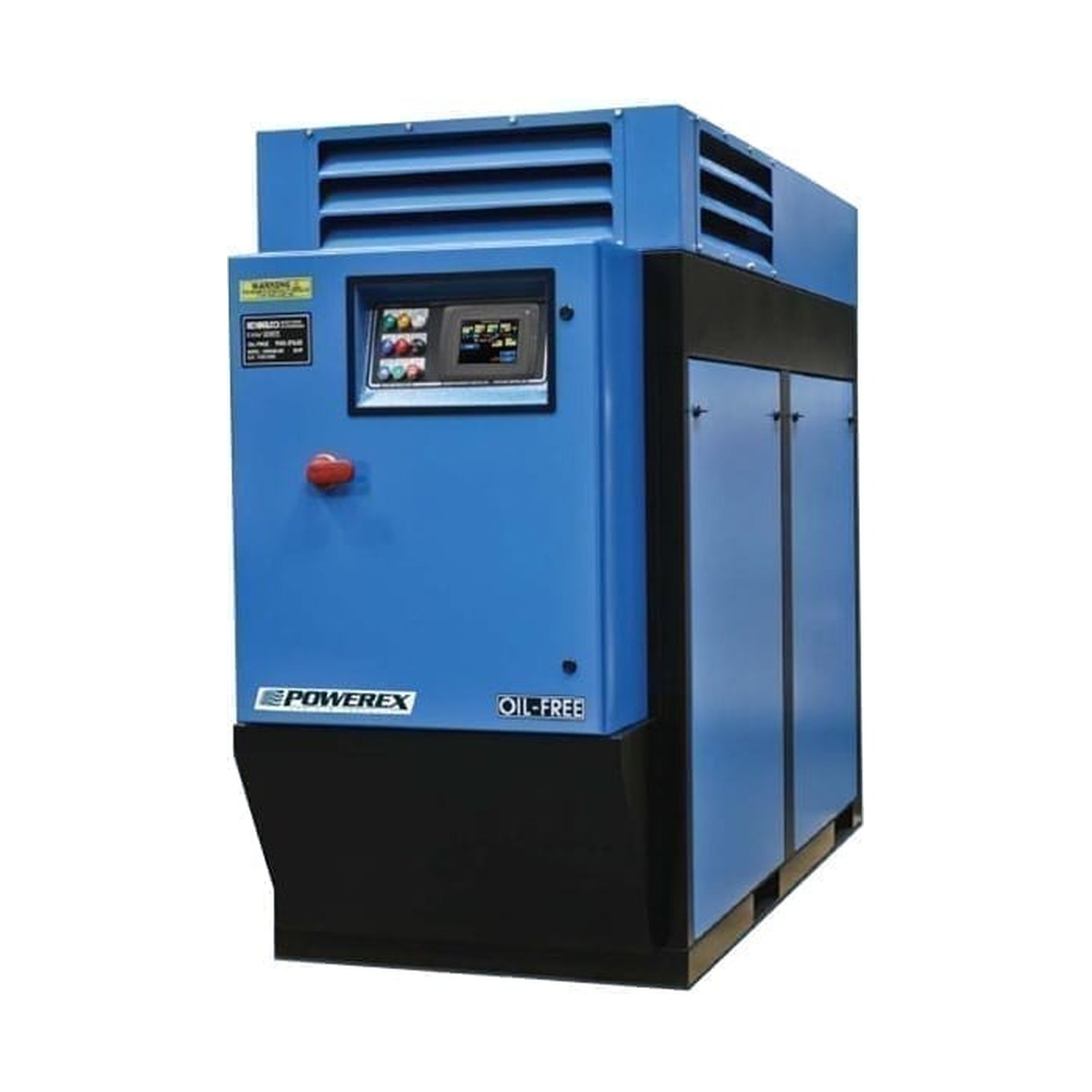

Powerex MDRE0757 Medical Air System
Powerex MDRE0757 Medical Air System
Description
Oil-free rotary screw medical air for the largest hospital loads
When a facility’s medical air demand outgrows scroll and piston technology, the Powerex MDRE0757 answers with oil-free rotary screw compression in a sound-attenuated enclosure. Multiple modules carry the load with one held in reserve per NFPA 99, and the Air Treatment Center package handles drying, filtration and regulation.
At a glance:
– Duplex system: 2 x 75 HP modules (150 HP installed)
– 333 SCFM rated with one module held in reserve per NFPA 99
– 400 gallon air receiver included
– Integrated air dryer built into the package
– 78 dB(A) published sound level
– Footprint 57 x 47 x 70 in.
Why customers choose it:
– Oil-free rotary screw compression for high-volume medical air
– Sound-enclosed cabinet construction
– Multiple modules with capacity rated per NFPA 99 with one compressor in reserve
– Air Treatment Center package with dual desiccant dryers, filters, regulators and relief valves
– ASME receiver rated 200 PSI MAWP
– Air-cooled and water-cooled versions available
Built for:
– Large hospitals and medical campuses
– Central plant medical air systems
– Facilities expanding bed count or surgical capacity
– Category 1 medical air installations under NFPA 99
Not sure this is the right size for your plant? Tavoron’s compressed air team will size it against your actual demand, handle installation and startup, and support it afterward. Contact us for a quote.
Specifications
| Distributed By | JHFOSTER |
|---|---|
| Brand | Powerex |
| Series | MDRE |
| Selling Unit | Each |
| Compressor Type | Rotary Screw |
| Variable Speed Drive | No |
| Motor Horsepower | 75.00 |
| Tank Size (gal) | 400.00 |
| Airflow Rate (CFM) | 333.00 |
| Integrated Air Dryer | Yes |
| Noise Level (dBA) | 78.00 |
