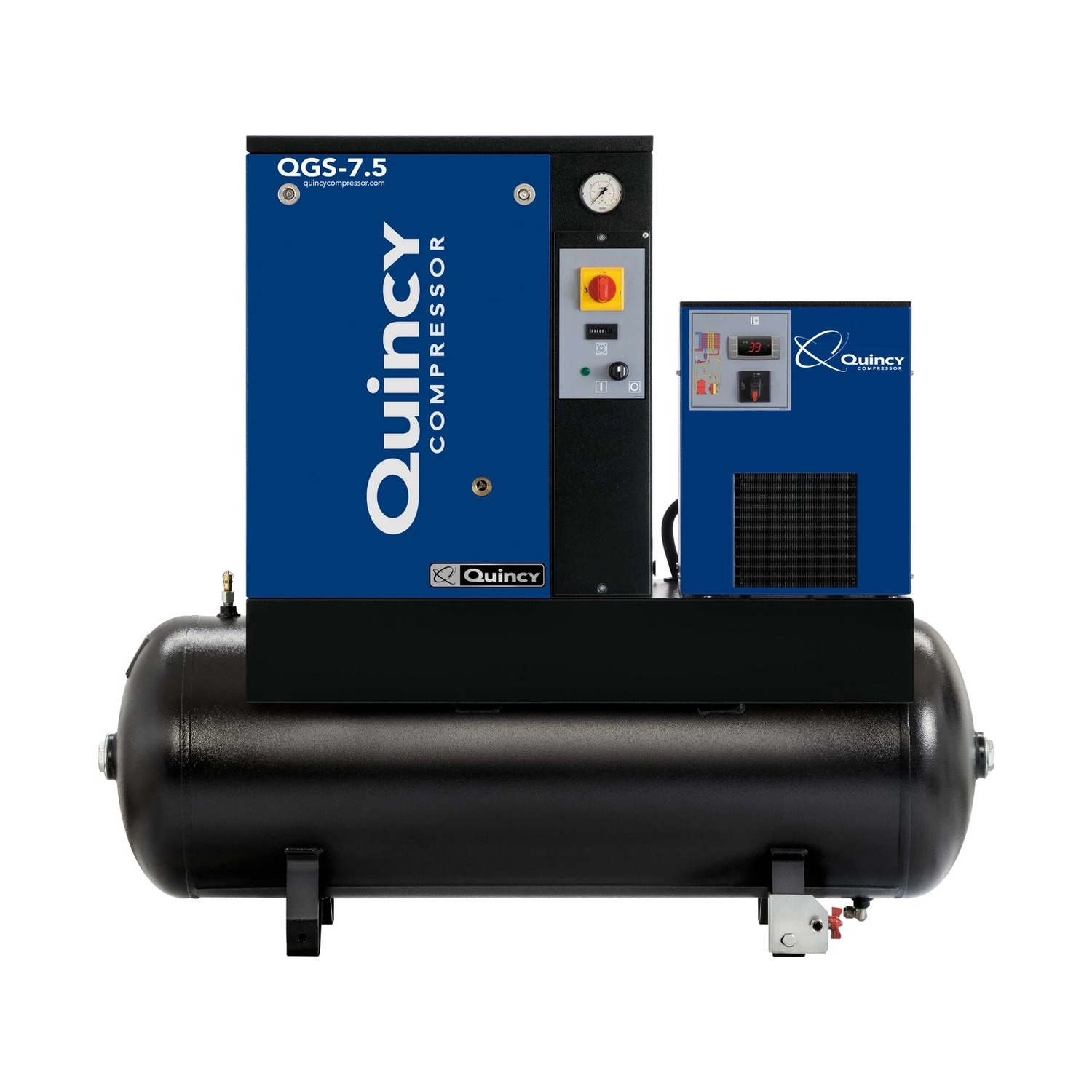

Quincy QGSV-7.5TD Rotary Screw Air Compressor
Quincy QGSV-7.5TD Rotary Screw Air Compressor
Notice: This product is subject to geographic restrictions and can only be sold within the following regions: MN and select counties in ND, SD, IA, and WI. Have questions about availability in your area? Fill out our contact form to connect with an agent today.
Description
Variable speed air that follows demand instead of fighting it
Most shops do not use a constant volume of air, yet most compressors produce one. The Quincy QGSV-7.5TD uses a variable speed drive to match output to what the plant is actually pulling, holding steady pressure while trimming the energy a fixed-speed machine wastes blowing off and idling. If your demand swings shift to shift, this is where the payback lives.
At a glance:
– 7.5 HP delivering 26.78 CFM at 145 psig
– 60 gallon air receiver included
– Integrated air dryer built into the package
– 62 dB(A) published sound level
– Footprint 56 x 24 x 51 in., approximately 463 lbs
Why customers choose it:
– Variable speed drive with 20-100% turndown to match real air demand
– Direct drive transmission for lower losses and less maintenance than a belt drive
– Holds system pressure within a tight band, so you can run a lower setpoint
– NEMA Premium TEFC motor standard
– Airlogic 2 advanced control with remote monitoring and connectivity options
– Quiet enclosure suitable for installation near the point of use
– Backed by Quincy’s 5-Year True Blue warranty with qualifying startup and maintenance
Built for:
– Plants with shift-to-shift or seasonal demand swings
– Facilities chasing utility rebates or energy targets
– Operations adding capacity without adding electrical service
– Shops where pressure stability affects product quality
Not sure this is the right size for your plant? Tavoron’s compressed air team will size it against your actual demand, handle installation and startup, and support it afterward. Contact us for a quote.
Specifications
| Distributed By | JHFOSTER |
|---|---|
| Brand | Quincy Compressor |
| Series | QGSV |
| Selling Unit | Each |
| Color | Blue |
| Compressor Type | Rotary Screw |
| Variable Speed Drive | Yes |
| Motor Horsepower | 7.50 |
| Tank Size (gal) | 60.00 |
| Airflow Rate (CFM) | 26.78 |
| Maximum Operating Pressure (psi) | 145 |
| Integrated Air Dryer | Yes |
| Noise Level (dBA) | 62.00 |
| Weight | 463.00 lbs |
