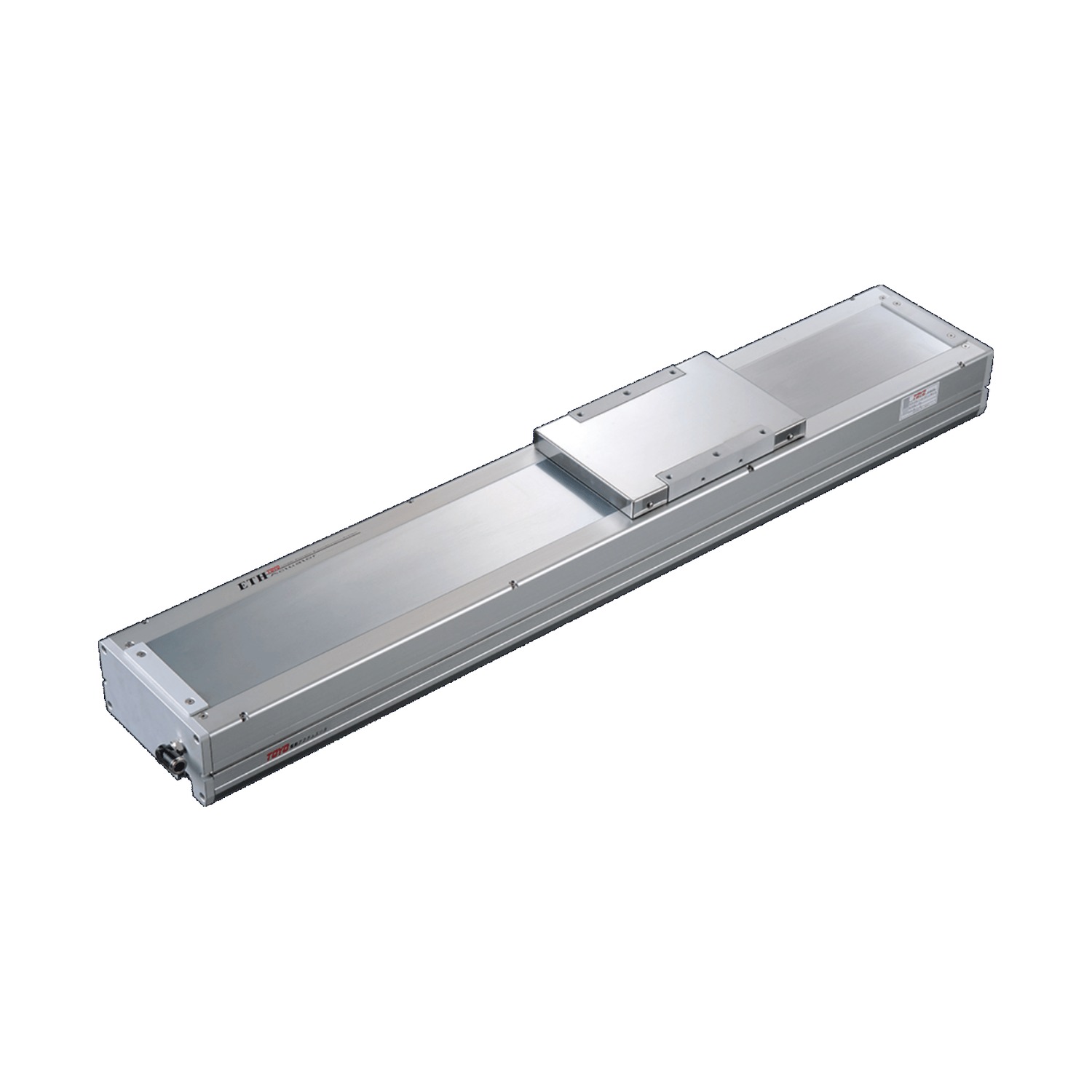

TOYO Robotics ECH Series Actuator
TOYO Robotics ECH Series Actuator
Description
Clean Room Ball Screw Actuators offer great reliability and are built for environments with higher safety standards.
- Repeatability: ± 0.005 (mm)
- Horizontal Maximum Payload from 15kg to150kg
- Vertical Maximum Payload from 7kg to 55kg
- Maximum Speed: 250 mm/sec to 2000 mm/sec
- Available Stroke Lengths: 50-1500 mm
ECH Series
**This is the CLEAN Room Version Ball Screw Driven Actuator, designed for Class 100 environments**
The ECH series actuator by Toyo comes assembled with a high precision ROLLED BALL SCREW – Accuracy class C7 – with preloaded ball nut. It is supported by precision grade recirculating Linear Guides with preloaded carriages to ensure accuracy and stability. The durable aluminum construction offers a strong and stable mounting surface to mount on your assembly. We also offer both TAPPED holes in the mounting base as well as THRU holes to mount from the top.
This actuator can be easily configured for a Cartesian system. All of our actuators come complete with Motor Adaptor Plate and Coupling! This is all included in the price of the actuator. In addition, we offer limit switches that can be mounted on the unit for precise motion control. Our cover plate offers a flush enclosed unit that can prevent pinch points. Stroke lengths can be customized as well as additional carriages.
Need help with an active project? Do you need Sizing/Selection Tools to quickly size the right product? Our team of experienced design engineering, application engineering and custom machining technicians are ready to assist you in the design, selection and implementation of your project. Contact Us Today to learn more about our products and solutions.
Specifications
| Distributed By | Accu Tech USA |
|---|---|
| Brand | TOYO Robotics |
| Series | ECH |
| Selling Unit | Each |
| Country of Origin | Taiwan |
| Color | Gray |
| Material | Aluminum |
| Drive Mechanism | Ball Screw |
