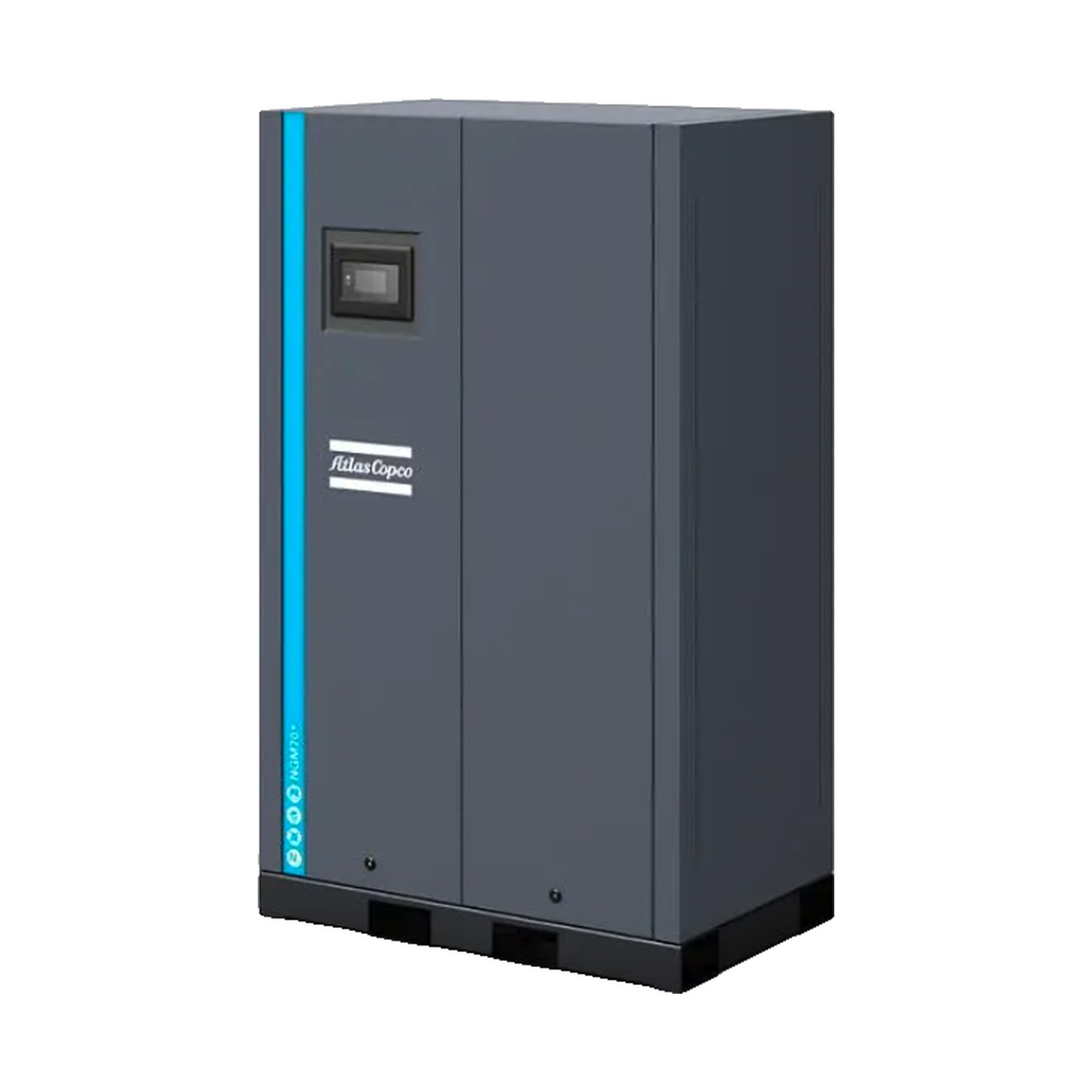

Atlas Copco NGM+ 7-70 Membrane Nitrogen Generator Series
Atlas Copco NGM+ 7-70 Membrane Nitrogen Generator Series
Geographic Restrictions
Notice: This product is subject to geographic restrictions and can only be sold within the following regions: MO and select counties in KS, IL, AR, OK, TX, and LA. Have questions about availability in your area? Fill out our contact form to connect with an agent today.
Description
The Atlas Copco NGM+ 7-70 is a series of ten membrane nitrogen generators that produce nitrogen on site from compressed air without a feed air heater. Purity is selectable from 95 % to 99.5 %, and nitrogen flow across the series runs from 25 to 247 Nm³/h at 95 % purity. All ten models share an Elektronikon Touch controller and a footprint 820 mm wide by 2090 mm high.
- Generation technology: hollow-fibre membrane separation, no feed air heater required
- Nitrogen purity range: 95 % to 99.5 %, selectable at 95, 96, 97, 98, 99 and 99.5 %
- Nitrogen flow rate across the series: 25 to 247 Nm³/h (14.5 to 145 scfm) at 95 % purity
- Nitrogen flow rate across the series: 7.1 to 71 Nm³/h (4.2 to 42 scfm) at 99.5 % purity
- Inlet air pressure: 8 bar(g) (116 psi(g)) reference condition at 20 °C (68 °F)
- Inlet air quality requirement: feed air pressure dew point 3 °C (37 °F), at least 10 °C (18 °F) below inlet air temperature
- Dimensions: 820 mm wide by 2090 mm high; depth 772 mm on NGM 7+ and NGM 14+, 1470 mm on NGM 21+ and above
- Weight across the series: 228 kg (503 lb) on NGM 7+ to 713 kg (1572 lb) on NGM 70+
Specifications
| Brand | Atlas Copco |
|---|---|
| Series | NGM+ 7-70 |
| Selling Unit | Each |
| Country of Origin | Belgium |
