Description

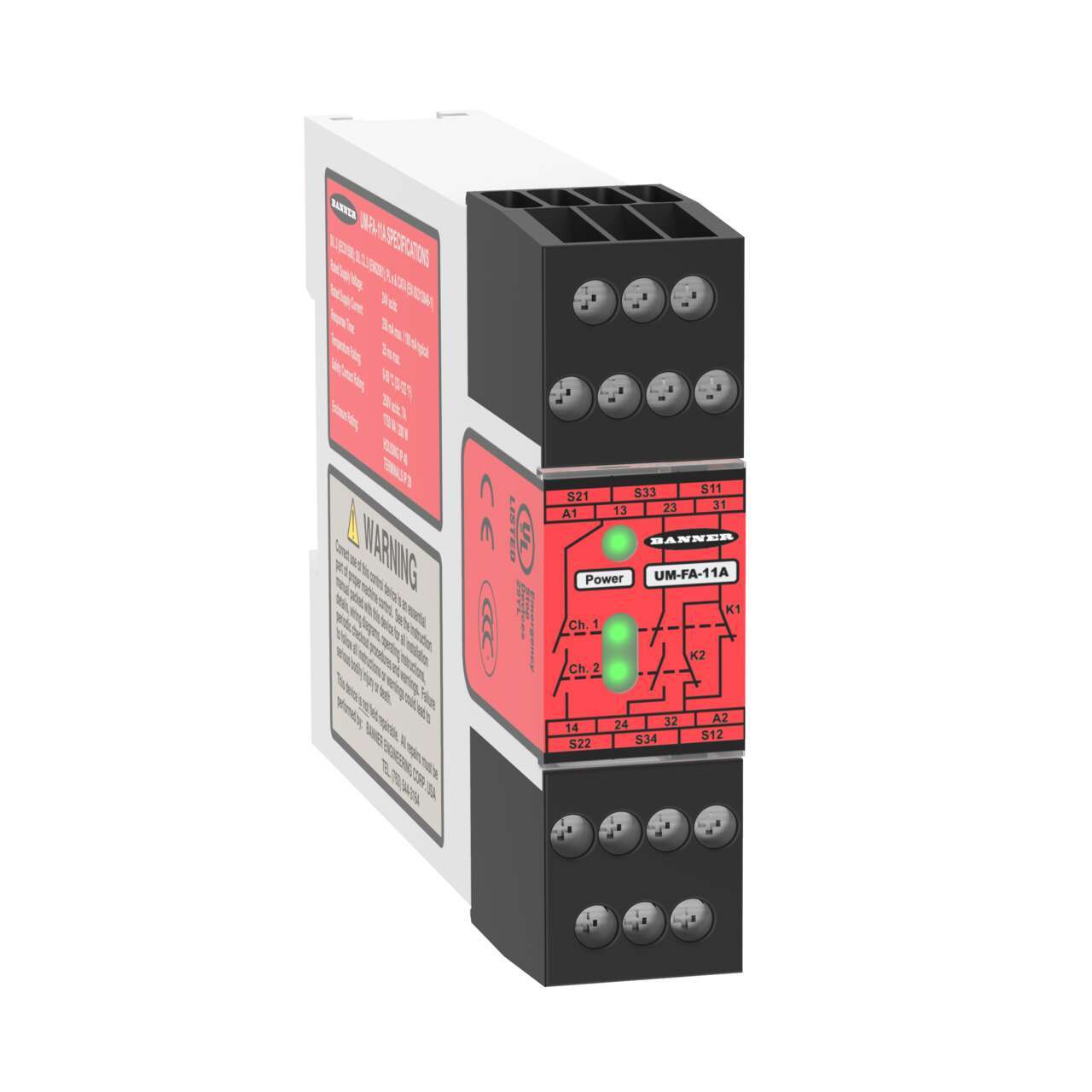

The Banner Engineering UM (part number 81228, model UM-FA-11A) is a universal input safety relay module that monitors a safety light curtain, scanner, e-stop or interlock switch and drives the outputs that remove power from hazardous motion when the safety device trips. It accepts one dual- or single-channel safety input (2 OSSD, 2 NC, or 1 NC) and provides two safety outputs plus one auxiliary output, with self-checking circuitry and a choice of automatic or manual reset. The 22.5 mm wide housing mounts on a standard DIN rail with removable screw terminals.
- Function: universal input safety relay for light curtains, scanners, e-stops, interlocks
- Supply voltage: 24 V AC/DC
- Safety input: 1 dual/single channel (2 OSSD, 2 NC, or 1 NC)
- Safety output: 2 NO, 7 A
- Auxiliary output: 1 NC, 7 A
- Reset: automatic or manual
- Safety rating: SIL 3, PL e
- Terminal block: removable, 22.5 mm width
Specifications
| Brand | Banner Engineering |
|---|---|
| Series | UM |
| Manufacturer Part Number | 81228 |
| Selling Unit | Each |
| Color | Red |
