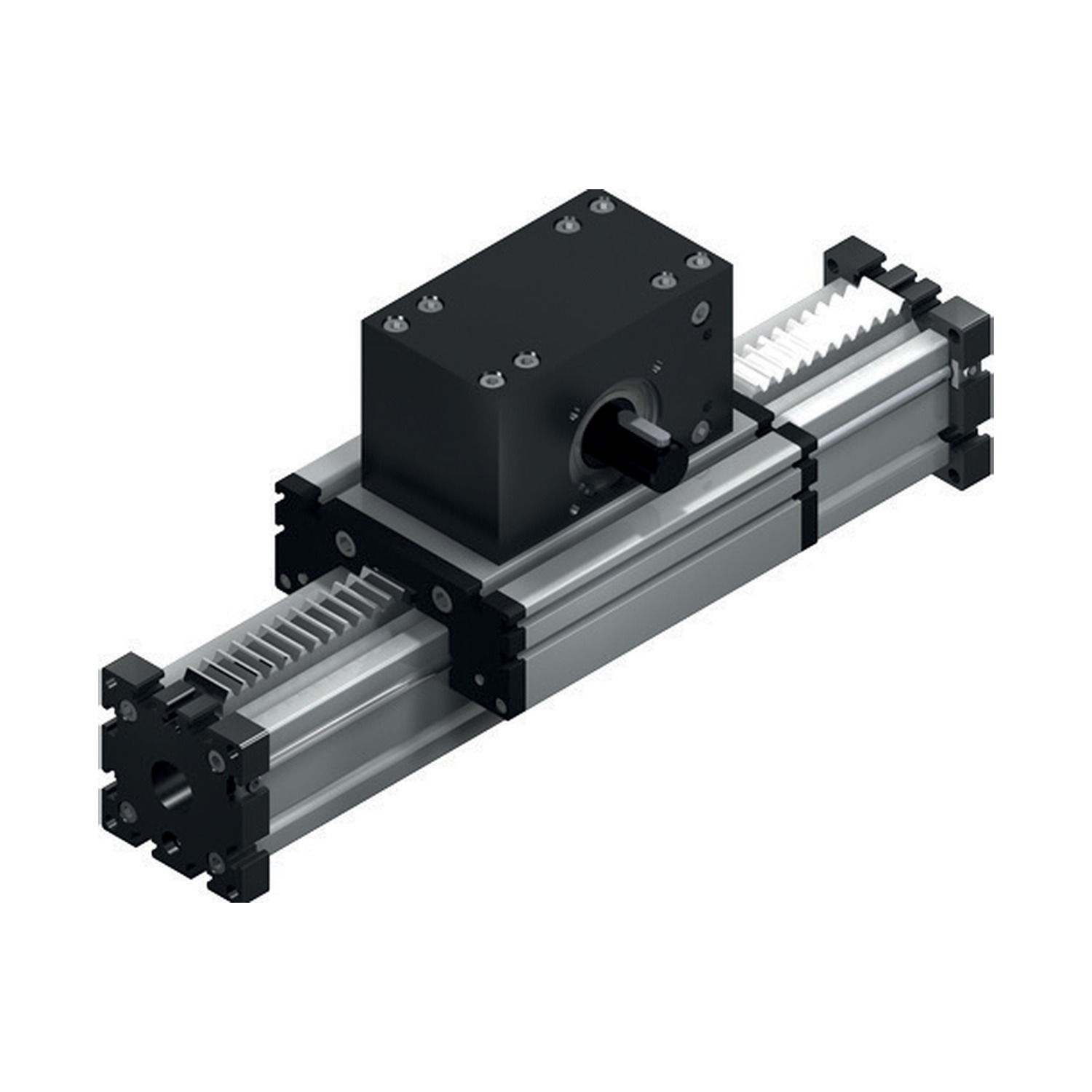

IMI Norgren ELZA/ELDZA Series Linear Axis Actuator
IMI Norgren ELZA/ELDZA Series Linear Axis Actuator
Description
Rack and Pinion driven Linear Axis range with a square, Aluminum profile and integrated hardened steel guide rods.
- The carriage runs on internal linear ball bearings that can be adjusted free of play
- The pinion is equipped with maintenance-free ball bearings
- The ELDZA range includes our new, innovative guiding profile which can be used effectively in combination with standardized toothed racks
- Multiple units can be assembled in series to achieve extended strokes
For Standard Industrial Applications
This unit consists of an aluminum square profile with integrated, hardened steel guide rods. The carriage, which has internal linear ball bearings that can be adjusted free of play, is driven by a rack and pinion. The pinion is equipped with maintenance-free ball bearings.
- Frame Sizes: 40 – 60 – 80 – 100 mm
- Max Length: Up to 6 m (standard)
- Speed: ± 3 m/s
- Max Payload: 2500 N
- Accuracy: ± 0.1 mm
Specifications
| Distributed By | Accu Tech USA |
|---|---|
| Manufacturer Name | IMI Norgren |
| Series | ELZA/ELDZA |
| Selling Unit | Each |
| Country of Origin | Germany |
| Color | Silver |
| Material | Aluminum |
| Drive Mechanism | Rack & Pinion |
