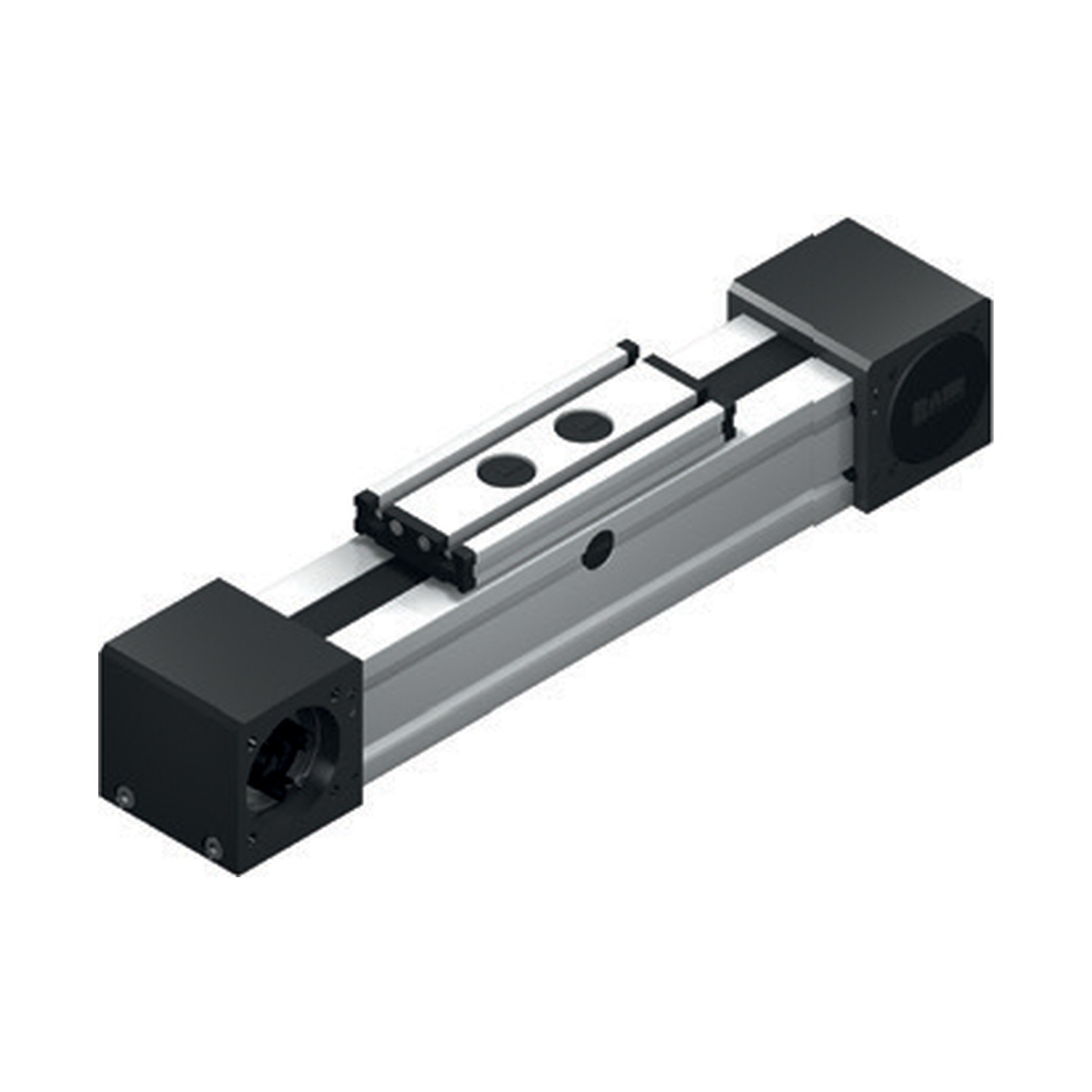

IMI Norgren QLZ Series Linear Axis Actuator
IMI Norgren QLZ Series Linear Axis Actuator
Description
Tooth belt driven Linear Axis range with a square, Aluminum profile and integrated hardened Steel guide rods.
- The carriage is driven by a timing belt and runs on an integrated roller guide
- Each standard pulley includes one coupling claw on one side
- Belt tension can be readjusted by a simple screw adjustment device in the carriage. This can also be used for symmetrical adjustment of two or more linear units running parallel.
- This linear unit is suitable for application in clean rooms of clean-room classification 1.000 (corresponding to US Fed. Standard 209 E).
- Certified for use in Clean room applications (ISO-6)
For High Spec Industrial Applications
This unit consists of a square aluminum profile with an integrated roller guide. The carriage is driven by a timing belt. Each standard pulley includes one coupling claw on one side. Belt tension can be readjusted by a simple screw adjustment device in the carriage. This device can also be used for symmetrical adjustment of two or more linear units running parallel. This linear unit is suitable for application in clean rooms of clean-room classification 1.000 (corresponding to US Fed. Standard 209 E). With this series, multi-part assembled units with long strokes can be realized.
- Frame Sizes: 60 – 80 – 100 mm
- Max Length: Up to 6m (standard)
- Speed: 7 m/s
- Max Payload: 3800 N
- Accuracy: ± 0.1 mm
Specifications
| Brand | IMI Norgren |
|---|---|
| Series | QLZ |
| Selling Unit | Each |
| Country of Origin | Germany |
| Color | Silver |
| Material | Aluminum |
| Drive Mechanism | Belt Drive |
