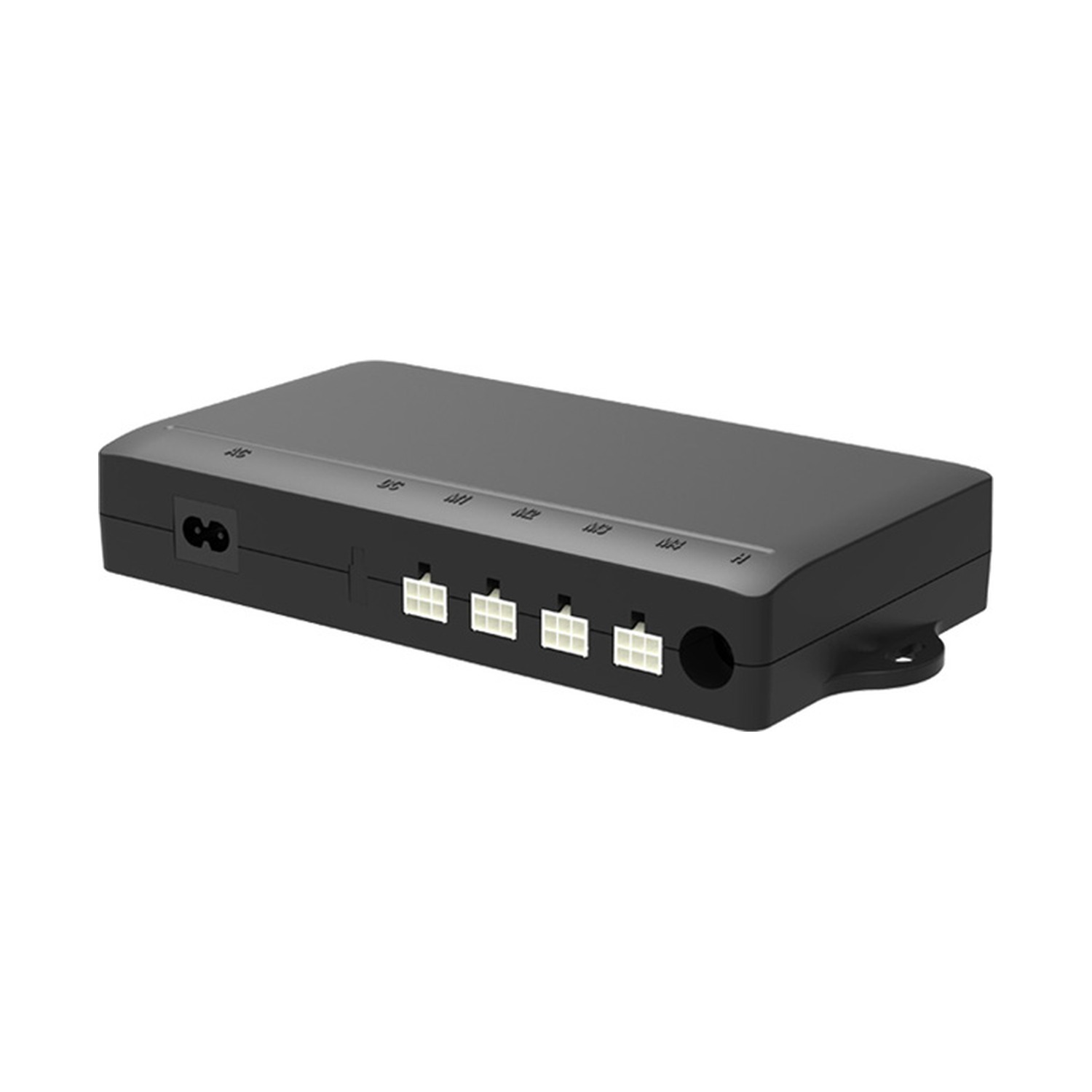

Moteck CF12S Series Control Box
Moteck CF12S Series Control Box
Description
The CF12S control box, developed by Moteck, is programmed to drive 4 actuators synchronously.
- Input voltage: 100 ~ 240V AC, 50/60Hz (SMPS)
- Output voltage: 32V DC
- Power supply: Internal SMPS, 32V/4A
- Max. number of actuators: 4 channels (synchronization)
- Max. number of controls: 1 channel
The CF12S control box, developed by Moteck, is programmed to drive 4 actuators synchronously. With an internal SMPS, the CF12S is lightweight and compact for convenient installation.
The CF12S is ideal for furniture applications, especially when combined with Moteck’s actuators and handsets.
SPECIFICATIONS
- Input voltage: 100 ~ 240V AC, 50/60Hz (SMPS)
- Output voltage: 32V DC
- Power supply: Internal SMPS, 32V/4A
- Max. number of actuators: 4 channels (synchronization)
- Max. number of controls: 1 channel
- Position memory function
- Soft start / stop function
- Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
- IP Level: IP20
- Protection class: Class II
- Color: Black
- Power cord length: 3000mm, straight
Specifications
| Distributed By | Accu Tech USA |
|---|---|
| Brand | Moteck |
| Series | CF12S |
| Selling Unit | Each |
| Country of Origin | Taiwan |
| Color | Black |
| Material | ABS Plastic |
| Subtype | Control Box |
| Input Voltage | 100-240 VAC |
| Output Voltage | 32 VDC |
| Supported Motor Type | Brushed DC |
| Number of Actuators Controlled | 4 |
| Communication Protocol | Wired |
