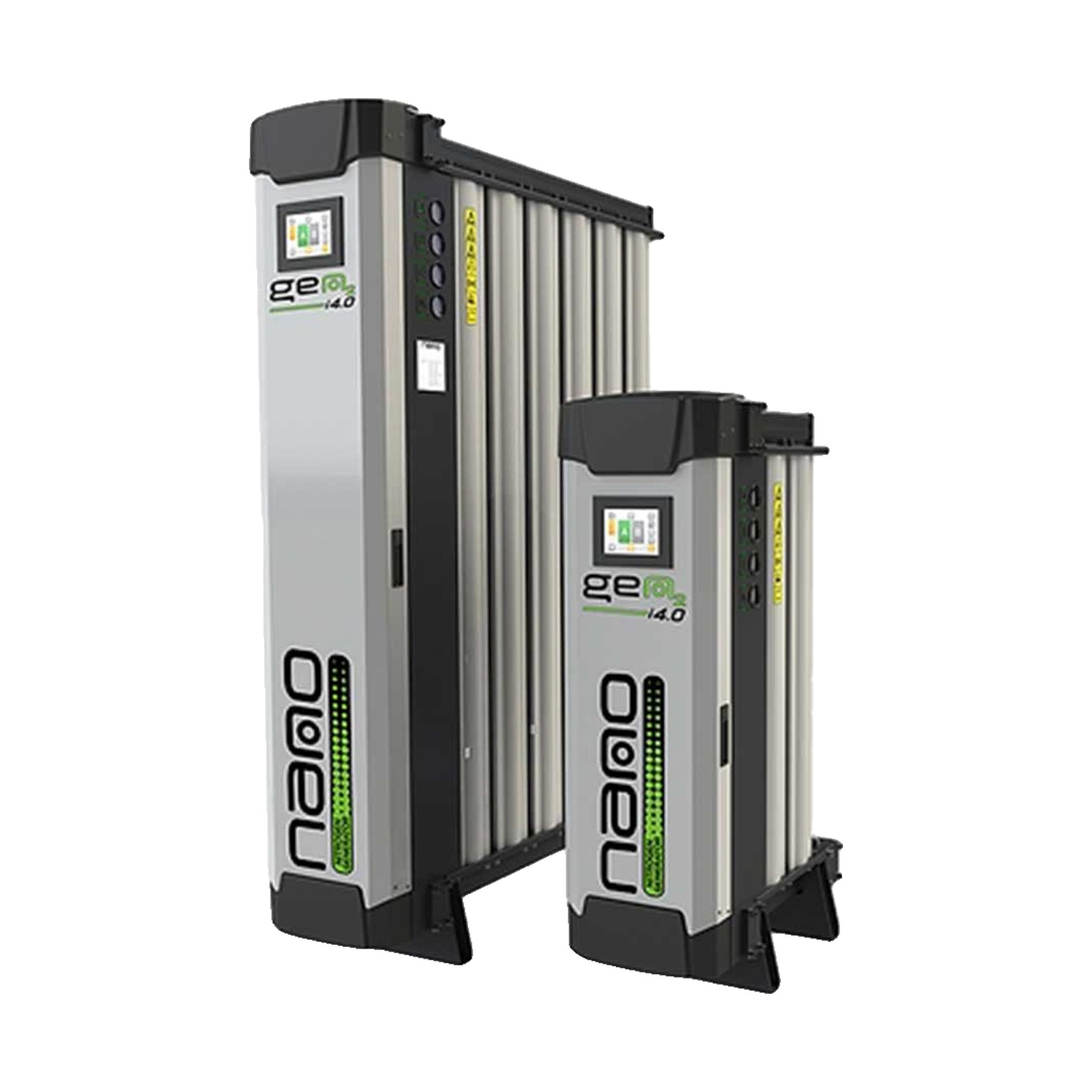

nano GEN2 i4.0-4130 PSA Nitrogen Generator
nano GEN2 i4.0-4130 PSA Nitrogen Generator
Description
The nano GEN2 i4.0-4130 is a pressure swing adsorption nitrogen generator that produces nitrogen on site from compressed air. Purity is selectable from 95 % to 99.999 %, delivering 2649 scfh at 95 % and 360 scfh at 99.999 %. A PLC controller with a 5.7 in touchscreen handles operation and monitoring, with Modbus TCP/IP communications available.
- Generation technology: PSA (pressure swing adsorption)
- Nitrogen purity range: 95 % to 99.999 %
- Nitrogen flow rate: 2649 scfh at 95 %, 1335 scfh at 99.5 %, 360 scfh at 99.999 %
- Operating pressure: 87 to 174 psig (232 psig option available in the USA)
- Inlet air quality requirement: ISO 8573-1 class 2.2.1
- Connections: 1 in NPT compressed air inlet and nitrogen outlet to buffer; 1/2 in NPT return and final outlet
- Electrical supply: 100 to 240 V AC, 50 or 60 Hz
- Dimensions: 72 in by 16 in by 44 in; weight 922 lb; enclosure IP31 / NEMA 2
Specifications
| Distributed By | JHFOSTER |
|---|---|
| Brand | nano-purification solutions |
| Series | GEN2 i4.0 |
| Manufacturer Part Number | GEN2 i4.0-4130 |
| Selling Unit | Each |
