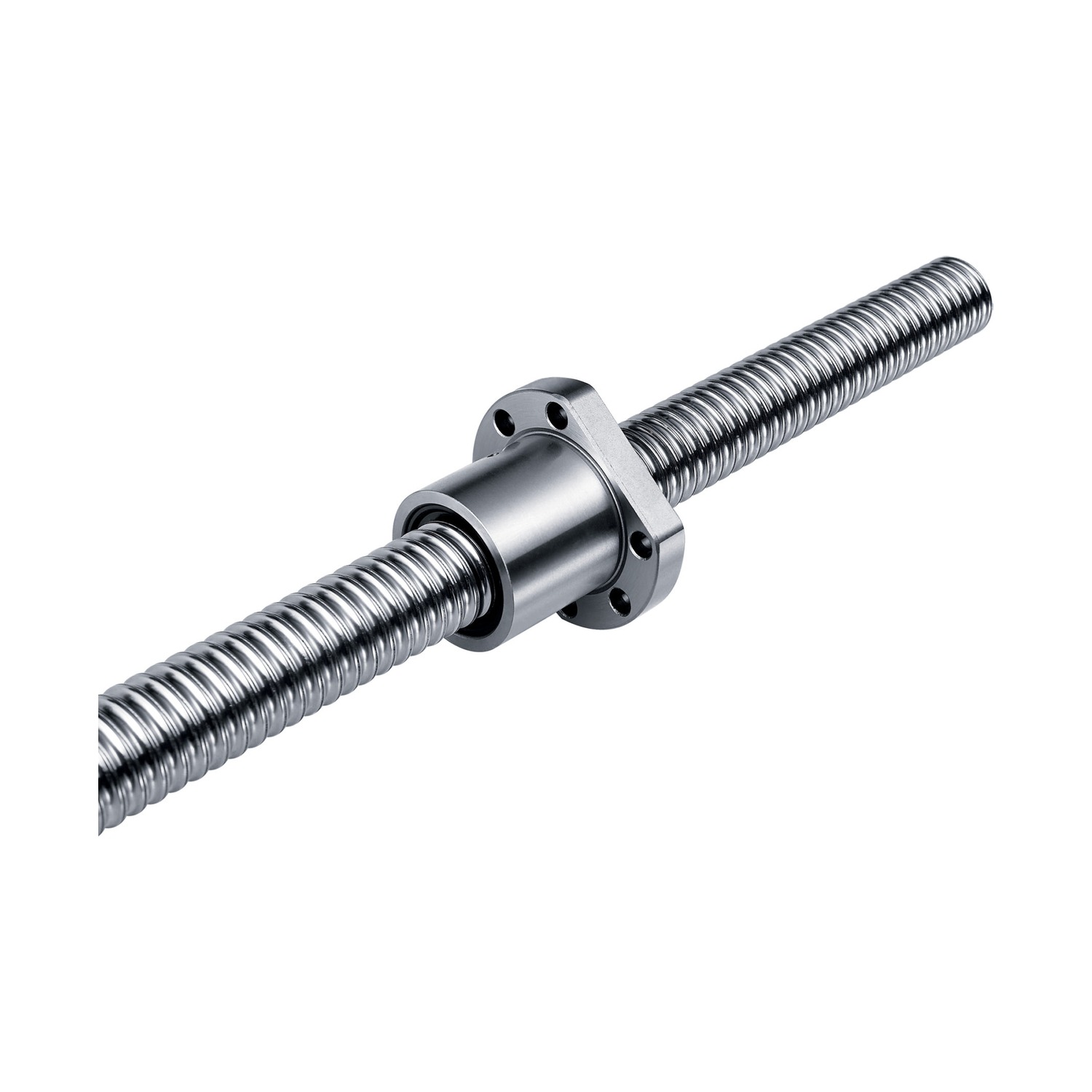

PMI FSIN Series Standard Rolled Ball Screw
PMI FSIN Series Standard Rolled Ball Screw
Description
The Standard High Precision Rolled Ball Screw series offer strong accuracy and performance reliability.
– Screw Diameters: 12 – 50 mm
– Lead Lengths: 4 – 40 mm
– Stiffness: 9 – 103 kgf/um
The Standard Rolled Ball Screw series are manufactured, assembled and inspected at a 20°C constant temperature control, offer higher accuracy and reliability as compared to other ball screw manufactures. Our High Precision Rolled Ball Screws are manufactured in C5 to C10 lead error class accuracies. Using high-grade alloy steels, our Ball Screws provide superior rigidity and long durability. Easily transmitting rotary motion to linear motion, the rotating balls inside the ball nut create a highly efficient ball requiring only 1/3 of driving torque compared to traditional ACME screws. All of our ball screws can be provided with custom machining per print and preloaded to your specification. Custom lubrication options are available and we can easily provide machine axis “kits” paired with linear guides per machine.
Specifications
| Distributed By | Accu Tech USA |
|---|---|
| Brand | PMI |
| Series | FSIN |
| Selling Unit | Each |
| Country of Origin | Taiwan |
| Color | Gray |
| Accuracy Grade | C7 |
| Thread Direction | Right-Hand |
| Nut Type | Flanged |
