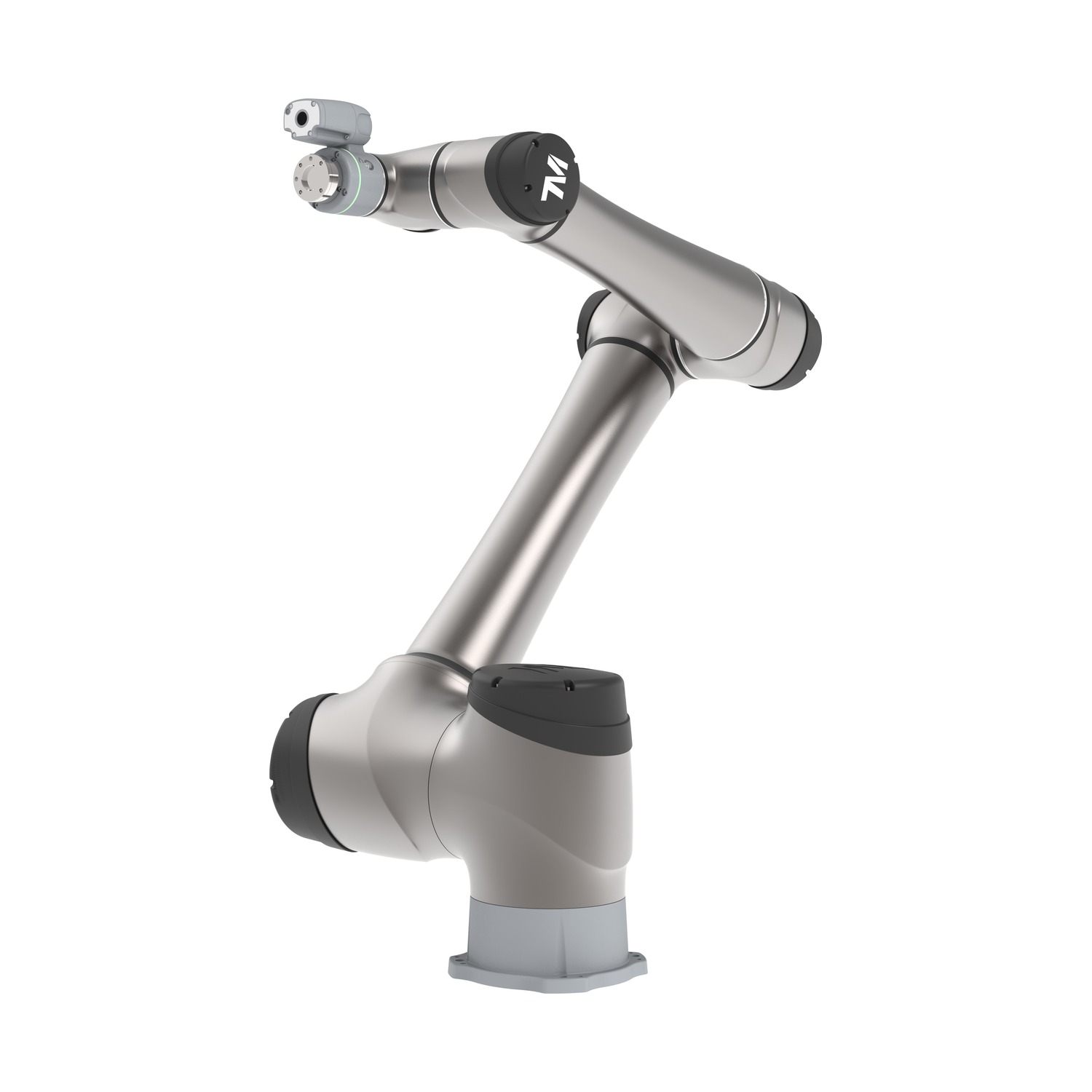

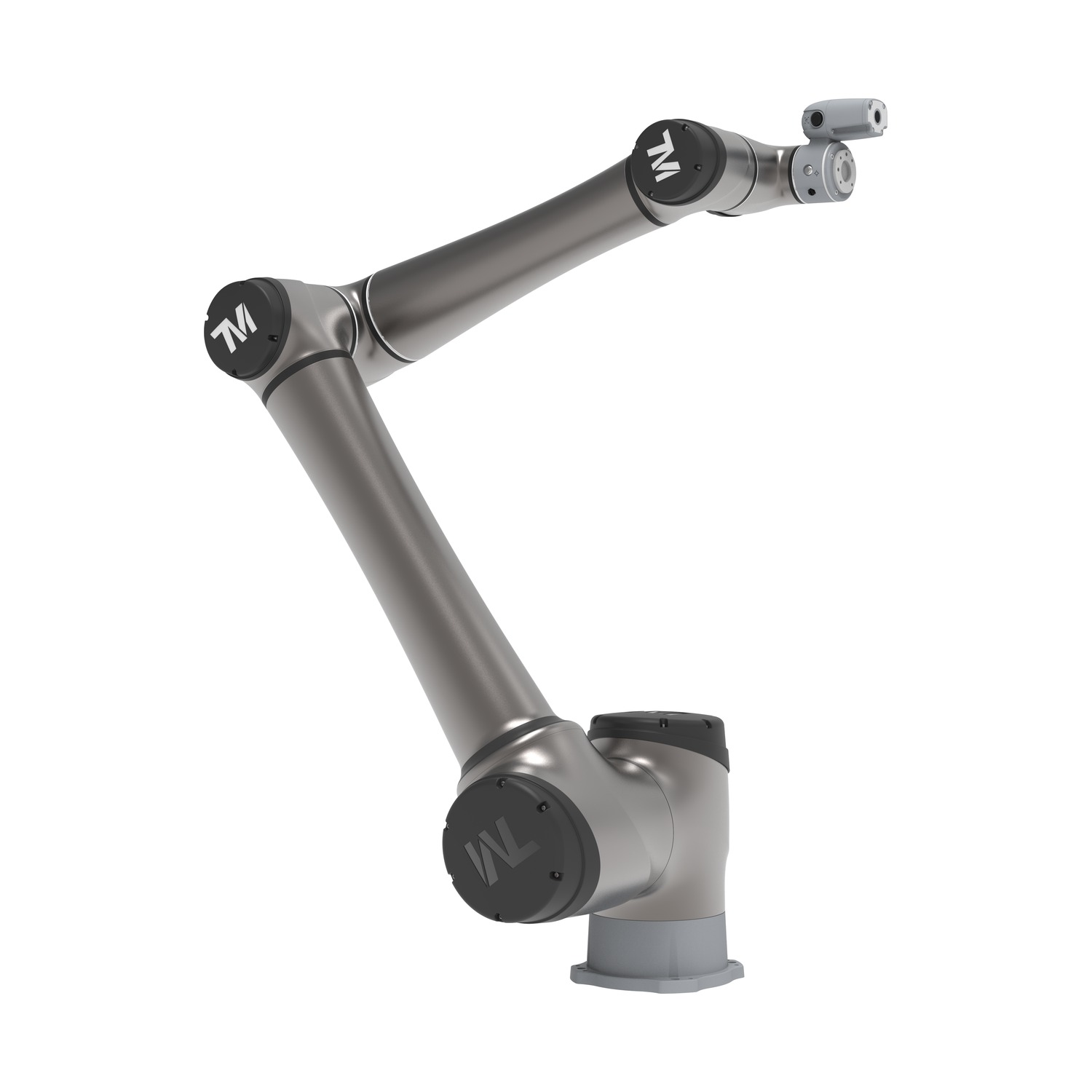

The Techman Robot TM30S is the highest-payload model in the TM AI Cobot S Series, offering a 30 kg payload with a 1702 mm reach on a heavy-duty, floor-scale platform. Built on Techman’s AI-native collaborative platform, it combines integrated machine vision and collaborative safety with the muscle needed for the most demanding handling and palletizing tasks.

Key specifications:
• Maximum payload: 30 kg
• Maximum reach: 1702 mm
• Repeatability: +/- 0.05 mm
• Degrees of freedom: 6 rotating joints
• Maximum TCP speed: 4.5 m/s
• Approximate arm weight: 81.1 kg

Platform and software:
• Built-in AI vision system offering classification, object detection, segmentation, anomaly detection and AI OCR, plus 1D/2D barcode reading and an auto-focused 5 MP color camera
• Programmed with TMflow flowchart-based software, with TMscript and TMcraft available for scripting and advanced developer control
• Communicates over RS-232/RS-422/RS-485, Ethernet and Modbus TCP/RTU, with optional PROFINET, EtherNet/IP, EtherCAT and CC-Link network cards
• Control box I/O: 16 digital in / 16 digital out and 2 analog in / 2 analog out; tool I/O: 3 digital in / 3 digital out
• IP65-rated robot arm and IP54-rated control box; operating temperature 0 to 50 C; ISO Class 3 cleanliness
• Certified to TUV ISO 13849-1, ISO 10218-1 and ISO/TS 15066, plus SGS UL1740 and CAN/CSA Z424-14; NSF/ANSI 169 and SEMI S2 available as options

Typical applications:
• Heavy-duty palletizing, material handling and large-part machine tending

Distributed By	Accu Tech USA
Manufacturer Name	Techman Robot
Series	TM30S
Selling Unit	Each
Country of Origin	Taiwan
Color	Black
Subtype	Collaborative Robot (Cobot)
Input Voltage	200-240V AC
Maximum Payload (lb)	66.14
Maximum Payload (kg)	30.00
Maximum Reach (mm)	1,702.00
Degrees of Freedom	6-Axis
Repeatability	± 0.05 mm
Integrated Vision System	Yes
IP Rating	IP65

Technical Data Sheet
