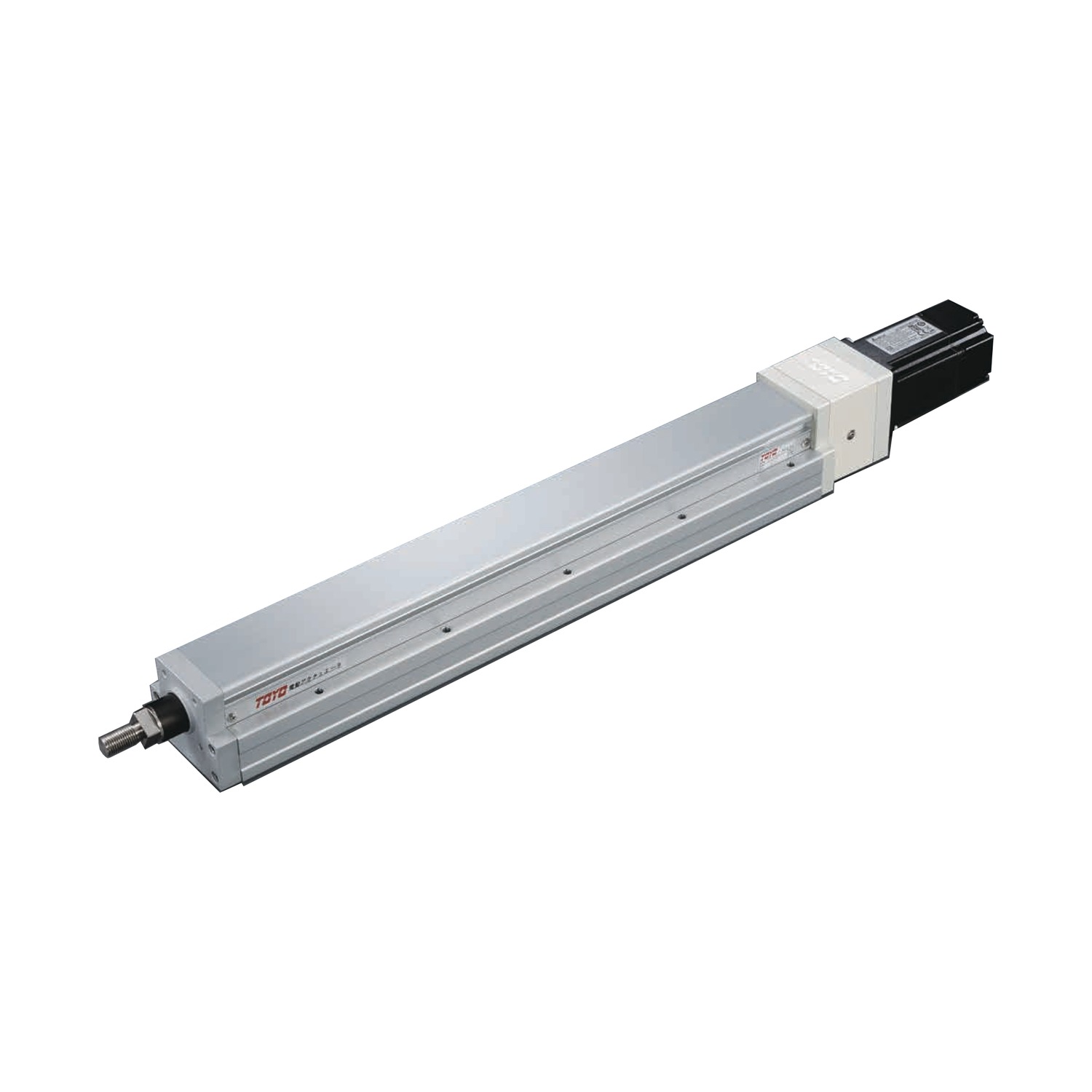

TOYO Robotics GTY Series Actuator
TOYO Robotics GTY Series Actuator
Description
The GTY series, an internally guided rod style actuator, builds upon the design improvements of the GTH model, and completely replaces the previous Y series from Toyo.
- Repeatability: +0.01 (mm)
- Horizontal Range 12kg to 110kg
- Vertical Range 2kg to 33kg
- Maximum Speed: 1600mm/s (w/ 32mm lead)
- Available Stroke Lengths: 50-800 mm
Max Thrust: 1388N
* All ratings based on 10,000km travel life
The GTY series, an internally guided rod style actuator, builds upon the design improvements of the GTH model, and completely replaces the previous Y series from Toyo. By introducing a rod style actuator, or electric cylinder, with integrated linear bearing, this unit is suitable for many cylinder thrust applications without the need for external guidance. The GTY offers all of the same features of the GTH in a rod style package.
Built-in linear rail design, straightness and flatness are highly improved to +0.02mm
Actuator body and carriage are made from steel to improve system rigidity
Standard rod seal design prevents ingress and egress of dust, debris, and other foreign objects
Single exterior grease port for ball screw and linear guide
Repeatability: +0.01 (mm)
Horizontal Range 12kg to 110kg
Vertical Range 2kg to 33kg
Maximum Speed: 1600mm/s (w/ 32mm lead)
Available Stroke Lengths: 50-800 mm
Max Thrust: 1388N
* All ratings based on 10,000km travel life
Specifications
| Distributed By | Accu Tech USA |
|---|---|
| Manufacturer Name | TOYO Robotics |
| Series | GTY |
| Selling Unit | Each |
| Country of Origin | Taiwan |
| Color | Gray |
| Material | Steel |
| Drive Mechanism | Ball Screw |
