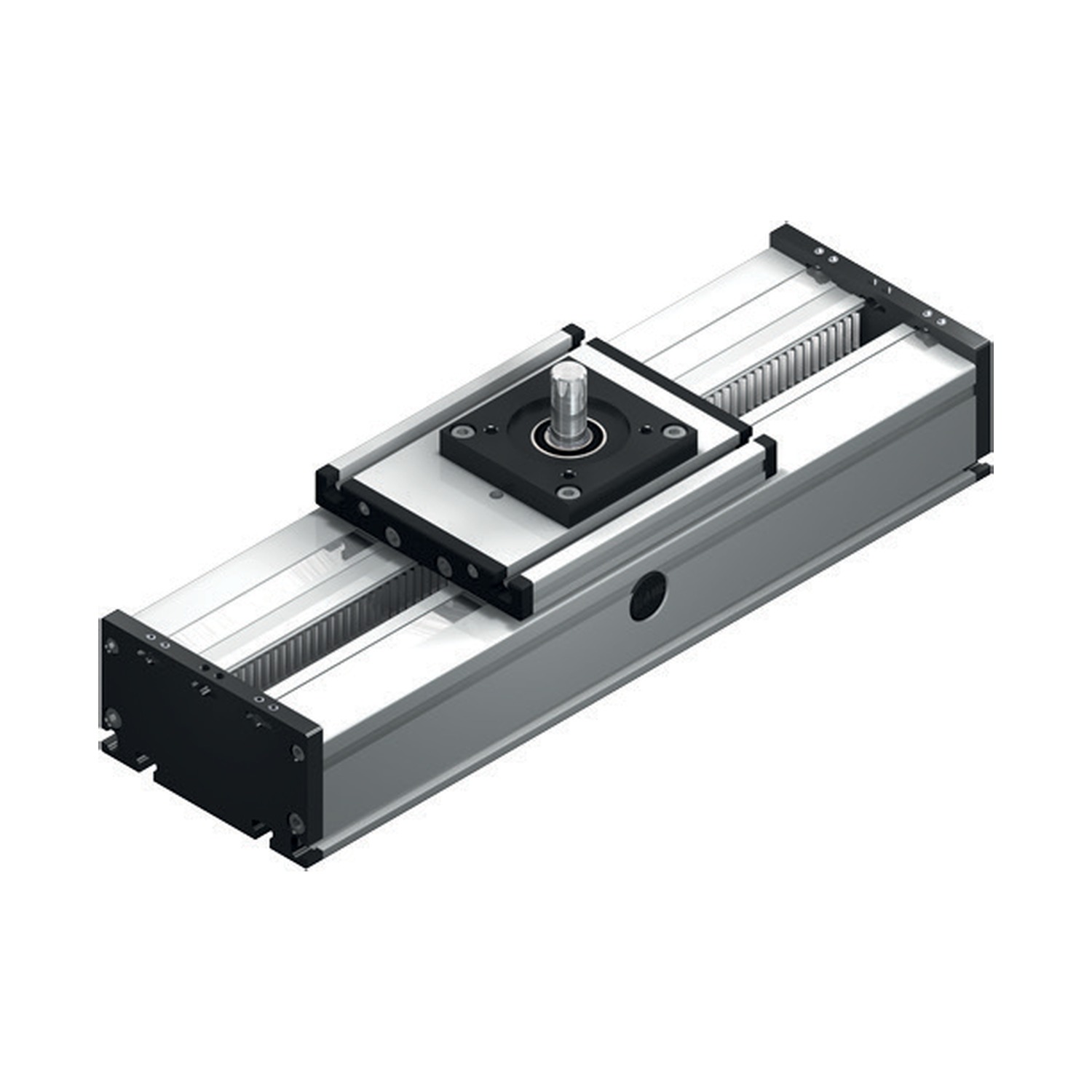

IMI Norgren DLZA Series Linear Axis Actuator
IMI Norgren DLZA Series Linear Axis Actuator
Notice: This product is subject to geographic restrictions and can only be sold within the following regions: MN, ND, SD, and select counties in WI and IA. Have questions about availability in your area? Fill out our contact form to connect with an agent today.
Description
Rack and Pinion driven Linear Axis range with a rectangular Aluminum profile and integrated, hardened steel guide rods.
- Twin integrated roller guides ensure this range is suited to heavy duty applications with heavy loads
- The carriage runs on internal linear ball bearings that can be adjusted free of play and is driven along the guide rods by a high precision rack
- The pinion is equipped with maintenance-free ball bearings
- The rack and pinion system is suitable for highly dynamic servo operation and ideal for lifting applications
- Multiple units can be assembled in series to achieve extended strokes
For Heavy Duty Industrial Applications
This unit consists of a rectangular aluminum profile with 2 integrated roller guides. The carriage, which has internal linear ball bearings that can be adjusted free of play, is driven along the guide rods by a high precision rack. The rack and pinion system is suitable for highly dynamic servo operation and ideal for lifting movements. The pinion is equipped with maintenance-free ball bearings. The rack is lubricated by a toothed felt wheel. With this series, multi-part assembled units with long strokes can be realized.
- Frame Sizes: 160 – 200 mm
- Max Length: Up to 6 m (standard)
- Speed: 5 m/s
- Max Payload: 3800 N
- Accuracy: ± 0.1 mm
Specifications
| Distributed By | Accu Tech USA, JHFOSTER |
|---|---|
| Brand | IMI Norgren |
| Series | DLZA |
| Selling Unit | Each |
| Country of Origin | Germany |
| Color | Silver |
| Material | Aluminum |
| Drive Mechanism | Rack & Pinion |
