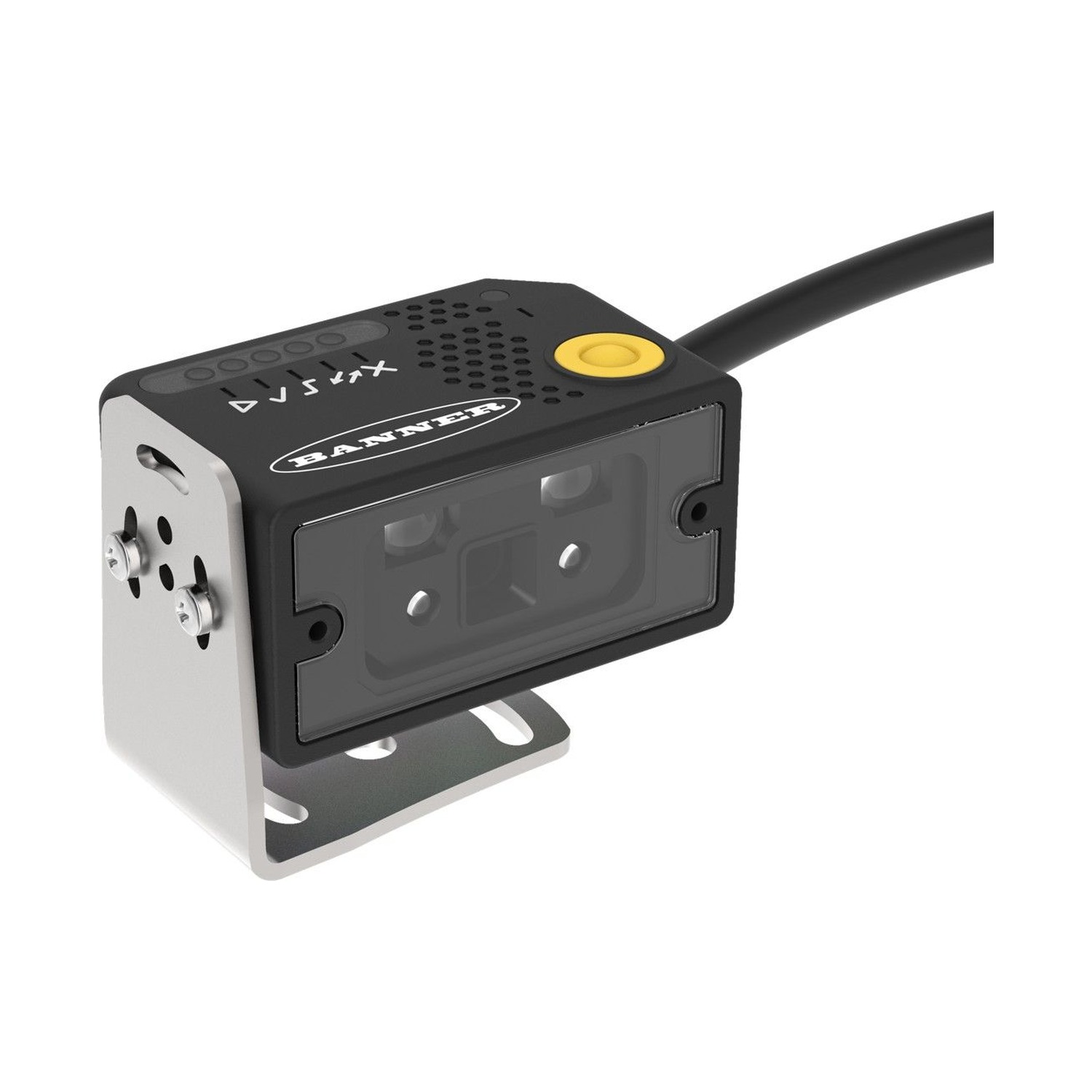

Banner Engineering ABR3000 Imager-Based Barcode Reader
Banner Engineering ABR3000 Imager-Based Barcode Reader
Description
The Banner Engineering ABR3000 is the entry-level tier of Banner’s imager-based barcode reader line, reading 1D and 2D codes including Data Matrix and QR at up to 1.2 MP resolution with fixed manual-focus lenses. It suits general track-and-trace jobs such as label, carton and document reading where autofocus and long-range DPM performance are not required, and it shares the same Barcode Manager software and industrial Ethernet protocols as Banner’s higher-tier readers.
- Function: entry-level imager-based barcode reader, 1D/2D codes
- Resolution: 752 x 480 px (WVGA) or 1280 x 960 px (1.2 MP), depending on model
- Lens: 6 mm or 9 mm, manual focus
- Lighting: internal illuminator, polarized option on 1.2 MP models
- Communication: EtherNet/IP, Modbus TCP, SLMP, PROFINET, serial (RS232/RS422), USB 2.0
- Housing rating: IP65
Specifications
| Distributed By | Seltrol, Sensors Incorporated |
|---|---|
| Brand | Banner Engineering |
| Series | ABR3000 |
| Selling Unit | Each |
