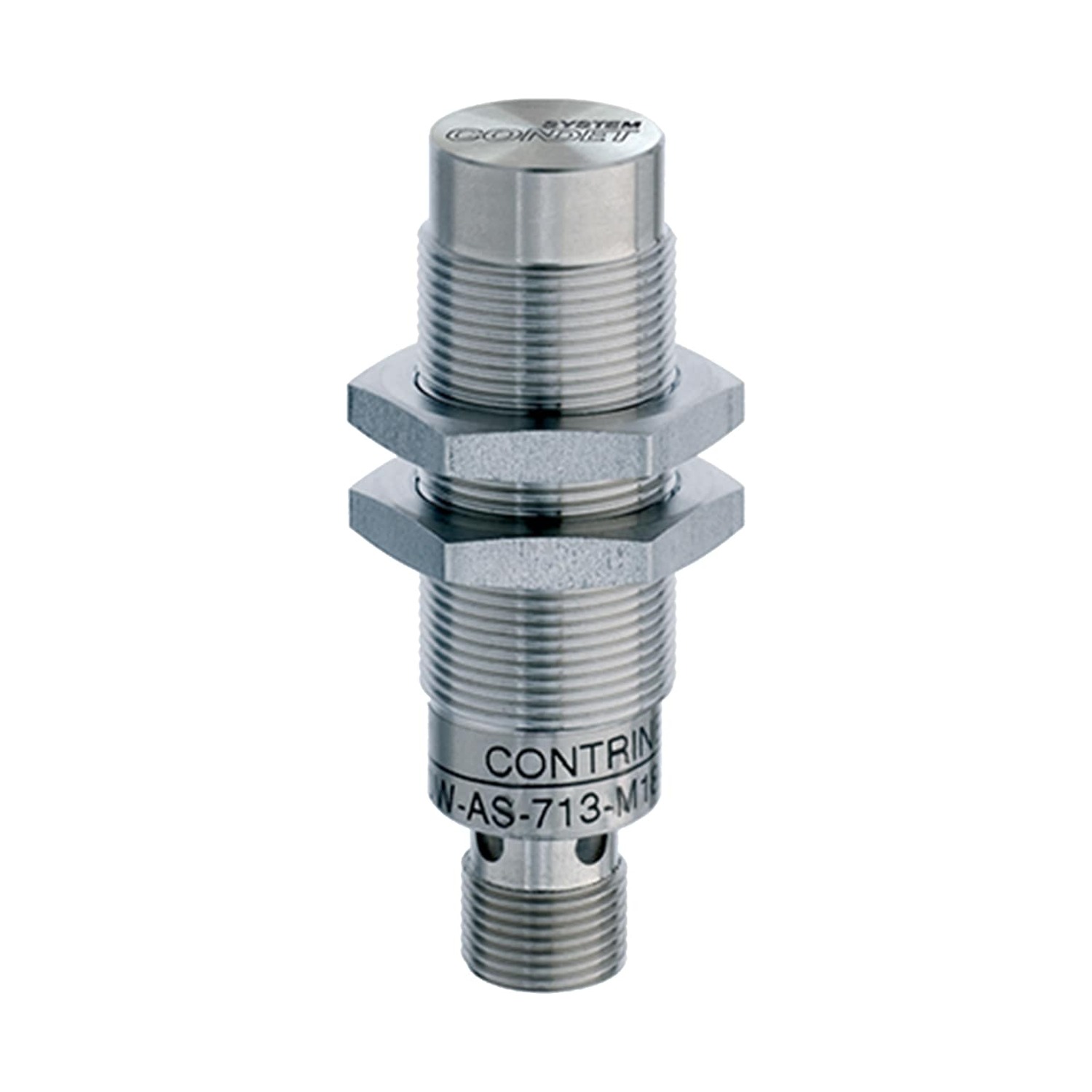

Contrinex DW-AS-713-M18-002 Inductive Proximity Sensor
Contrinex DW-AS-713-M18-002 Inductive Proximity Sensor
Description
The Contrinex DW-AS-713-M18-002 is a full-metal, non-flush inductive proximity sensor in an 18 mm threaded stainless steel barrel from the “Full Inox” 700 series. It detects ferrous and non-ferrous metal targets and switches a PNP normally-open output, and its extended non-flush range suits detection in harsh, wash-down or weld-adjacent environments. The stainless steel V2A housing carries an IP68/IP69K rating.
- Sensing mode: inductive, non-flush mounting
- Sensing distance: 20 mm
- Supply voltage: 10 to 30 V DC
- Switching frequency: 200 Hz
- Output: PNP, normally open (NO)
- Connection: 4-pin M12 quick-disconnect
- Housing: 18 mm stainless steel V2A threaded barrel, IP68, IP69K
- Temperature rating: -25 to 70 °C
Specifications
| Distributed By | Seltrol, Sensors Incorporated |
|---|---|
| Brand | Contrinex |
| Manufacturer Part Number | DW-AS-713-M18-002 |
| Selling Unit | Each |
