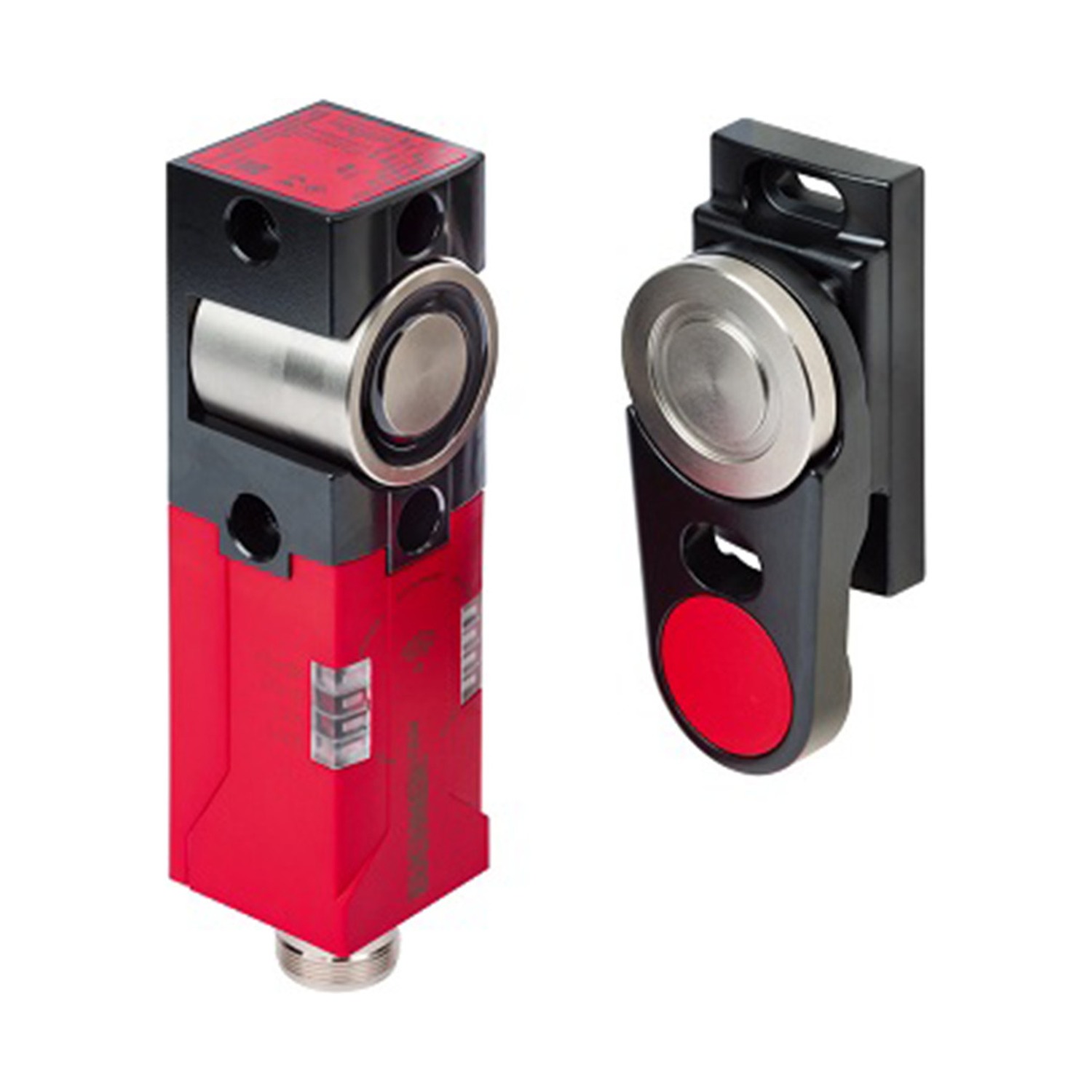

Euchner CEM-AR-C40 Safety Switch with Guard Locking
Euchner CEM-AR-C40 Safety Switch with Guard Locking
Description
The Euchner CEM-AR-C40 is a transponder-coded safety switch with guard locking, combining a coded read head, evaluation electronics and a locking solenoid in one housing so no separate evaluation unit is needed. It holds a guard shut with a 600 N locking force until the safety circuit permits release, and reports status over five dedicated outputs so a PLC can distinguish a closed guard from a locked one. Because the switch has no actuator insertion opening, dust and debris cannot collect in it, which suits process and hygienic applications.
- Coding: transponder (RFID), Unicode or Multicode evaluation
- Locking force: 600 N
- Holding force (adjustable): 0 N, 30 N (default) or 50 N
- Safety category: Category 4, PL e per EN ISO 13849-1
- Outputs: 2 safety channels, door monitoring, diagnostics, guard-lock monitoring
- Connection: M23, 19-pin
- Indicators: 4 status LEDs (power, state, diagnostics, lock)
Specifications
| Distributed By | Seltrol, Sensors Incorporated |
|---|---|
| Brand | Euchner |
| Series | CEM |
| Manufacturer Part Number | CEM-AR-C40 |
| Selling Unit | Each |
