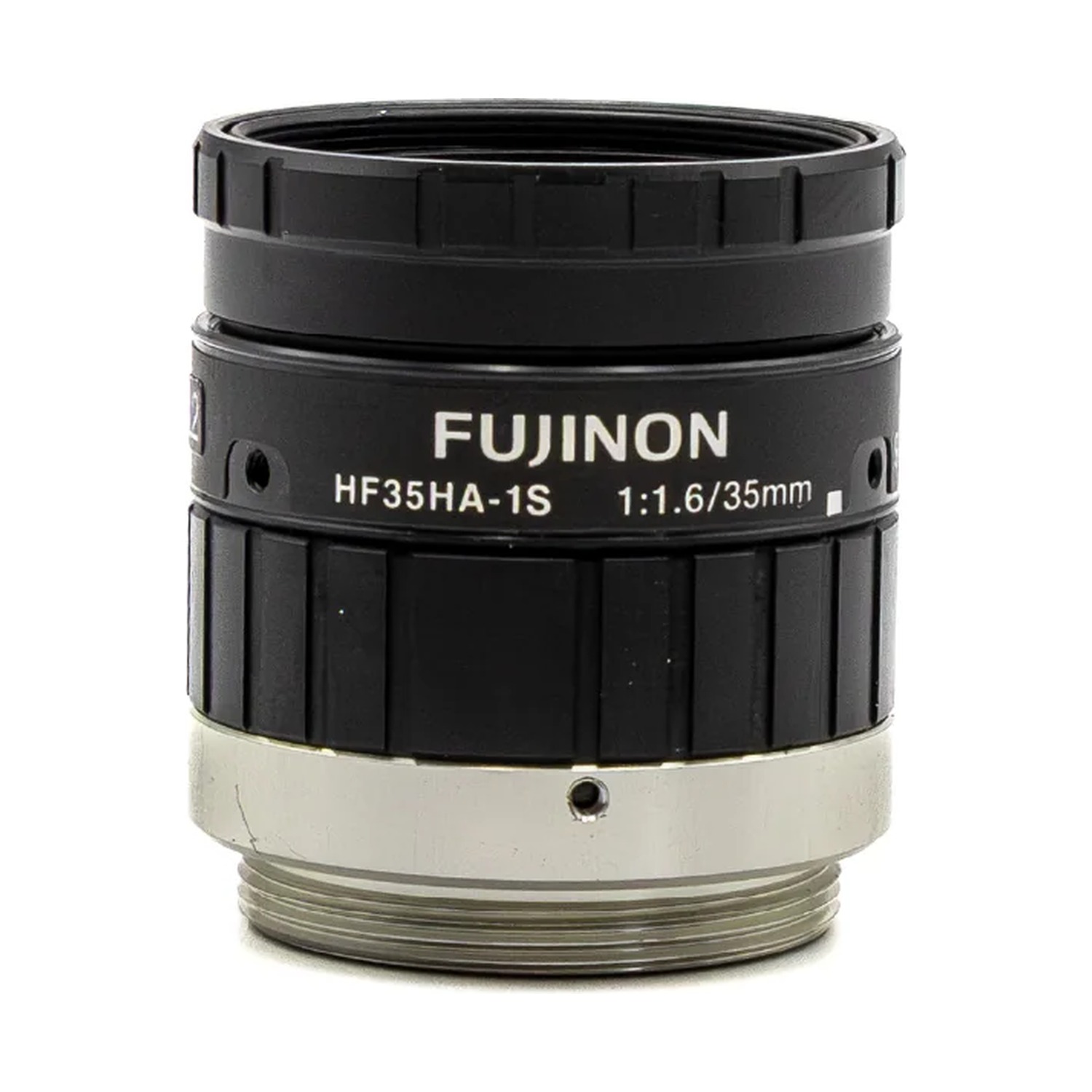

Fujinon HF35HA-1S 35 mm Machine Vision Lens (2/3 in., f/1.6, C-Mount)
Fujinon HF35HA-1S 35 mm Machine Vision Lens (2/3 in., f/1.6, C-Mount)
Description
The Fujinon HF35HA-1S is a 35 mm C-mount lens from Fujifilm’s HF-HA-1S machine vision series, built for 2/3 in sensors with pixel pitch down to 6.2 um. Its anti-shock, anti-vibration construction holds focus and iris settings under factory-floor vibration, and the manual iris stops down to f/22 for extra depth of field in bright, high-contrast inspection scenes.
- Focal length: 35 mm
- Aperture range: f/1.6 to f/22
- Sensor format: 2/3 in (6.2 um pixel pitch)
- Mount: C-mount
- Working distance: 250 mm to infinity
- Filter thread: M25.5 x 0.5
- Distortion: 0.10%
- Dimensions: 29.5 mm diameter x 29.5 mm, approximately 40 g
Specifications
| Distributed By | Sensors Incorporated |
|---|---|
| Brand | Fujinon |
| Series | HF-HA-1S Series |
| Manufacturer Part Number | HF35HA-1S |
| Selling Unit | Each |
