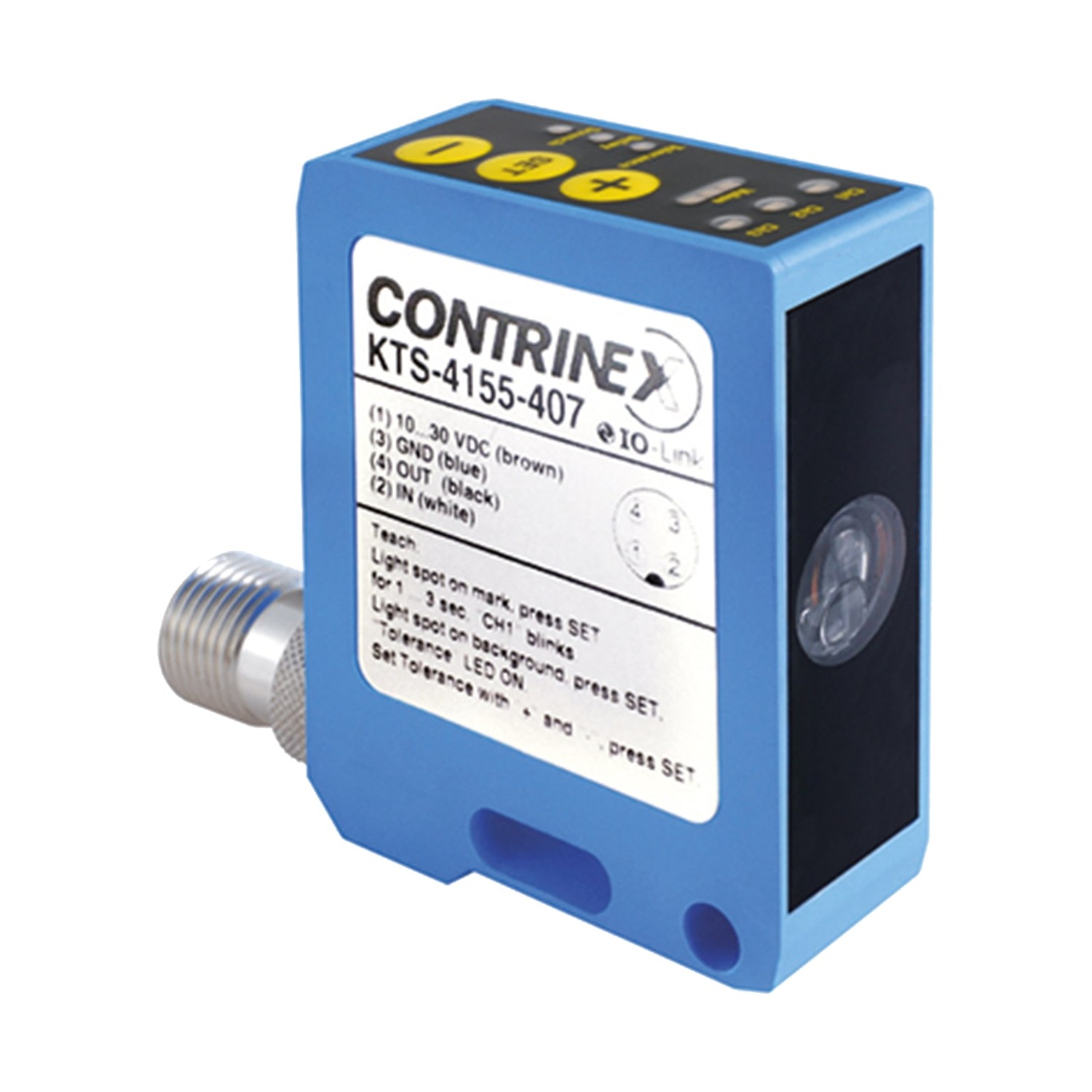

Contrinex KTS-4155-407 Contrast Sensor
Contrinex KTS-4155-407 Contrast Sensor
Description
The Contrinex KTS-4155-407 is a contrast sensor that uses RGB LED emission to automatically select the best light color for distinguishing marks or labels from their background. It teaches in up to 5 switching tolerance levels and holds a fixed sensing distance of 12 mm, switching at speeds up to 10 kHz with an adjustable delay timer. The M12 connector rotates to 0, 45 or 90 degrees, and the push-pull output supports IO-Link communication.
- Sensing mode: RGB contrast sensing with automatic color selection
- Sensing distance: 12 mm ± 2 mm
- Switching frequency: up to 10 kHz
- Output: push-pull, IO-Link
- Supply voltage: 10 to 30 V DC
- Connection: M12, 4-pin, adjustable at 0, 45 or 90 degrees
- Temperature range: -5 to 55 °C
- Enclosure rating: IP67
Specifications
| Distributed By | Seltrol, Sensors Incorporated |
|---|---|
| Brand | Contrinex |
| Manufacturer Part Number | KTS-4155-407 |
| Selling Unit | Each |
