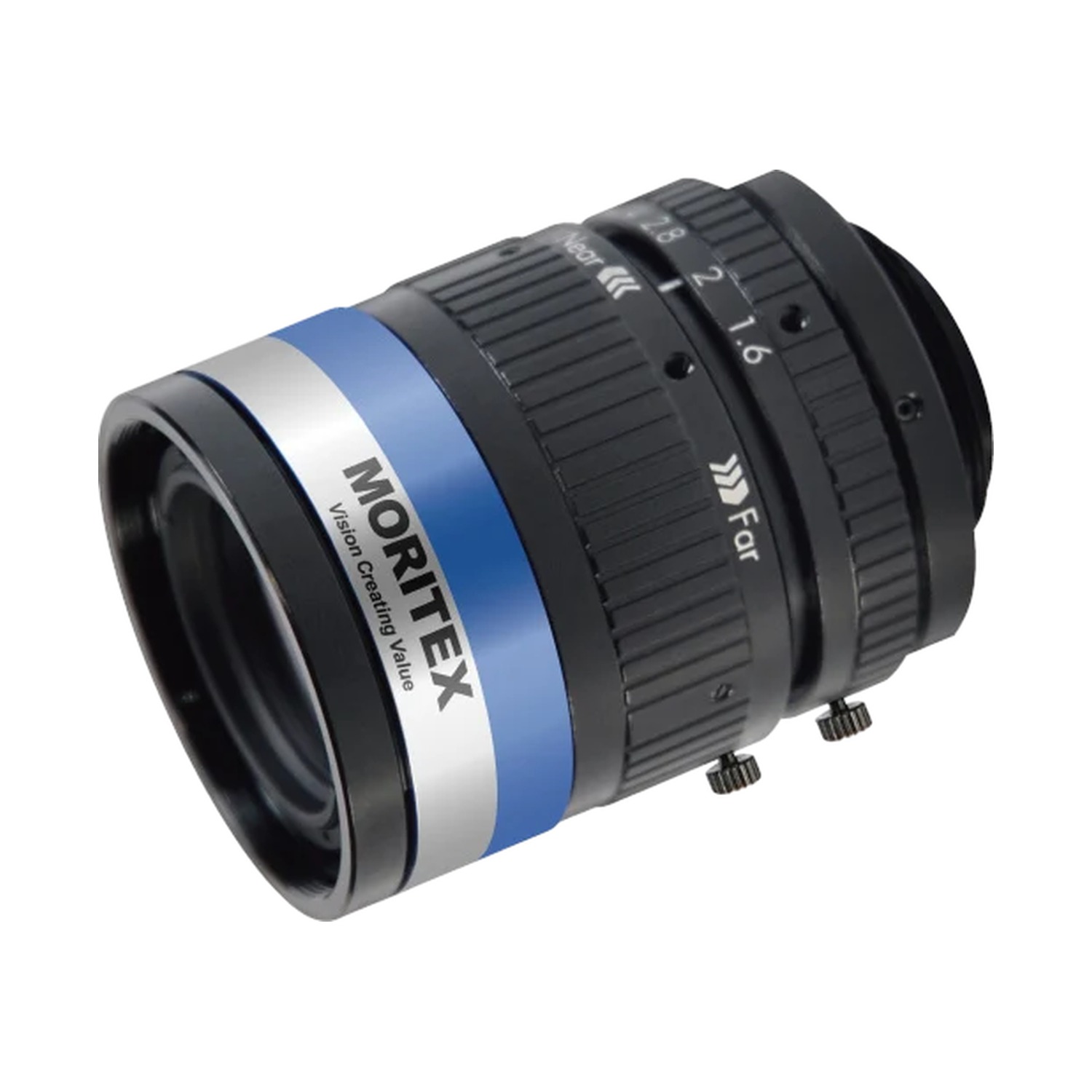

Moritex ML-U12177SR-18C Machine Vision Lens
Moritex ML-U12177SR-18C Machine Vision Lens
Description
The Moritex ML-U1217SR-18C is a 12 mm C-mount lens from Moritex’s ML-U-SR series, built for 1.1 in format sensors up to 12 MP with 3.5 um pixel pitch. A minimum f/1.7 aperture and floating focus mechanism hold sharpness and low distortion across its focus range, and a VIS/NIR anti-reflective coating suits both visible and near-infrared machine vision applications.
- Focal length: 12 mm
- Minimum aperture: f/1.7
- Sensor format: 1.1 in, up to 12 MP / 3.5 um pixel pitch
- Mount: C-mount
- Minimum object distance: 150 mm
- Filter thread: M35.5 x 0.5
- Dimensions: 39.5 x 66 mm, 200 g
Specifications
| Distributed By | HTE Technologies, Sensors Incorporated |
|---|---|
| Brand | Moritex |
| Manufacturer Part Number | ML-U1217SR-18C |
| Selling Unit | Each |
