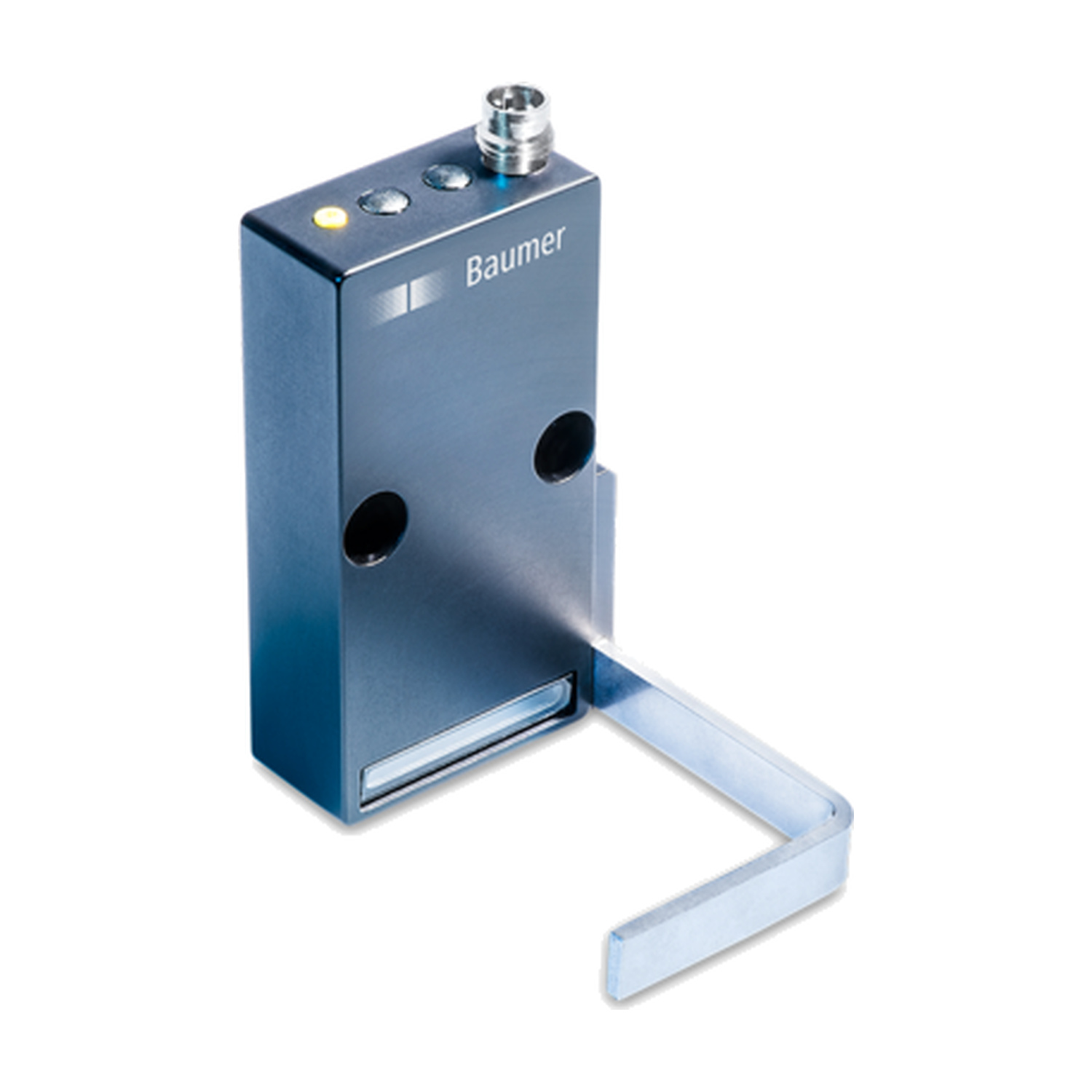

Baumer ParCon ZADM034I240.0001 Edge Sensor
Baumer ParCon ZADM034I240.0001 Edge Sensor
Description
The Baumer ParCon ZADM 034I240.0001 is an edge sensor that detects the edge of, or measures the width of, a moving web or strip using a pulsed infrared beam. It reports position as an analog current signal, and Teach-in setup lets it be taught to a reference edge on the line rather than programmed through a controller, which suits it to web-guiding and edge-position control on converting, printing and packaging lines.
- Measuring mode: edge and width detection
- Measuring field: 24 mm, up to 40 mm sensing distance
- Accuracy: better than 0.05 mm resolution, ±0.4 mm linearity
- Light source: pulsed infrared diode, 880 nm
- Supply voltage: 12 to 28 V DC, 120 mA max
- Output: 4 to 20 mA analog, Teach-in setup
- Connection: M8, 4-pin
- Protection rating: IP67, 0 to 55 °C operating temperature
Specifications
| Distributed By | HTE Technologies, Sensors Incorporated |
|---|---|
| Brand | Baumer |
| Series | Edge View |
| Manufacturer Part Number | ZADM034I240.0001 |
| Selling Unit | Each |
