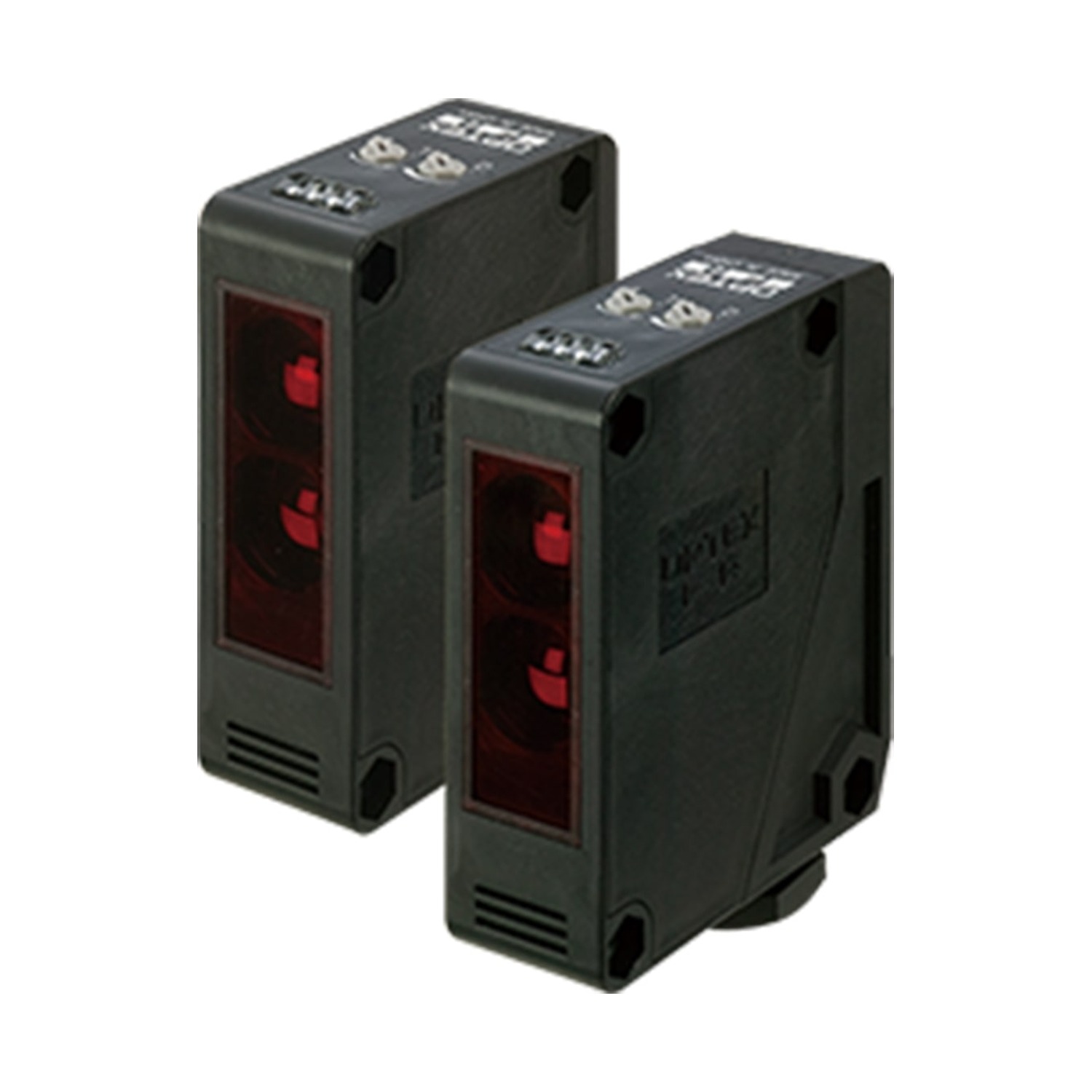

Optex FA V4 Universal Voltage Sensor

Series V4

Selling Unit Each

Description

The Optex FA V4 series is a universal-voltage photoelectric sensor with a built-in amplifier, offered in through-beam, retroreflective and diffuse-reflective configurations with a shared red-LED optical system. The universal-voltage relay models accept a wide AC or DC supply range so the same sensor wires into 24 V DC or 110/220 V AC control circuits without a separate power supply, and terminal block, cable or M12 connector versions cover different installation needs. It is used for general object and part-presence detection on production equipment.

Sensing mode: through-beam, retroreflective or diffuse
Sensing range: up to 70 m through-beam, up to 12 m retroreflective, up to 2 m diffuse
Supply voltage: 24 to 240 V AC/DC ±10% (relay models); 10 to 30 V DC (NPN/PNP models)
Output: relay (240 V AC / 30 V DC, 3 A) or NPN/PNP open collector (30 V DC, 100 mA)
Light source: red LED
Connection: terminal block, 2 m cable, or M12 4-pin connector
Protection rating: IP67
Housing: glass-fiber-filled ABS with polycarbonate front cover
