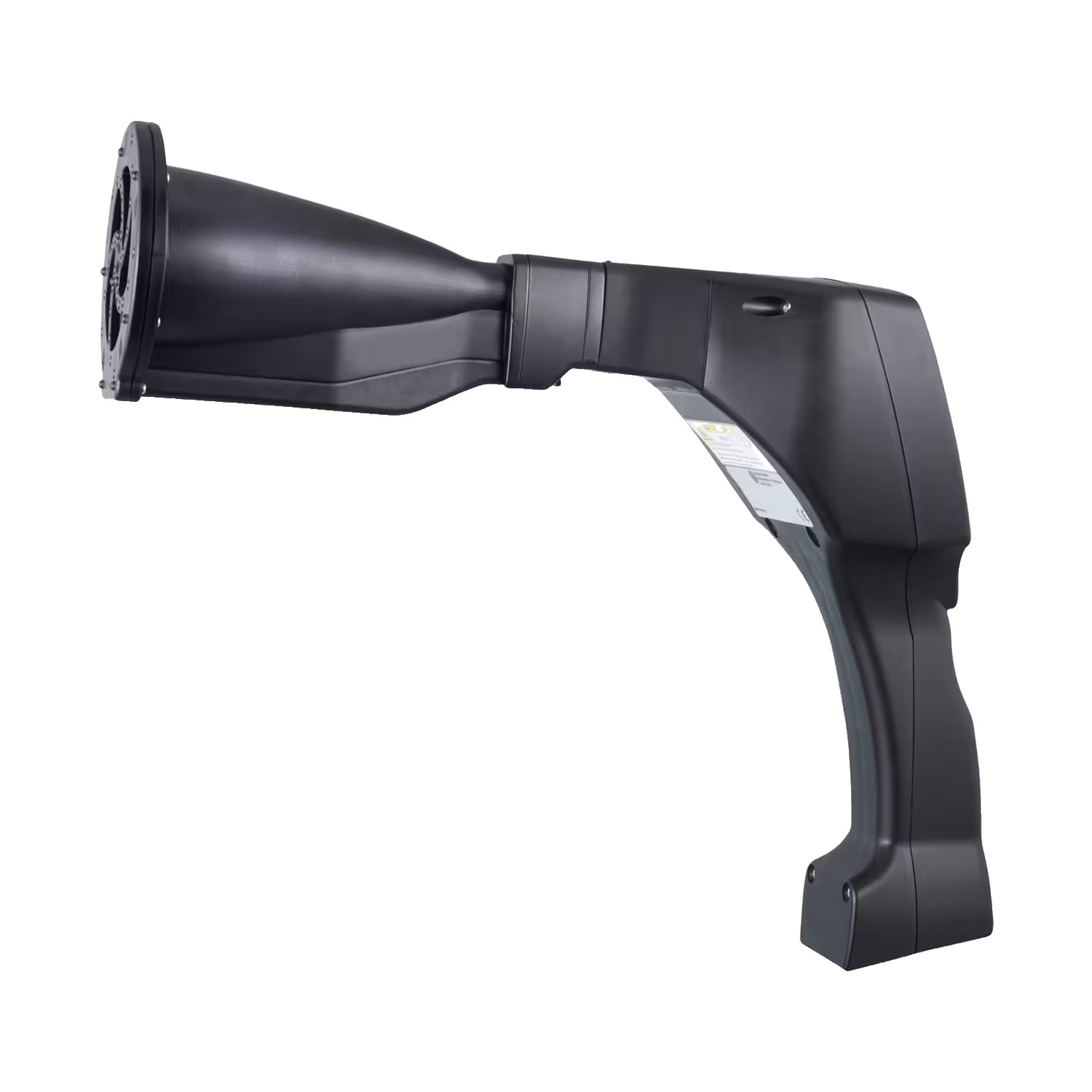

ifm SDL100 Ultrasound Leak Detection Camera
ifm SDL100 Ultrasound Leak Detection Camera
Description
The ifm SDL100 is a hand-held ultrasound camera that locates compressed air and gas leaks from a distance. A 30-element MEMS microphone array works at 40 kHz and overlays the sound source on a live camera image shown on a 3.5 in touchscreen. It detects leaks above 0.1 L/min at 5 m and 6 bar and runs about 6 hours on its rechargeable battery.
- Working frequency: 40 kHz ±2 kHz
- Detection threshold: greater than 0.1 L/min at 5 m distance and 6 bar pressure
- Accuracy: ±2 dB
- Acoustic sensor: 30 MEMS microphones
- Display: 3.5 in transmissive TFT touch panel
- Power: 7.4 V DC rechargeable lithium-ion battery, approximately 6 h operating time, 4 h maximum charge
- Interfaces: USB and WLAN; laser class 2, 645 to 660 nm
- Ambient temperature: -5 to 50 °C; protection rating IP20; dimensions 272 mm by 96.1 mm by 332 mm
Specifications
| Distributed By | JHFOSTER |
|---|---|
| Brand | ifm efector |
| Series | SDL |
| Manufacturer Part Number | SDL100 |
| Selling Unit | Each |
