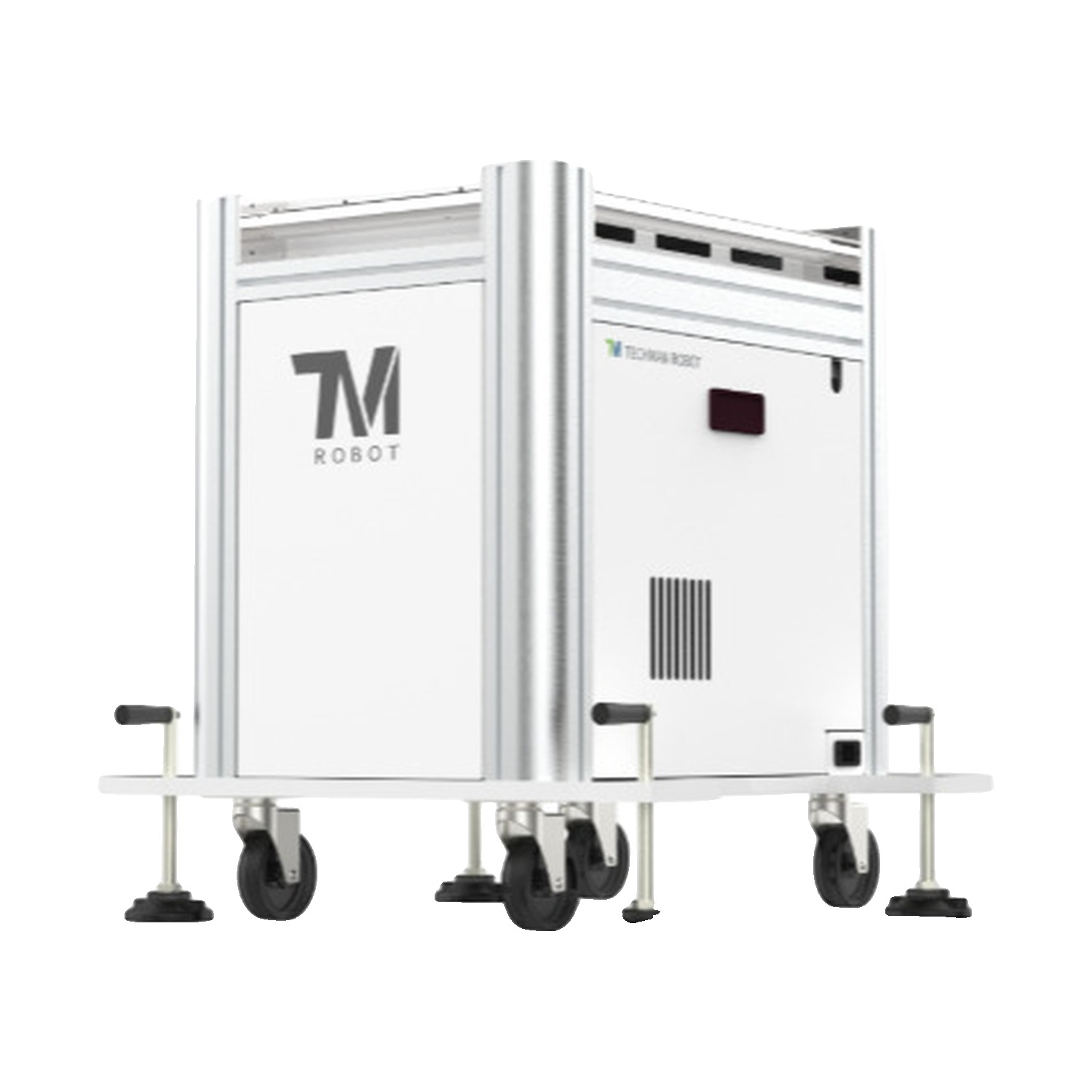

Techman Robot TM Mobile Workstation
Techman Robot TM Mobile Workstation
Description
The TM Mobile Workstation is a wheeled base that lets a Techman collaborative robot and its control box be moved between work cells and redeployed without re-anchoring. It is 700 mm wide and 800 mm high and accepts TM5 and TM7 series arms with an AC control box. With a robot mounted, up to 80 % of maximum robot speed is available at half maximum payload.
- Width: 700 mm
- Height: 800 mm
- Compatible robots: TM5-700, TM5-900, TM5S and TM7S
- Compatible control box: HW3.0, HW3.1, HW3.2 and HW5.0, AC version only
- Power cord: 16 A, 300 V, length 1830 ±5 mm
- Rated performance: up to 80 % of maximum robot speed at half maximum payload with the default acceleration rate (500 ms time to top speed)
Specifications
| Distributed By | Accu Tech USA |
|---|---|
| Brand | Techman Robot |
| Selling Unit | Each |
| Country of Origin | Taiwan |
| Color | White |
Resources
Related Products
Recently Viewed Products
-

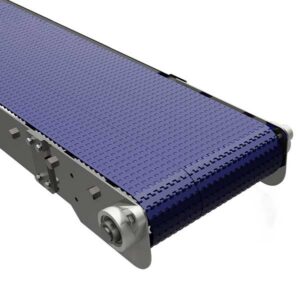

Assembly Tools & Material Handlingmk North America CMP-200 Series Stainless Steel Plastic Modular Belt Conveyor
