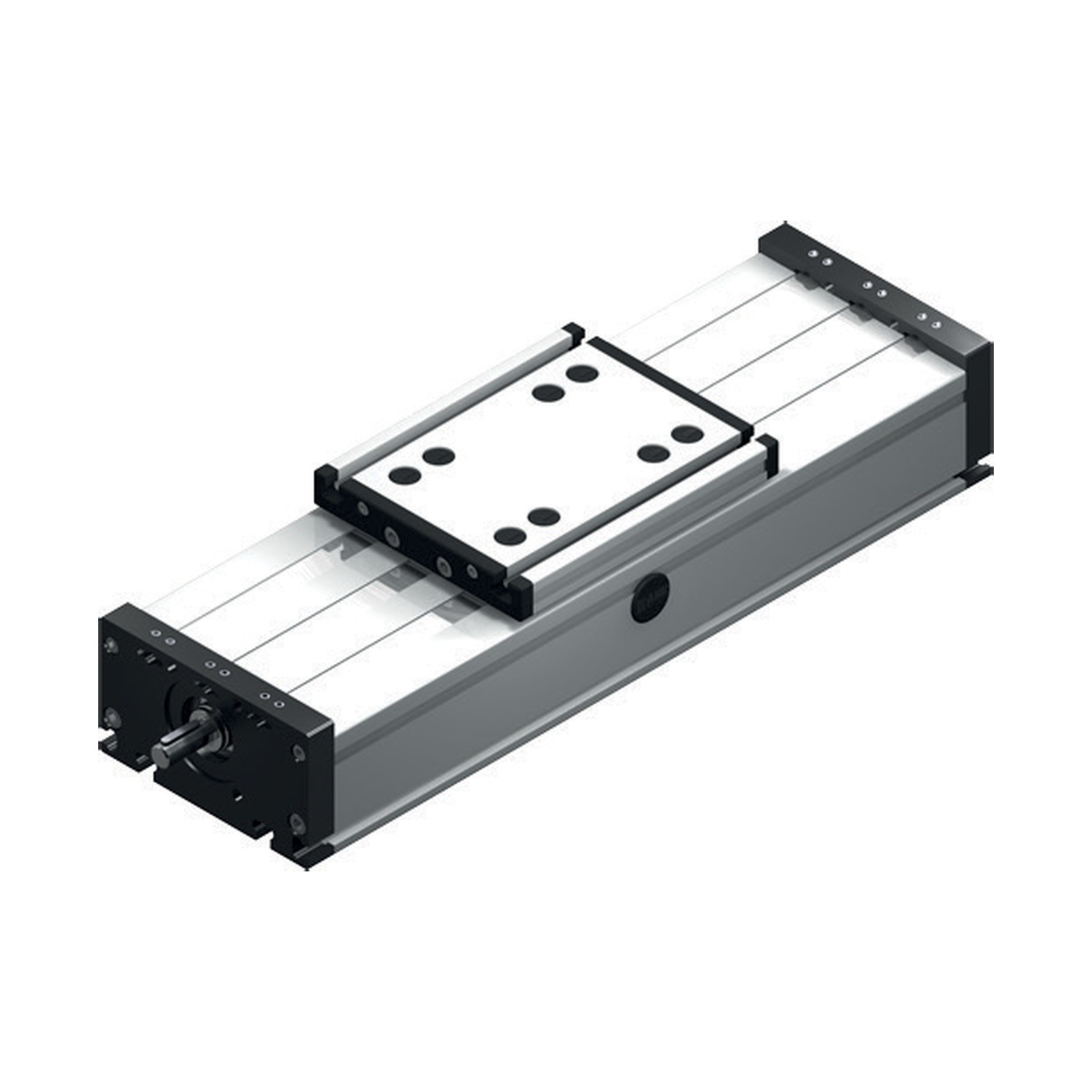

IMI Norgren DST/DSK Series Linear Axis Actuator
IMI Norgren DST/DSK Series Linear Axis Actuator
Description
Spindle driven Linear Axis with a rectangular, Aluminum profile.
- Twin integrated rail guides ensure this range is suitable for applications handling exceptionally heavy loads
- The carriage is driven by means of a rotating spindle with leading nut
- The leading-nut receiver can be used to adjust the symmetry of the carriages where two linear units are used in parallel or where twin carriages are mounted
- The openings of the guide body are sealed with stainless steel cover bands providing protection against splash water and dust ingress (cover bands are optional)
For Heavy Duty Industrial Applications
This unit consists of a rectangular aluminum profile with 2 integrated rail guides. The carriage is driven by means of a rotating spindle with leading nut. Where two parallel linear units are used or where two carriages are mounted on one unit, the leading-nut receiver can be used to adjust the symmetry of the carriages. The openings of the guide body are sealed with 3 stainless steel cover bands to protect the drive from splash water and dust.
- Frame Sizes: 120 – 160 – 200 mm
- Max Length: 3000 mm
- Speed: ± 1 m/s (K); ± 0.4 m/s (T)
- Max Payload: 8000 N
- Accuracy: ± 0.025 mm (K); ± 0.2 mm (T)
Specifications
| Distributed By | Accu Tech USA |
|---|---|
| Manufacturer Name | IMI Norgren |
| Series | DST/DSK |
| Selling Unit | Each |
| Country of Origin | Germany |
| Color | Silver |
| Material | Aluminum |
| Drive Mechanism | Ball Screw |
