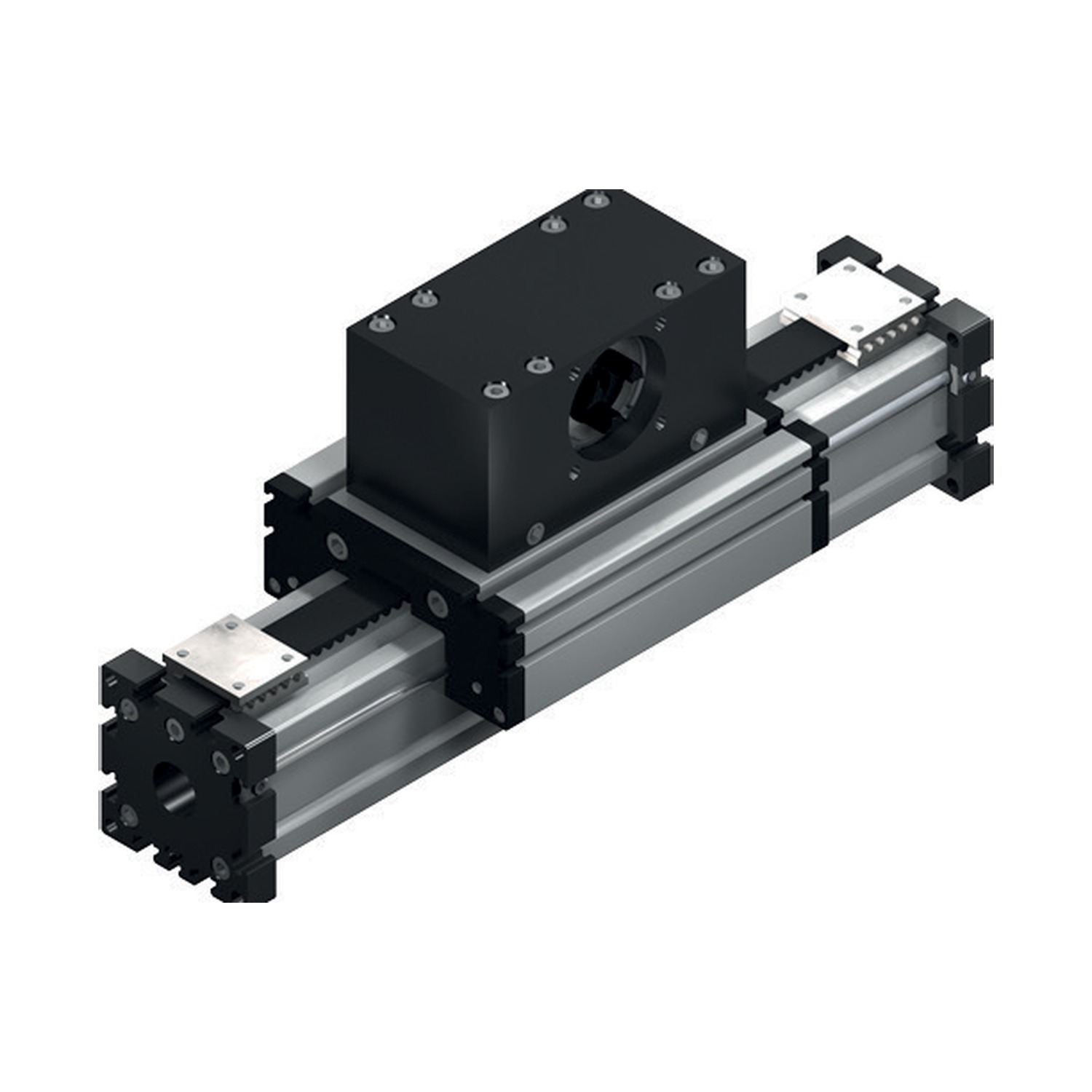

IMI Norgren ELSZ Series Linear Axis Actuator
IMI Norgren ELSZ Series Linear Axis Actuator
Description
Toothbelt driven Linear Axis range with a square, Aluminum profile and hardened Steel guide rods.
- Omega belt system provides flexibility with mounting, making this range ideally suited for vertical installations
- The carriage runs on internal linear ball bearings that can be adjusted free of play
- The pulleys have maintenance-free ball bearings
- Belt tension is adjusted via simple screw adjustment device in carriage
- Alternative versions available with widened belt for higher load capacity
For Standard Industrial Applications
This linear unit consists of an aluminum square profile with hardened steel guide rods. The carriage, which has internal linear ball bearings that can be adjusted free of play, is driven along the guide rods by a timing belt. The pulley has maintenance-free ball bearings. Belt tension can be readjusted by a simple tensioning device in one of the end blocks. This device can also be used for symmetrical adjustment of two or more linear units running parallel.
- Frame Sizes: 30 – 40 – 60 – 80 – 100 – 125 mm
- Max Length: 6 m (standard); 20 m (with axes joined in series)
- Speed: 10 m/s; ATEX: 1 m/s
- Max Payload: 5750 N
- Accuracy: ± 0.1 mm
Specifications
| Distributed By | Accu Tech USA |
|---|---|
| Manufacturer Name | IMI Norgren |
| Series | ELSZ |
| Selling Unit | Each |
| Country of Origin | Germany |
| Color | Silver |
| Material | Aluminum |
| Drive Mechanism | Belt Drive |
