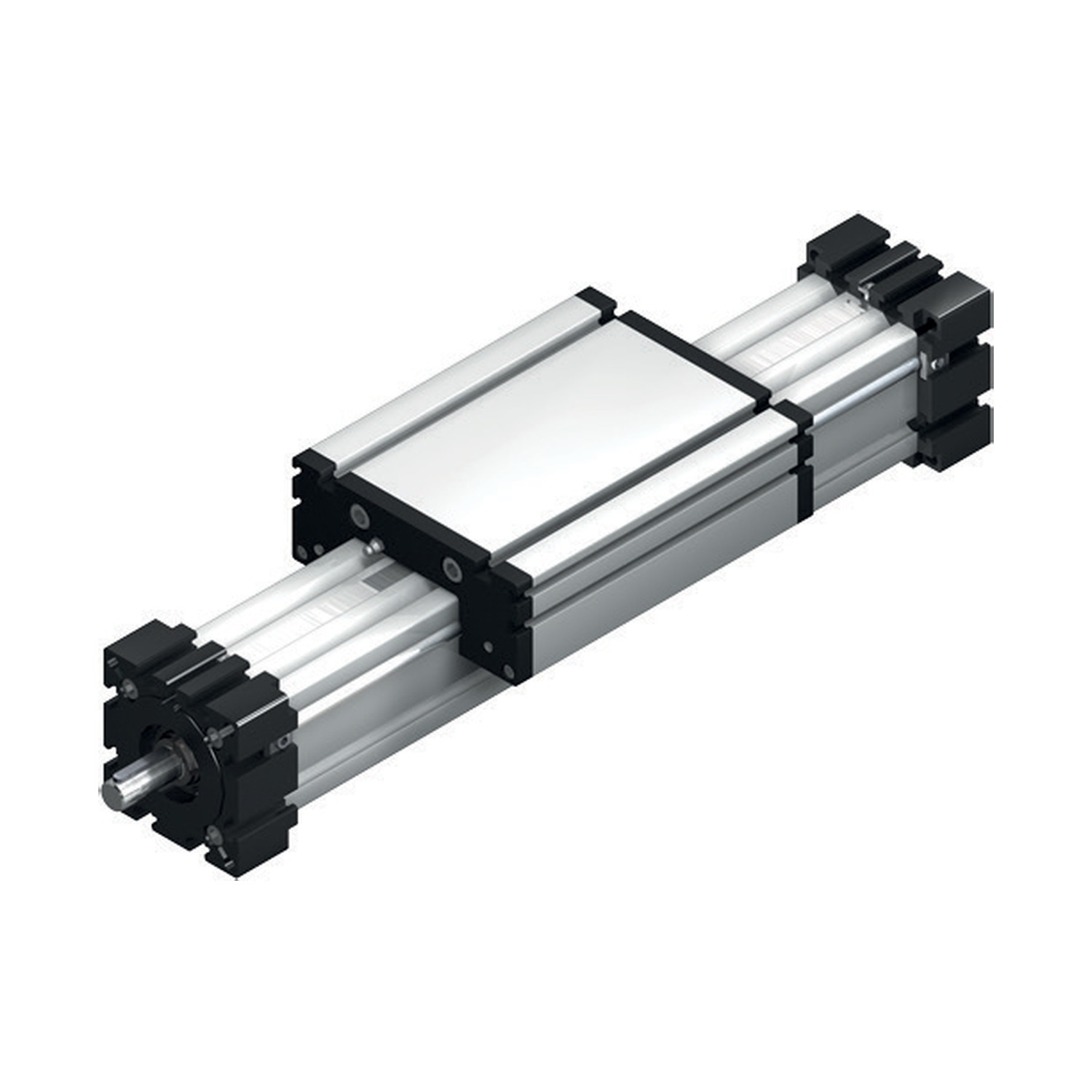

IMI Norgren ELT/ELK Series Linear Axis Actuator
IMI Norgren ELT/ELK Series Linear Axis Actuator
Description
Spindle driven Linear Axis range with a square, Aluminum hollow section with integrated, parallel, ground and hardened Steel guide rods.
- The carriage is driven by a rotating trapezoidal/ball screw threaded spindle connected to the carriage by a ball nut
- The carriage has play-adjustable ball-bearing rollers which engage with the guide rods
- The connecting slot between carriage and ball nut is covered by a stainless steel strip providing protection against splash water and dust ingress
- Lateral adjustment of movement for parallel units, or where twin carriages are mounted, is provided by the ball nut mounting
For Standard Industrial Applications
This linear unit consists of an aluminum hollow section with integral, parallel ground and hardened steel guide rods. The carriage has play-adjustable ball-bearing rollers which engage with the guide rods. The rotating trapezoidal/ballscrew causes linear motion of the ballnut, which is connected to the carriage. The slot necessary for this is covered by a stainless steel strip, making the unit dust- and splash-proof. Lateral adjustment of movement for parallel units, or when two carriages are mounted on one unit, is provided by the ballnut mounting.
- Frame Sizes: 30 – 40 – 60 – 80 – 125 mm
- Max Length: 3000 mm
- Speed: ± 1 m/s (K); ± 0.4 m/s (T)
- Max Payload: 12000 N
- Accuracy: ± 0.025 mm (K); ± 0.2 mm (T)
Specifications
| Distributed By | Accu Tech USA |
|---|---|
| Manufacturer Name | IMI Norgren |
| Series | ELT/ELK |
| Selling Unit | Each |
| Country of Origin | Germany |
| Color | Silver |
| Material | Aluminum |
| Drive Mechanism | Ball Screw |
