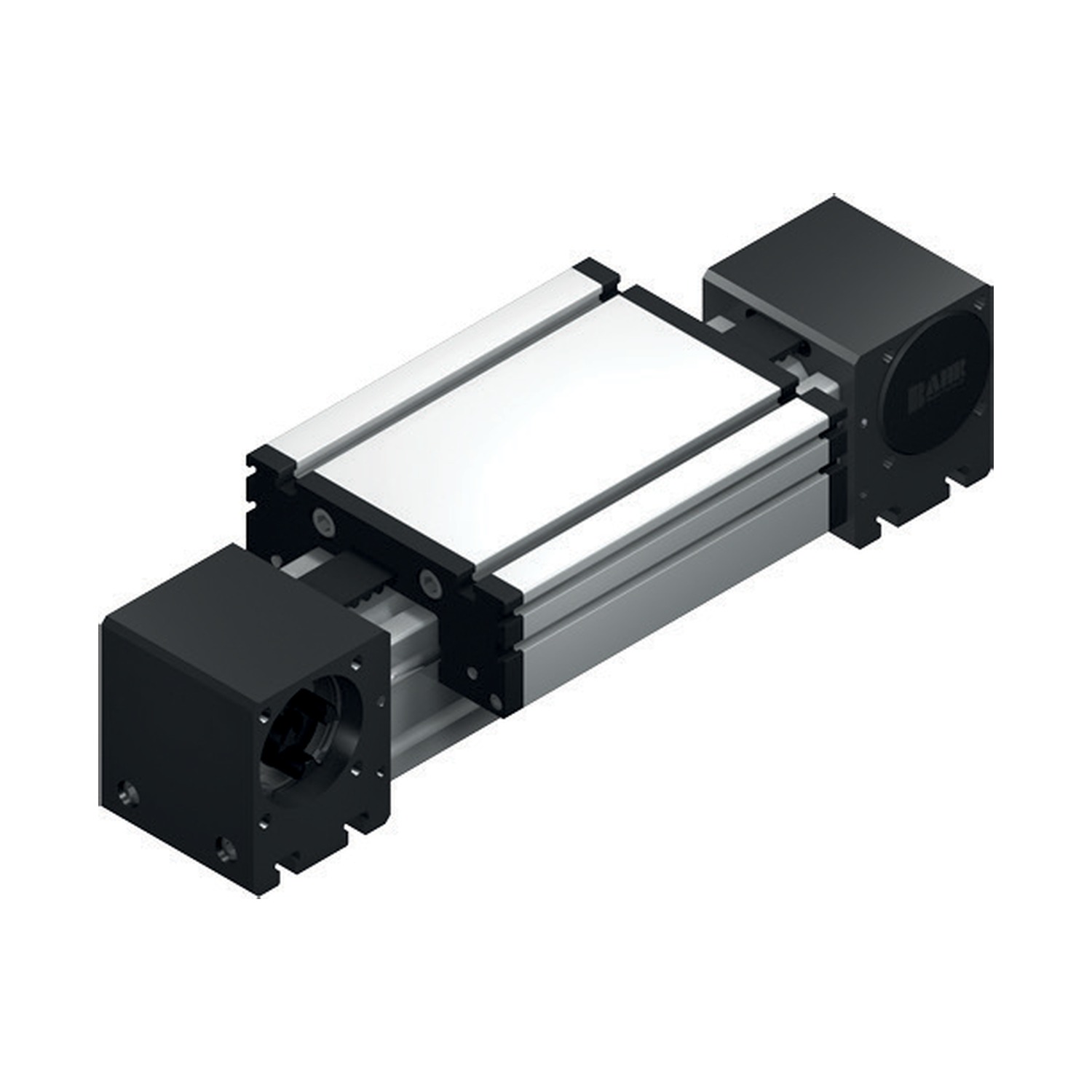

IMI Norgren ELZ Series Linear Axis Actuator
IMI Norgren ELZ Series Linear Axis Actuator
Description
Tooth belt driven Linear Axis range with a square, Aluminum profile and integrated hardened Steel guide rods.
- The carriage runs on internal linear ball bearings that can be adjusted free of play
- The pulleys have maintenance-free ball bearings
- Belt tension is adjusted via simple screw adjustment device in carriage
- Multiple units can be assembled in series to achieve extended strokes
- Carriage can be customized to include extensions and accessories mounted within the profile
- NORDKAP certified and ATEX rated versions available
For Standard Industrial Applications
This linear unit consists of an aluminum square profile with integrated, hardened steel guide rods. The carriage, which has internal linear ball bearings that can be adjusted free of play, is driven along the guide rods by a timing belt. The pulleys have maintenance-free ball bearings. Belt tension can be readjusted by a simple screw adjustment device in the carriage. This device can also be used for symmetrical adjustment of two or more linear units running parallel. With this series, multi-part assembled units with long strokes can be realized.
- Frame Sizes: 30 – 40 – 60 – 80 – 100 – 125 mm
- Max Length: 6 m (standard); 20 m (with axes joined in series)
- Speed: 10 m/s; ATEX: 1 m/s
- Max Payload: 5750 N
- Accuracy: ± 0.1 mm
Specifications
| Distributed By | Accu Tech USA |
|---|---|
| Manufacturer Name | IMI Norgren |
| Series | ELZ |
| Selling Unit | Each |
| Country of Origin | Germany |
| Color | Silver |
| Material | Aluminum |
| Drive Mechanism | Belt Drive |
