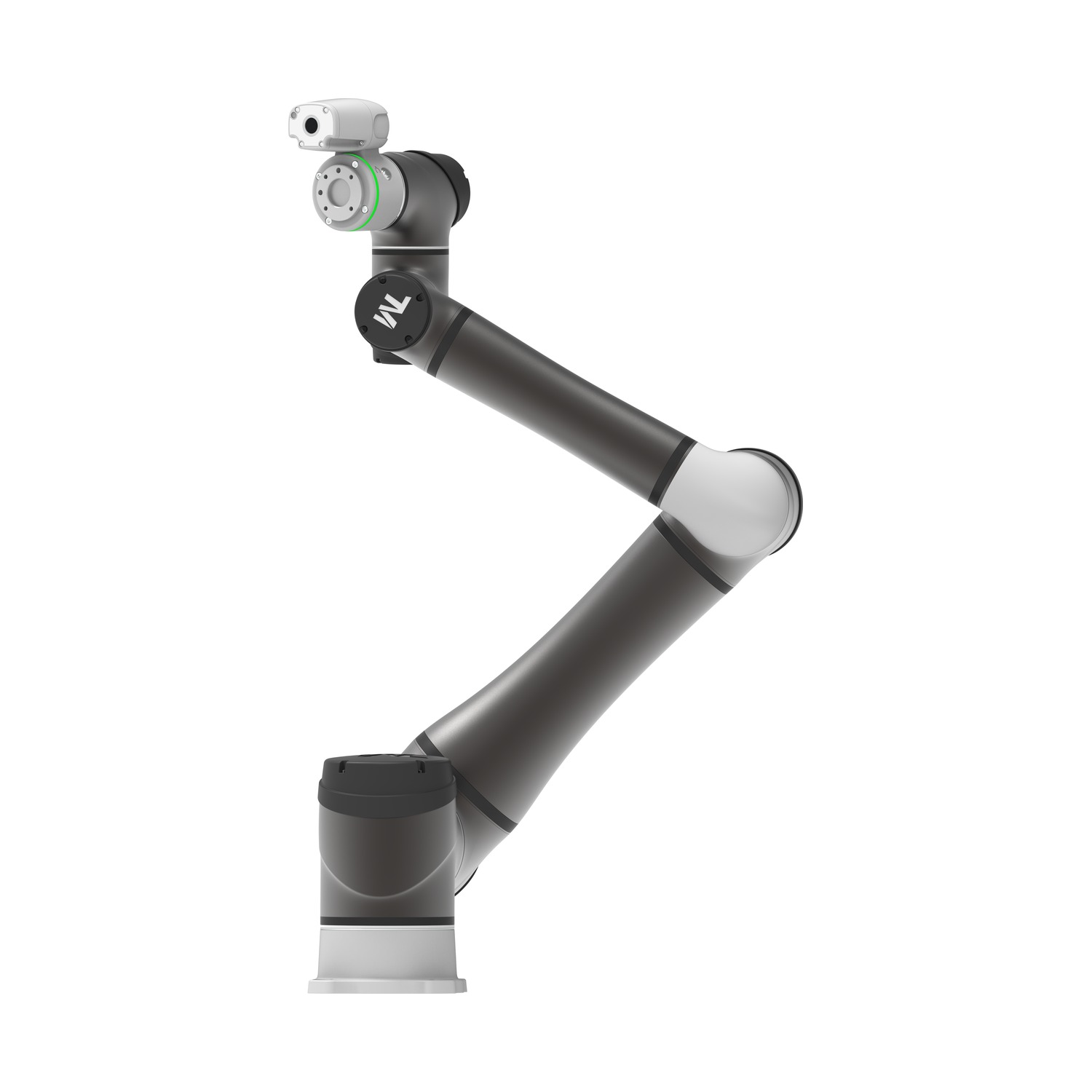

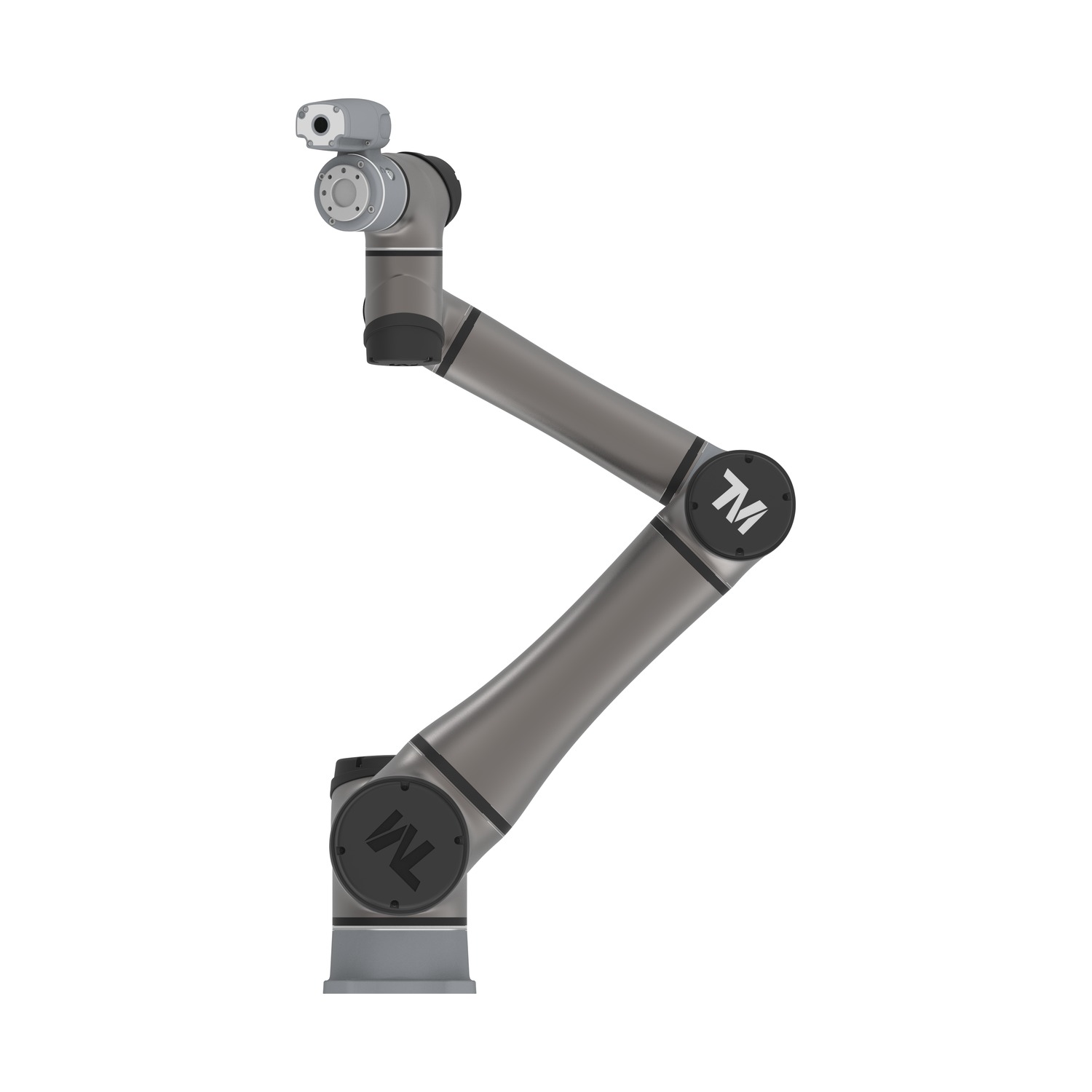

The Techman Robot TM14S is a higher-payload model in the TM AI Cobot S Series, balancing a 14 kg payload with a 1100 mm reach for heavier-duty collaborative automation. Built on Techman’s AI-native collaborative platform, it delivers integrated machine vision, fast deployment and collaborative safety for productive machine tending, handling and assembly.

Key specifications:
• Maximum payload: 14 kg
• Maximum reach: 1100 mm
• Repeatability: +/- 0.03 mm
• Degrees of freedom: 6 rotating joints
• Maximum TCP speed: 4.5 m/s
• Approximate arm weight: 33.0 kg

Platform and software:
• Built-in AI vision system offering classification, object detection, segmentation, anomaly detection and AI OCR, plus 1D/2D barcode reading and an auto-focused 5 MP color camera
• Programmed with TMflow flowchart-based software, with TMscript and TMcraft available for scripting and advanced developer control
• Communicates over RS-232/RS-422/RS-485, Ethernet and Modbus TCP/RTU, with optional PROFINET, EtherNet/IP, EtherCAT and CC-Link network cards
• Control box I/O: 16 digital in / 16 digital out and 2 analog in / 2 analog out; tool I/O: 3 digital in / 3 digital out
• IP65-rated robot arm and IP54-rated control box; operating temperature 0 to 50 C; ISO Class 3 cleanliness
• Certified to TUV ISO 13849-1, ISO 10218-1 and ISO/TS 15066, plus SGS UL1740 and CAN/CSA Z424-14; NSF/ANSI 169 and SEMI S2 available as options

Typical applications:
• Machine tending, material handling, assembly and packaging

Distributed By	Accu Tech USA
Manufacturer Name	Techman Robot
Series	TM14S
Selling Unit	Each
Country of Origin	Taiwan
Color	Black
Subtype	Collaborative Robot (Cobot)
Input Voltage	100-240V AC
Maximum Payload (lb)	30.86
Maximum Payload (kg)	14.00
Maximum Reach (mm)	1,100.00
Degrees of Freedom	6-Axis
Repeatability	± 0.03 mm
Integrated Vision System	Yes
IP Rating	IP65
