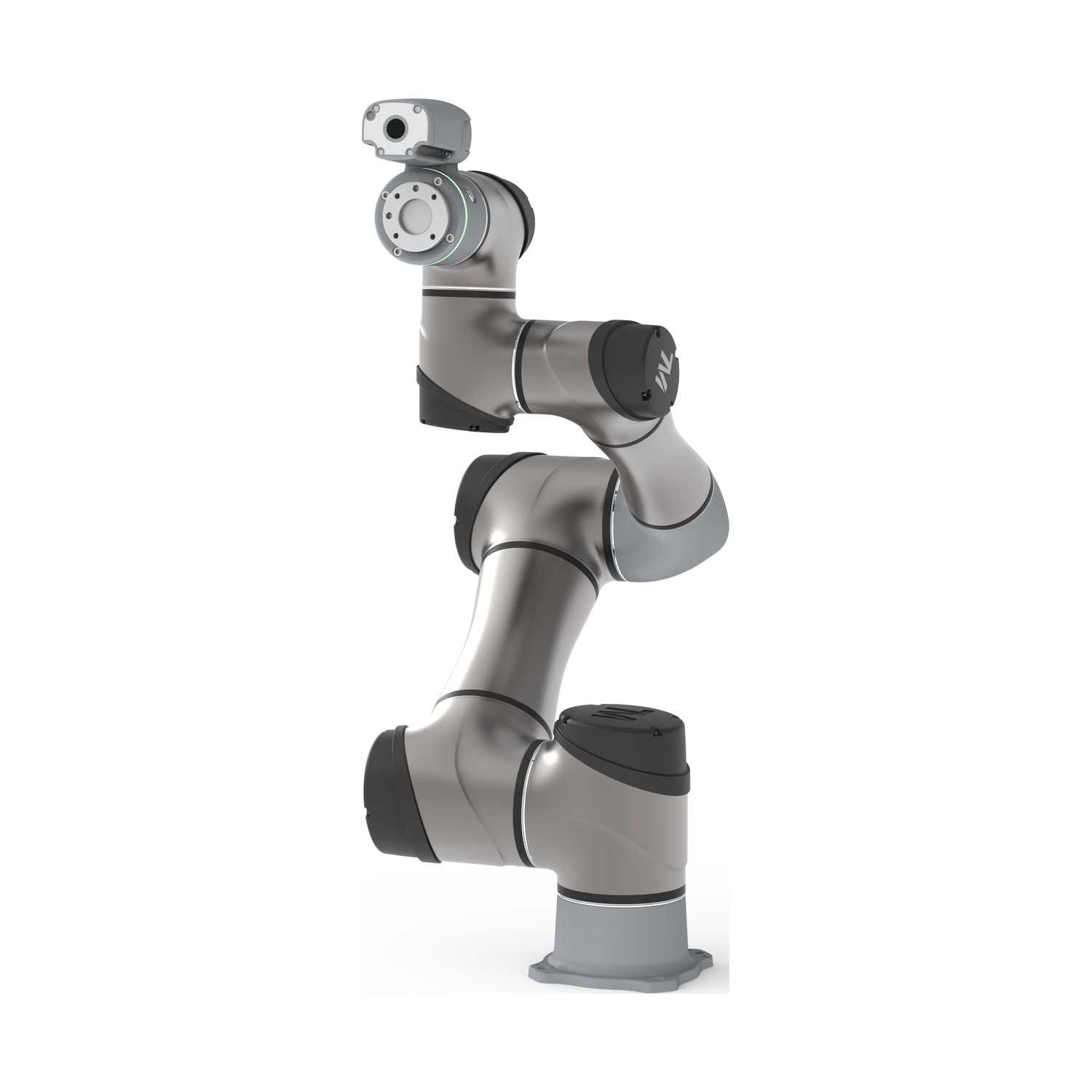

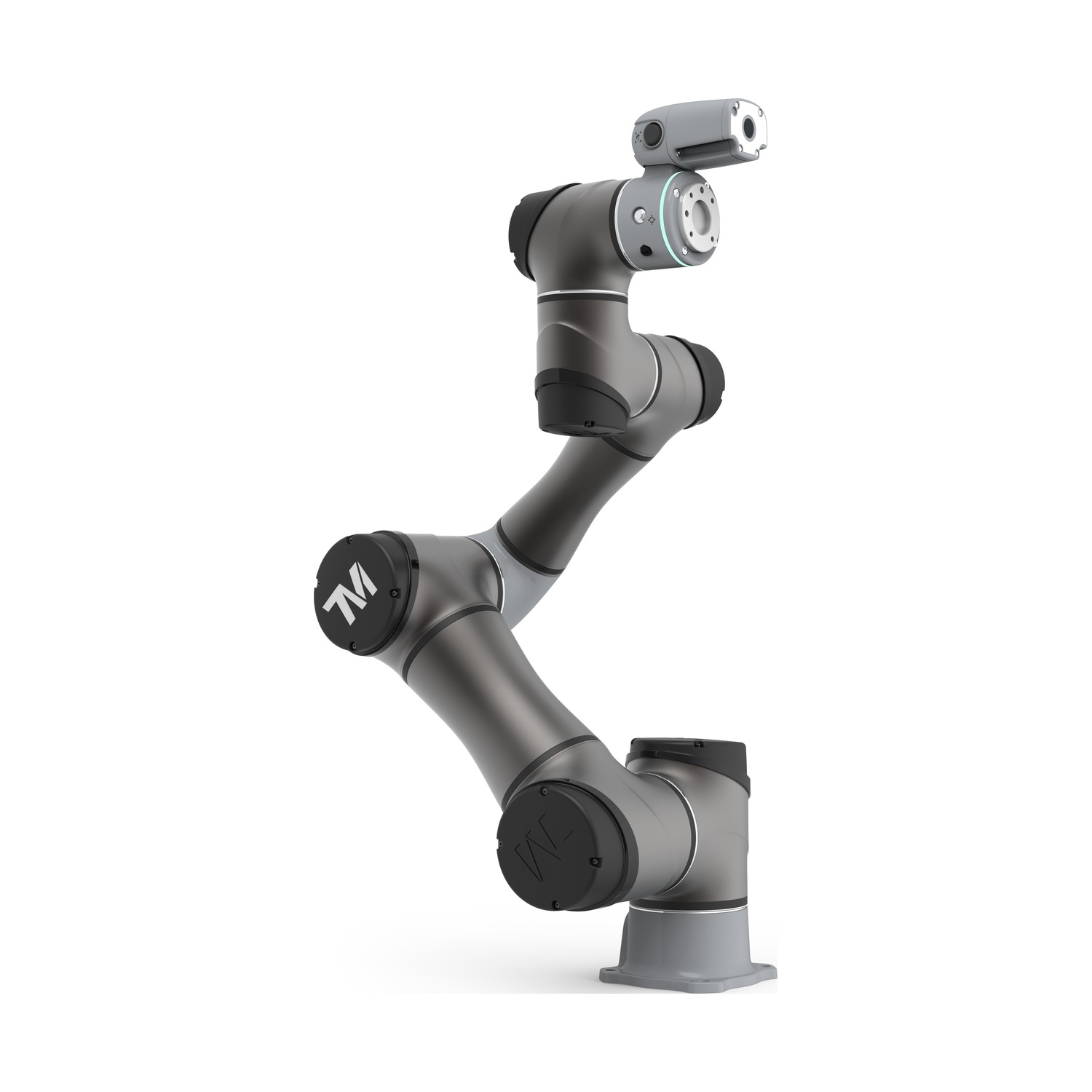

Techman Robot TM7S Series Cobot
Techman Robot TM7S Series Cobot
Description
The Techman Robot TM7S is a compact, high-density model in the TM AI Cobot S Series, delivering a 7 kg payload within a short 758 mm reach for an excellent payload-to-footprint ratio. Built on Techman’s AI-native collaborative platform, it is designed for dense, space-constrained workcells where a strong, precise arm is needed in a small envelope.
Key specifications:
• Maximum payload: 7 kg
• Maximum reach: 758 mm
• Repeatability: +/- 0.03 mm
• Degrees of freedom: 6 rotating joints
• Maximum TCP speed: 4.5 m/s
• Approximate arm weight: 22.9 kg
Platform and software:
• Built-in AI vision system offering classification, object detection, segmentation, anomaly detection and AI OCR, plus 1D/2D barcode reading and an auto-focused 5 MP color camera
• Programmed with TMflow flowchart-based software, with TMscript and TMcraft available for scripting and advanced developer control
• Communicates over RS-232/RS-422/RS-485, Ethernet and Modbus TCP/RTU, with optional PROFINET, EtherNet/IP, EtherCAT and CC-Link network cards
• Control box I/O: 16 digital in / 16 digital out and 2 analog in / 2 analog out; tool I/O: 3 digital in / 3 digital out
• IP65-rated robot arm and IP54-rated control box; operating temperature 0 to 50 C; ISO Class 3 cleanliness
• Certified to TUV ISO 13849-1, ISO 10218-1 and ISO/TS 15066, plus SGS UL1740 and CAN/CSA Z424-14; NSF/ANSI 169 and SEMI S2 available as options
Typical applications:
• Compact machine tending, assembly, pick-and-place and inspection in tight workspaces
Specifications
| Brand | Techman Robot |
|---|---|
| Series | TM7S |
| Selling Unit | Each |
| Country of Origin | Taiwan |
| Color | Black |
| Subtype | Collaborative Robot (Cobot) |
| Input Voltage | 100-240 VAC |
| Maximum Payload (lb) | 15.43 |
| Maximum Payload (kg) | 7.00 |
| Maximum Reach (mm) | 758.00 |
| Degrees of Freedom | 6-Axis |
| Repeatability | ± 0.03 mm |
| Integrated Vision System | Yes |
| IP Rating | IP65 |
