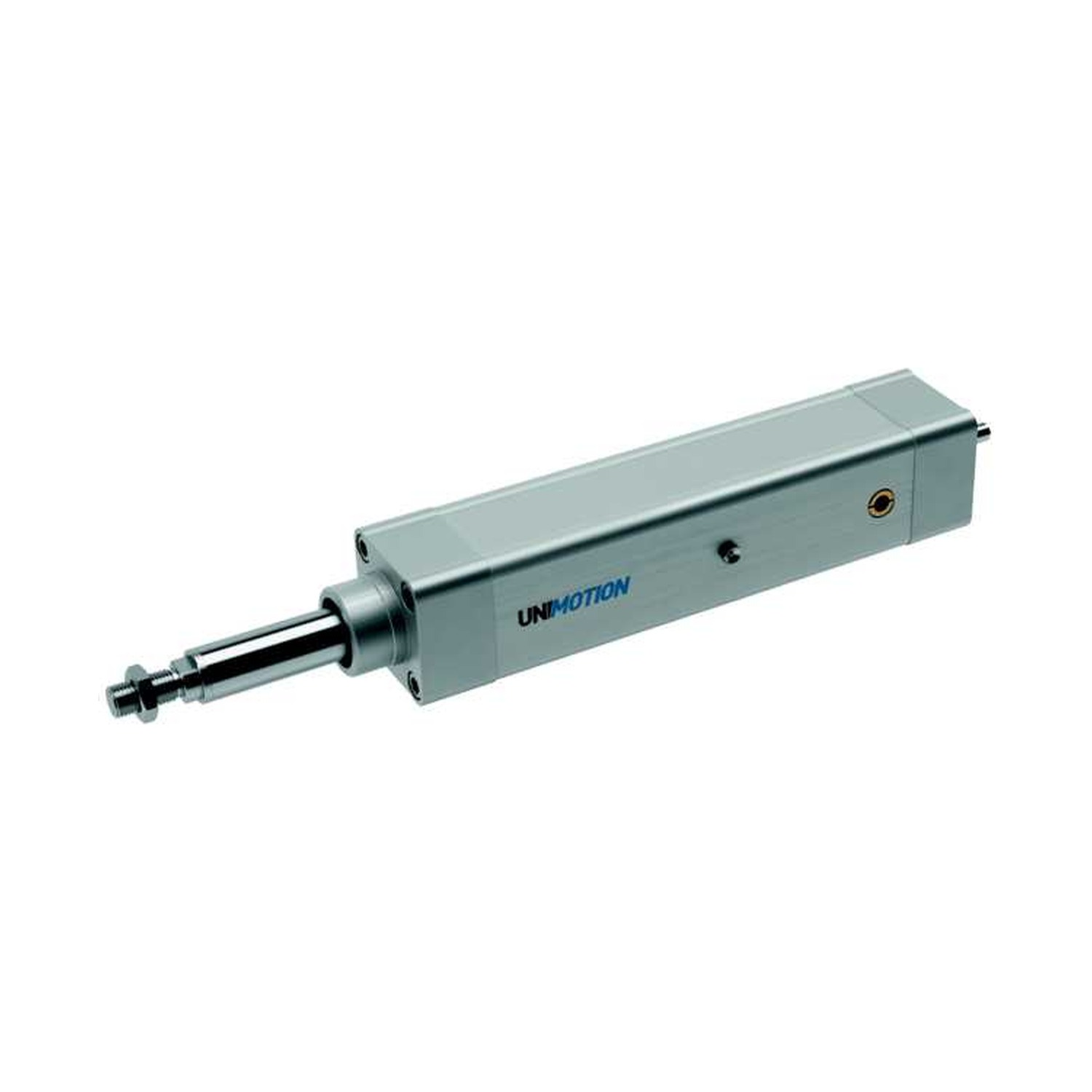

Unimotion PNCE Series Actuator
Unimotion PNCE Series Actuator
Description
The PNCE electric cylinder actuator, developed by Unimotion, combines a precision ball screw drive nested in a standard ISO 15552 package to create a cost-effective alternative to pneumatic solutions.
- 6 Frame Sizes (32, 40, 50, 63, 80, 100)
- Custom Stroke Lengths
- Ball Screw Lead Options From 5mm to 50mm
- High Precision, Low Backlash
- IP54 Rated. IP65, Corrosion Resistant and Food Industry Versions Available
- Wide Range of ISO 15552 Compatible Accessories
- In-line or Parallel Motor Mounting
The PNCE electric cylinder combines the strength and precision of a ball screw actuator in an ISO 15552 package, making it an effective option for many applications. The improved efficiency and flexibility of an electric system, as well as the ability to use standard ISO accessories, are of great benefit for those looking to move away from pneumatic systems. The PNCE is available with a multitude of options including male or female rod ends, upgraded seal options, and corrosion resistant version and accessories.
High accuracy and repeatability
High Lead (20×20, 25×25, 32×32, 40×40)
Custom Stroke Lengths
High Speed
Reduced Backlash (Preload available upon request)
Durable Seals to protect the cylinder from dust, water, and other contaminants
ISO Sizes: 32, 40, 50, 63, 80, 100
Screw Diameters: 12-40mm
Specifications
| Distributed By | Accu Tech USA |
|---|---|
| Manufacturer Name | Unimotion |
| Series | PNCE |
| Selling Unit | Each |
| Country of Origin | Taiwan |
| Color | Gray |
| Material | Aluminum |
| Drive Mechanism | Ball Screw |
