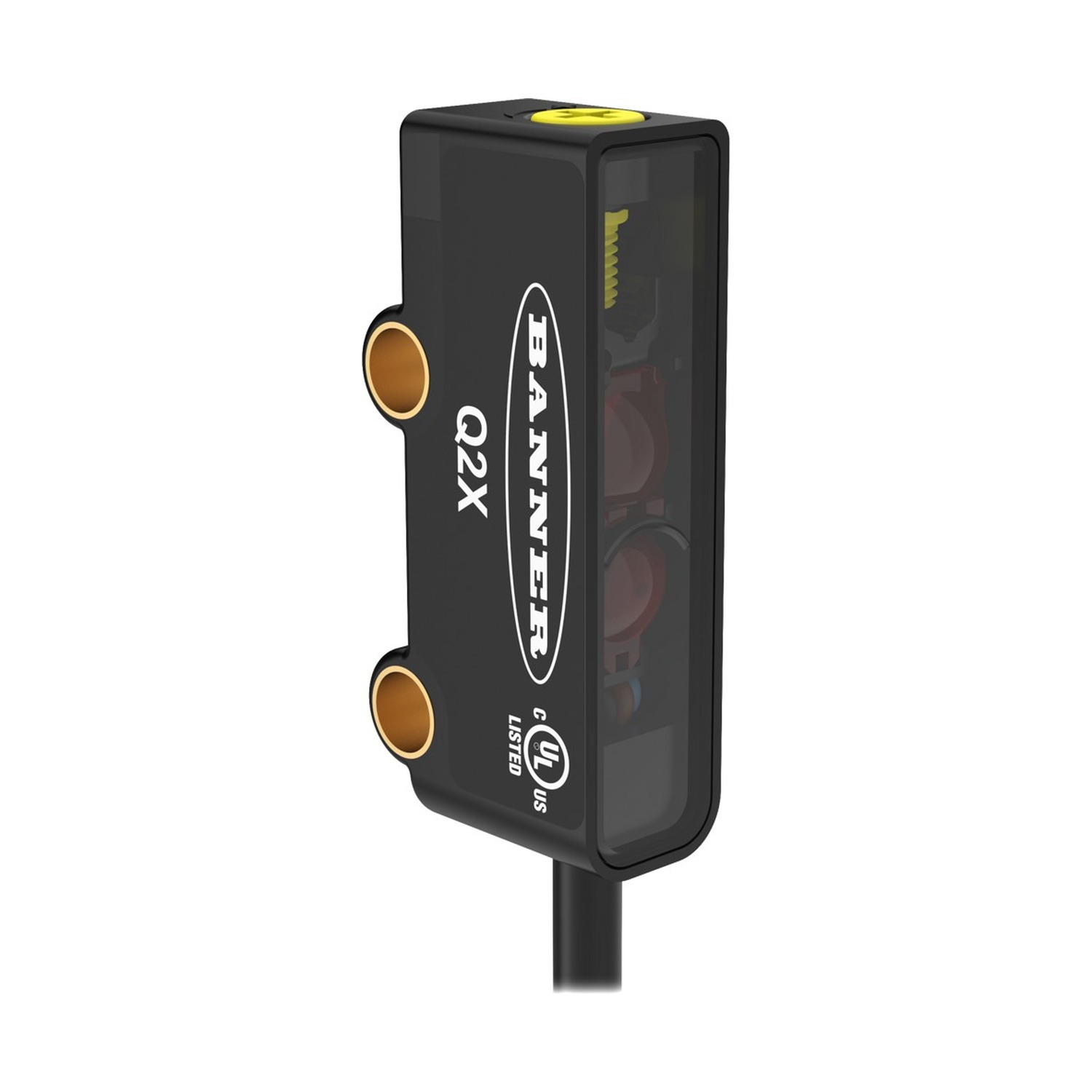

Banner Engineering Q2X Miniature Photoelectric Sensor

Series Q2X

Selling Unit Each

Description

The Banner Engineering Q2X is a miniature photoelectric sensor series housed in a compact 31 x 11.3 x 8 mm body, offered in fixed-field, adjustable-field, laser measurement, polarized retroreflective and opposed sensing modes to fit different detection jobs in tight machine spaces. Range depends on the mode selected, from a 15 mm fixed cutoff up to 3.3 m for opposed and polarized retroreflective models, and laser measurement models add IO-Link for remote configuration. Outputs are available in PNP, NPN or bipolar configurations.

Sensing modes: fixed-field, adjustable-field, laser measurement, polarized retroreflective, opposed
Sensing range: 15 mm to 3.3 m, depending on mode
Supply voltage: 10 to 30 V DC
Output: PNP, NPN, or bipolar (1 NPN + 1 PNP)
Communication: IO-Link on laser measurement models
Connection: 2 m cable, or M8/M12 pigtail (150 mm)
Housing rating: IP67
